Australian Cat6 4G LTE-A Outdoor Router MIMO Wi-Fi
Australian 4G LTE-Advanced outdoor router. MIMO 4G and MIMO Wi-Fi 300Mbps. Designed for use in remote areas. Provide Wi-Fi and Ethernet through 3G/4G mobile networks. Powered by <300-feet LAN cable. OpenWrt firmware inside.
• LTE-Advanced 4G modem for use in Australia.
• MIMO Wi-Fi with 25~27dBm booster. Covers 150~300 yards radius.
• Wi-Fi speed is up to 300Mbps and supports 57 concurrent users.
• PoE power over Ethernet. Support 48Volt PoE switches.
• IP67 rated. Withstand extreme weathers & rugged deployments.
• Guarantee 15-day money back.
Out of stock
Cat6 LTE-Advanced 4G Modem
MIMO 3G/4G modem with high sensitivity
Download speed up to 300Mbps
Australian standard frequencies
4G LTE band B1/3/5/7/8/20/28/32Rx/38/40/41
2.4G MIMO Wi-Fi with Booster
2T2R MIMO Wi-Fi and high-gain antennas
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 150~300yd radius
Support up to 57 concurrent Wi-Fi users
PoE (power over Ethernet)
PoE support IEEE 802.3af/at
PoE injector included, work with 48V PoE switch
Support <300-feet PoE LAN cable
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Intergrated surge protection
Australian 4G Mobile Modem
The Australian 4G Router uses Quectel EP06E mobile broadband modem which takes 2pcs 4G antennas and delivers 300Mbps downlink and 50Mbps uplink data rates.
The LTE-A Cat6 broadband mobile modem is designed to use in Australia and also support roaming in Europe, Africa, and Asia. The cellular modem supports major mobile carriers in Australia. Besides 4G FDD-LTE and 4G TDD-LTE, it also supports 3G WCDMA mobile networks.
The 4G LTE-A cellular modem is certificated by CE / RCM / GCF / Deutsche.
* The SIM card is excluded.
2.4G MIMO Wi-FI with Booster
Integrated with 25~27dBm Wi-Fi booster, the Australian 4G Router covers up to 150~300 yards radius in outdoor open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provides high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, setup firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
PoE – Power over Ethernet Cable
Powered by PoE (power over Ethernet), you only need one LAN cable for both power and data. Supports 802.3af/at PoE standards, you can power up the outdoor router with 48Volt PoE switches over as long as 300-feet LAN cable.
The default 48Volt PoE injector and 30-feet LAN cable are included in the package.
IP67 Rated Waterproof Protection
Ideal to deploy in rural areas such as the park, coast, camping site, construction site and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and capable of withstanding water immersion above 3-feet for 30 minutes.

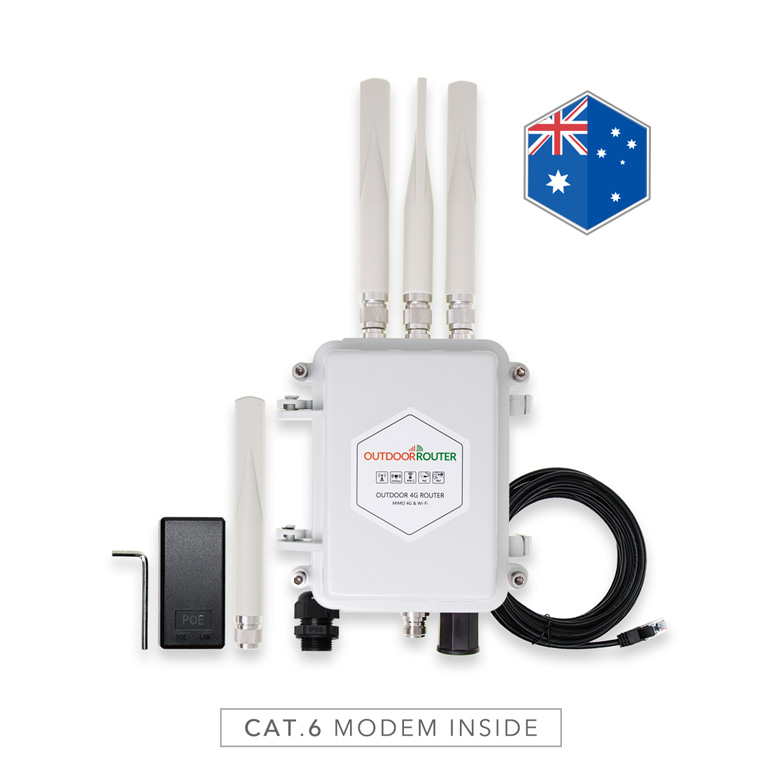

What Will You Get in the Package
1 x Cat6 4G Outdoor Router
4 x Omni Antenna
1 x 30-feet LAN Cable
1 x 48V PoE Injector
1 x Mounting Set & Tool
1 x SIM Card Adapter
Y6U Y6E & Y6O - Cat.6 LTE-A Mobile Modem
|LTE Category:||CAT.6 (3GPP E-UTRA Release 11)|
|4G FDD Bands:||B1/B3/B5/B7/B8/B20/B28/B32Rx
Download max 300Mbps / Upload max 50Mbps
|4G TDD Bands:||B38/B40/B41
Download max 260Mbps / Upload max 28Mbps
B20+B32Rx | B38+B38
B40+B40 | B41+B41
DC-HSDPA: DL Max 42Mbps
HSUPA: UL Max 5.76Mbps
WCDMA: DL 384Kbps / UL 384Kbps
|Support Antenna:||DL MIMO, supports Rx-diversity|
|Temperature:||Working: -40°C ~ +80°C|
|Working Area:||EMEA: Europe, the Middle East and Africa
APAC: Asia-Pacific (Excluding Japan and CMCC)
|Certification:||CE / RCM / GCF / Deutsche|
|CPU:||Qualcomm Atheros QC9531|
|SIM Card:||Standard SIM card (25x15mm) **Exclude**|
|LAN Port:||1x10/100Mbps RJ45 port on PoE injector|
|Indicator:||Power & system|
|Consumption:||< 3 Watt|
|Temperature:||Working: -30 to 80°C
Storage: -50 to 95°C
|4G Omni Antenna:||Frequency: 698~960 / 1710~2700MHz
Gain: 3~4dBi / V.S.W.R.: ≤ 2.5
|Wi-Fi Antenna:||Frequency: 2400~2500MHz
Gain: 5dBi / V.S.W.R.: ≤ 2.5
|Max Input power:||10 Watt|
|Wi-Fi standards:||IEEE 802.11 b/g/n & IEEE 802.3u|
|Transmission rate:||300Mbps by 2T2R MIMO Wi-Fi|
|Bandwidth:||20/40 MHz or Auto|
|Output power:||802.11n: 23±2dBm for OFDM mode
802.11g: 25±2dBm for OFDM mode
802.11b: 27±2dBm for CCK mode
|Wi-Fi mode:||11b / 11g / 11n only
11b/g mixed or 11b/g/n mixed
|Concurrent user:||57 users|
|Computer:||Windows XP Vista 7 8/8.1 MAC OS OS X10.7+|
|Input power:||PoE: 48Volt|
|Cable length:||Support 100 meters|
|Wiring:||Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8|
SIM Card Installation
Before inserting the SIM card, please turn off the router power by disconnect from the PoE injector. If the SIM card was inserted when the router was turned on, please reboot the router.
EZR30 takes 2FF standard SIM card; size is 25x15mm. If your SIM card is 3FF micro or 4FF nano, please use the provided SIM card adapter.
When you insert the SIM card, make sure the golden pins face down, and the notch is inside. After correct inserted the SIM card, you can hear a tiny "click" sound.
After inserted the SIM card, you can log in the router and click top menu "Network / Interface" to check the signal information including network provider, network type, and signal strength (the unit is dBm).
Some of the carriers require to input APN, access point name. You can log in the router, click "Network / Interface", then click "Edit" on the row of "Mobile".
APN: the APN gateway address
PAP/CHAP username: Username
PAP/CHAP password: Password
Click "Save & Apply" to apply the new APN parameters. It usually takes a few seconds to re-setup the mobile internet connection.
