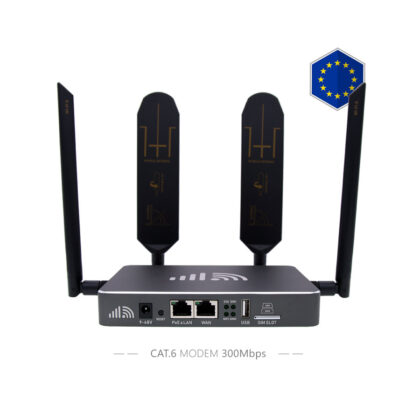

Europe Cat.6 Broadband LTE Router MIMO WiFi
US$219
A wireless router optimized for mobile internet in rugged environments. Cat.6 LTE-Advanced mobile modem connects to 3G 4G mobile networks with max 300Mbs download speed. It provides internet to up to 57 devices with 100Mbps LAN and 300Mbps MIMO Wi-Fi.
Innovative high-gain mobile paddle antennas included and supported multiple mobile protocols, OpenVPN, SSH, and remote access.
The ideal industrial LTE router provides internet in home, office, shop, restaurant, caravan, and industrial applications.
Tax Incl. Fast & free shipping from Germany.
Broadband LTE Router Cat.6 Modem
European 4G broadband modem with long-distance Wi-Fi
LTE MIMO Broadband Router
Twistable high-gain mobile LTE Antenna
Dual SIM slots for Nano SIM cards
MIMO Cat.6 LTE mobile modem inside
Long-range Wi-Fi Hotspot
100~200 yards long-distance Wi-Fi
Up to 27dBm (1-Watt) 2.4GHz Wi-Fi boosters
Replaceable SMA standard Wi-Fi antennas
Flexible Mobile & WAN Connections
Control priority of multiple Internet connections
Accepts input WAN & output LAN Ethernet
Access router remotely from Traversal Cloud
Industrial-grade Rugged Router
Built-in 6KV 1.5KV lighting protection module
Against extreme weather -40°C ~ +80°C
Wide-range power source 48V PoE & 9~48V DC
Cat.6 Broadband LTE-Advanced Modem
European standard high sensitivity broadband modem.
Cat.6 mobile modem with max 300Mbps download speed.
Connect to 3G & 4G LTE mobile networks in Europe, EMEA, etc.
Dual Nano SIM card slot. One of the SIM cards is for backup.
Integrated with GobiNet, QMI, and PPP mobile protocols.
Support custom APN parameters.
Enhanced Mobile Signal Reception
Wide-range LTE antennas – support all of the 4G frequencies.
Twist the paddle antenna direction and receive a better signal.
SMA standard sockets – support external antennas.
A Safe & Open-sourced Firmware
Powerful firmware for the mobile router, with QoS & OpenVPN.
Rooted with full authority, SSH, FTP, and software center.
Pre-built the bootloader. Contact us for an online demo test.
Home & Office
4G backup & WAN Internet
Supports up to 57 concurrent users
Industrial Applications
Provides LAN and powerful Wi-Fi
for IoT, CCTV, Vending machine, etc
Logistics & Caravan
Flexible installation & power sources
Enhanced mobile signal reception
Shop / Hotel / Restaurant
Wi-Fi network for guests
Enabled smart traffic control
Package Contents - What Will You Get
Package Contents
1 x LTE broadband Wi-Fi router
w/ Cat.6 European mobile modem
2 x Mobile paddle antenna
2 x Wi-Fi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – EU plug
Compare Indoor European 4G Routers
The EZR23 series routers use various LTE modems, including CAT1/4/6. The popular CAT6 modem provides a max 300Mbps download speed, and the CAT1/4 modem is more suitable for low-traffic applications.
The EZR24 router has a built-in CAT12 LTE modem to provide a max 600Mbps download speed and faster upload speed.
| Router SKU | LTE Category | Maximum Download | Carrier Aggregation |
| EZR23-Y4E | CAT4 | 150 Mbps | No |
| EZR23-Y6E | CAT6 | 300 Mbps | 2x |
| EZR24-E012 | CAT12 | 600 Mbps | 3x |
1~2 BARS ONLY?
UPGRADE 4G ANTENNAS
6/8dBi directional panel antenna
Dual-polarized MIMO antenna
MORE OF LAN PORTS?
CONNECT TO ROUTER OR SWITCH
Power up EZR23 router and split Ethernet signals
1 review for Europe Cat.6 Broadband LTE Router MIMO WiFi
Add a review
You must be logged in to post a review.
Y6U Y6E & Y6O - Cat.6 LTE-A Mobile Modem
| LTE Category: | CAT.6 (3GPP E-UTRA Release 11) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20/B28/B32Rx Download max 300Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 260Mbps / Upload max 28Mbps |
| 2xCA Carrier Aggregation: |
B1+B1/B5/B8/B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B20+B32Rx | B38+B38 B40+B40 | B41+B41 |
| 3G Bands: | B1/B/3B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | EMEA: Europe, the Middle East and Africa APAC: Asia-Pacific (Excluding Japan and CMCC) and Brazil |
| Certification: | CE / RCM / GCF / Deutsche |
CAT.6 Modem For EMEA APAC & Brazil
EZEN3X - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Humidity: | 10%~95% RH |
| Measurement: | Router 230x175x70mm / 980g |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
Power Sources
| DC Adapter: |
Input: 110~240V / Output 12V 2A (Include) |
| PoE Adapter: |
Input: 110~240V / Output: 48V 0.5A (Exclude) |
| LAN Cable: | 3⅓ feet LAN cable included |
Software Systems
| Router Firmware: | OpenEzen System |
| Log in: | IP address: 192.168.20.1 Password: root |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | EzBoot (192.168.1.1) |
