UK 4G LTE Router | Outdoor Wi-Fi Dual SIM
Insert a 4G SIM card to receive the best outdoor area signals and get fast internet from mobile networks
-6%

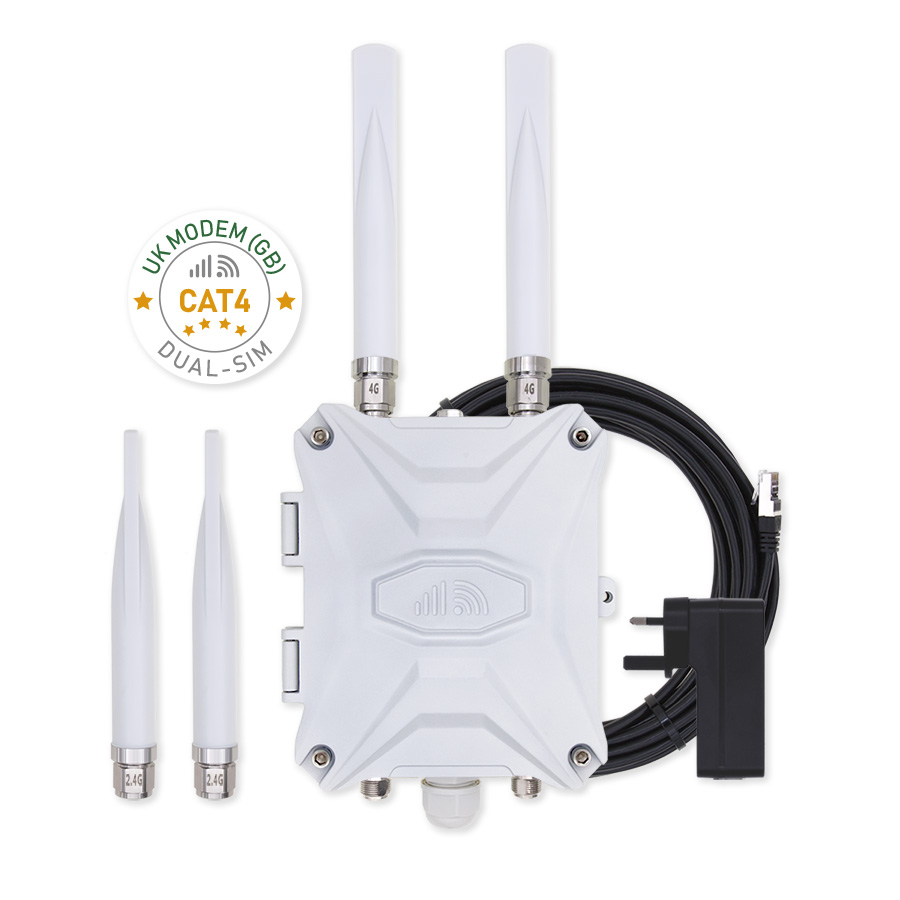

Rugged UK Outdoor 4G Router External LTE SIM Modem
US$332
IP67-rated outdoor grade waterproof enclosure!
The Cat4 mobile modem in UK 4G LTE router provides rated ≦150mbps download speed. It receives the best outdoor mobile signals and provides fast Wi-Fi internet outside.
✧ UK standard Cat4 LTE modem inside. Dual SIM card slot.
✧ Standalone 1-watt Wi-Fi hotspot covers 150~300 yards in an open area.
✧ Powered by 48Volt PoE. LAN Ethernet is available on the PoE injector.

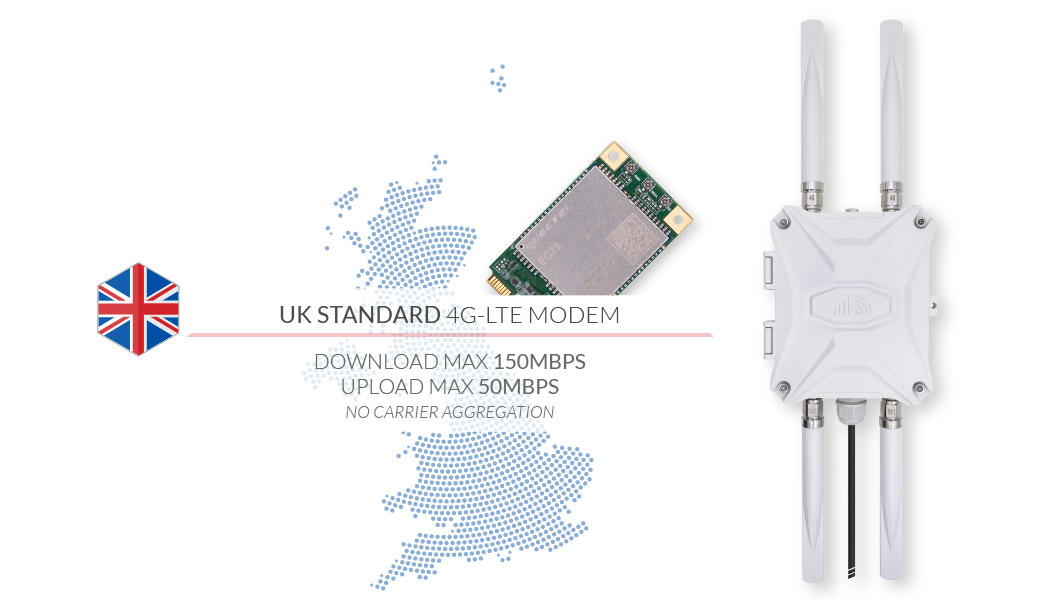

UK 4G LTE Router with Cat4 Mobile Modem
i. Built-in Cat4 mobile LTE modem, the UK 4G LTE router connects to widely distributed mobile phone signals and gets rated max 150Mbps download speed.
UK standard 4G LTE modem inside. Support for mobile networks in UK, Europe and other EMEA areas. The UK 4G router is unlocked to use any SIM card you have. It supports all the UK mobile carriers, BT EE O2 Three Vodafone etc.
The dual-SIM slot provides a backup 4G internet connection. Advanced mobile data & PPP protocols and auto APN are integrated into the 4G router firmware.
Rugged 4G LTE Router for Demanding Applications
Strictly prohibited for any illegal use!
Remote & Rural Area
Receive stronger outdoor signals. Get rid of the landline. Enjoy the fast-speed mobile internet.
Outdoor Events
Use a SIM card to set up a temporary internet for outdoor events, campsite, caravan, boat, etc.
Harsh Environments
Provides rugged internet for industrial applications, water treatment, and construction sites.
Outdoor Wi-Fi Coverage
ii. Standalone MIMO Wi-Fi hotspot on 2.4GHz. Connect up to 57 Wi-Fi-enabled devices to the internet, such as cameras, doorbells, etc. It also supports the Wi-Fi relay.
PoE Power & LAN Ethernet
iii. PoE Power System -- Comply with 802.3af/at PoE standard, the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data. It supports a max 50-meter LAN cable. You can also power it up with a 12V DC power adapter.
iv. LAN Ethernet Connection -- Connect the network switch, second router, or computer to the LAN port on the PoE injector to extend the 4G internet to an indoor area.
High-gain External Antennas
v. Include wideband LTE antennas and omnidirectional Wi-Fi antennas. These external antennas are upgraded with UV coating and hexagon SS connectors. The robust N-female connectors support upgrades to directional antennas to improve signal reception.
The Latest Innovative Waterproof Enclosure
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G modem router has the unique & modular designed enclosure with a weather-proof coating.
The durable enclosure provides waterproof protection in demanding environments.
A set of o-rings seals and gaskets protects the router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G modem router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV.
The breather valve prevents rupturing or imploding.
Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system.
It offers flexible solutions to install in vertical or horizontal directions.
Powerful & Open-sourced Cellular Router Firmware
Dedicated Cellular Router Firmware
Outdoor router operates as a plug-and-plug Linux router for internet freedom. It's easy to use and with a bundle of advanced tools.
The SIM-card router has integrated modem drivers, mobile protocols, and APN parameters. It also supports mmcli and AT command sets.
The keepalive design brings stable mobile internet connections. Automatically redial modem, reboot router, and switch SIM cards.
Safe & Open-sourced Firmware
Access and control the router with a web browser. It provides full authority to access SSH FTP Telnet, software center, and file system.
It has built QoS, firewall, DNS filter, and multiple-WAN. You can easily control the inbound and outbound traffics.
Supports OpenVPN and WireGuard. You can remotely access it via the Traversal-Cloud. TR069 is available on demand.
What Will You Get in the Package
The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports.
Package Contents
1 x UK Cat4 Outdoor LTE Router
4 x Omni Antenna
1 x 10-meter outdoor LAN Cable
1 x 48V PoE Injector
1 x L-Shape Bracket
1 x T-Shape Wrench
1 x Mounting Kit
Unboxing EZR33L Router
Frequently Asked Questions
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR33L Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer Free Shipping and safe Express delivery from the UK warehouse.
Lead time is 24 hours in working days. The shipping couriers are DPD and RoyalMail, and the transit time is 24~48 hours.
The backorder and out-of-stock products will ship from the factory or other warehouses, and the transit time is 4~6 days.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor SIM router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, or IoT data plan. It supports major UK mobile providers, such as BT EE O2 Three Vodafone, and most virtual mobile providers.
The SIM card slot(s) takes Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm). Please ensure the SIM card is workable and has enough data allowance.
Note: Using a 5G data plan on the 4G LTE router will connect to the 4G-LTE mobile network, and using a 4G data plan on the 5G router will also access the 4G-LTE network.
What are the major differences between 4G/5G outdoor routers?
The EZR34(T) series routers offer 1Gbps LAN and 1200Mbps WiFi with CAT12 LTE-Advanced or 5G-NR mobile modem. They can provide fast-speed 4G/5G mobile internet for high-traffic applications such as gaming and video streaming.
The EZR33(L) series routers provide 100Mbps LAN and 300Mbps WiFi with CAT4 or CAT6 mobile LTE modem. These are the economical mobile SIM routers for low-traffic demands and essential mobile internet solutions such as rural internet, IoT applications, etc.
| Router SKU | LAN | WiFi | Category | Max Download |
| EZR34T-U520 | 1Gbps | 1200Mbps | 5G-NR NA & NSA LTE CAT19 |
3.4 Gbps |
| EZR34-U012 | 1Gbps | 1200Mbps | LTE CAT12 | 600 Mbps |
| EZR33L-U6 | 100Mbps | 300Mbps | LTE CAT6 | 300 Mbps |
| EZR33L-U4 | 100Mbps | 300Mbps | LTE CAT4 | 150 Mbps |
4G Modem Router Applications
How does the cellular router work?
The outdoor 4G router has a SIM card slot(s) and a LTE modem inside. After inserting a workable SIM card, the mobile modem connects to 3G/4G networks and gets an internet connection. The outdoor modem router can output the internet traffic on the WiFi hotspot and wired LAN port.
LAN Ethernet - You can connect another router to the LAN port on the PoE injector and extend the intranet network.
Does it support mobile carrier aggregation?
The carrier aggregation will automatically turn on when there are sufficient signals, such as multiple qualified bands from the same carrier. Read more about carrier aggregation technology.
The 5G router supports 4x carrier aggregation, the LTE CAT12 router supports 3x CA, and the CAT6 modem supports 2x CA. The CAT4 modem does not support carrier aggregation.
How to know if a 4G router is workable in my area?
The outdoor 4G router needs a fair mobile signal reception, for example, above -101dBm RSRP signal. You can run a field test of the signal reception.
If the mobile signal is too weak, suggest changing the location and installing it at a higher altitude. Upgrading the 4G antenna to higher-gain aerials is helpful to get the best available signals.
Using a mobile signal booster with outdoor 4G routers is not recommended since it increases the noise level, which causes slower internet speed and even packet loss.
How to install the outdoor router?
The outdoor 4G router includes a complete set of brackets, a wrench, and a manual. You can turn the L-shape bracket to install the router in multiple directions. The suggested installation is on a vertical Ø35~50mm pole. The pole is not included.
Can I power the outdoor router with 12Volt power?
The outdoor 4G router uses default IEEE 802.3af/at standard 48/52Volt PoE power.
It has a DC socket to take a wide range of 9~52Volt DC power. The supported DC jack is Ø 5.5/2.1 jack. Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all outdoor routers. You may access the router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings. Read more about how to turn on remote cloud access.
Be the first to review “Rugged UK Outdoor 4G Router External LTE SIM Modem”
You must be logged in to post a review.
CAT4 LTE Mobile Modem - E4 & U4
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20 Download max 150Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 130Mbps / Upload max 30Mbps |
| 3G Bands: | B1/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| 2G Bands: | GSM/EDGE: B3/B8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | Europe, Africa, Middle East, Korea & Thailand |
| Certification: | RCM/CE/Deutsche Telekom/ICASA/ FAC/GCF |
UK & European Standard Modem
EZEN3X Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 180.7x160.8x53mm |
| Package: | 307x249x130mm / 2405gram |
Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ22×180mm |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Power Sources
| PoE Injector: | Input: 110~240VAC 50/60Hz Output: 48Volt 0.5Amps |
| LAN Cable: |
10-meter outdoor grade LAN cable included. |
| PoE Wiring: |
Ethernet 1, 2, 3, 6 |
| DC Socket: |
Wide range DC 9~48Volt |
4G Router Firmware
Note: Below function chart is base on firmware version EV3124.
| Mobile Protocol: | Mobile Data and 4G-PPP |
| Command Sets: | MMCLI & AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, Telnet, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN (v2.5.3) and WireGuard VPN |
| Remote Control: | Free traversal cloud * TR069 available on demand |
Contact Us
Please feel free to contact us if you need any further information about the product.
