UK 4G Outdoor WiFi Router
US$366
Receive mobile signals and create a fast-speed Wi-Fi hotspot. Provide internet service in caravans, boats, rural areas, campsites, and construction sites.
Industrial-grade 3G/4G broadband modem, supports EE, O2, Three, and Vodafone
Powerful Wi-Fi booster covers 650~1600 Feet (200~500 meters) in radius
External high-gain 5/6dBi all-directional antennas
Out of stock
The UK 4G Outdoor Router is base on an industrial-grade 3G/4G broadband mobile modem, and it supports all of the 4G LTE networks in the United Kingdom. The supported 3G/4G mobile networks including:
4G FDD-LTE Band 1 – 2100MHz / Band 3 – 1800MHz / Band 7 – 2600MHz / Band 8 – 900MHz / Band 20 – 800MHz / TDD-LTE Band 40 – 2300MHz
The 4G Outdoor Router uses a prepaid SIM card to access the 4G LTE mobile network. It can support all of the UK mobile operators, including EE, Three, O2, and Vodafone.
The UK 4G Router provides flexible wireless internet service on various indoor/outdoor occasions and harsh industrial environments.
| Carrier | 4G LTE Band | 4G Router |
|---|---|---|
| EE | 4G Band 3 – 1800MHz 4G Band 7 – 2600MHz 4G Band 20 – 800MHz 2100MHz (3G) |
Supported |
| O2 | 4G Band 20 – 800MHz 900MHz (2G & 3G) 2100MHz (3G) |
Supported |
| Vodafone | 4G Band 7 – 2600MHz 4G Band 20 – 800MHz 900MHz (2G & 3G) 2100MHz (3G) |
Supported |
| Three | 4G Band 3 – 1800MHz 4G Band 20 – 800MHz 2100MHz (3G) |
Supported |

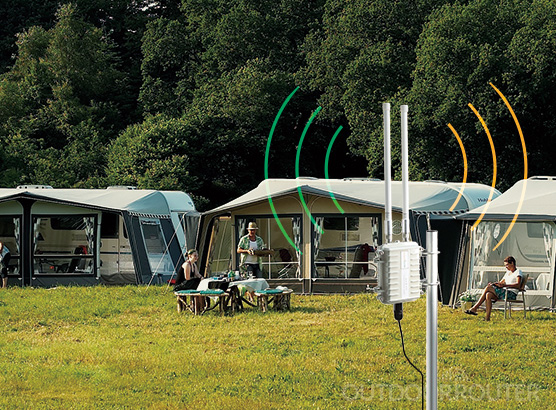

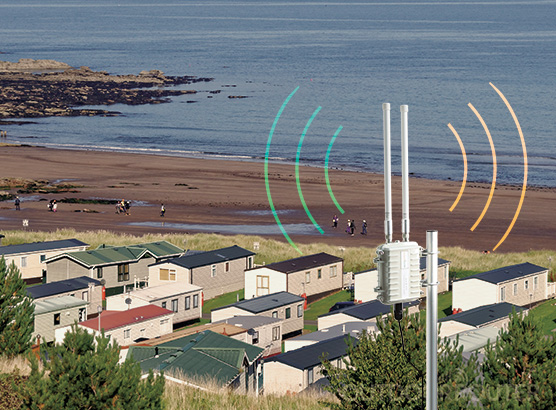

UK Remote Area: Park, Coast, Boat, Yacht, Caravan, Camping Site, Construction Site；

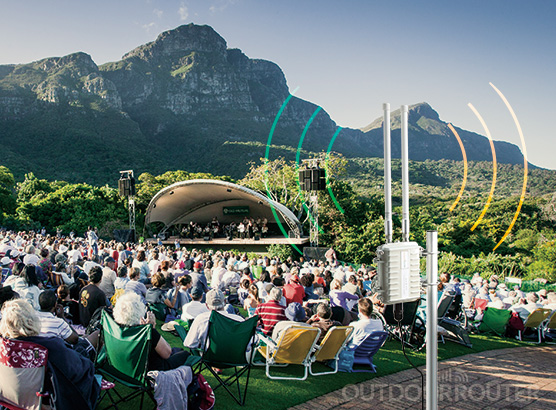

British Outdoor Events: Golf Course, Outdoor Concert, Flea Market, Business Summit.
Build-in optimized 3G/4G mobile modem for the Great British mobile operators, the Outdoor Wi-Fi Router bring high-performance cellular connectivity. Complying with the IEEE 802.11b/g/n standard, the Outdoor Wi-Fi Router provides high-speed 150Mbps wireless and Ethernet connections.
With the powerful Wi-Fi extender chip, the Outdoor WiFi Router can boost wireless Wi-Fi signals and extend Wi-Fi cover up to 650~1600 Feet (200~500 meters) in radius.
Supports Ethernet connection, you can set up a local area network to connect more devices to the internet.
4G Outdoor Wi-Fi Router Features
UK Mobile Broadband Modem
Mobile transmission rate up to 150mbps
Support EE, O2, Three, Vodafone networks
Support all of UK 2G/3G/4G frequencies
∙ 4G FDD-LTE: B1/B3/B7/B8/B20
∙ 3G WCDMA: 2100/900MHz
∙ 2G GSM/GPRS/EDGE 900/1800MHz
Powerful Wi-Fi Booster
Wi-Fi transmission rate up to 150Mbps
Comply Wi-Fi standards 802.11b/g/n
Adjustable Wi-Fi output power 10/20/30dBm
Adjustable connections from 1~10 users
13 Wi-Fi channels
Encryption WPA/WPA2-PSK/WPA2 AES-PSK
High Gain FRP Aerials
Dual fiber reinforced polymer (FRP) antennas
Vertical polarized high gain up to 5/6dBi
Wideband adaptive 698~2700MHz
PoE Power Source
Passive 24Volt Power over Ethernet (PoE)
Ethernet connection via PoE injector
Outdoor 10-meter LAN cable
IP67 Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Surge protection

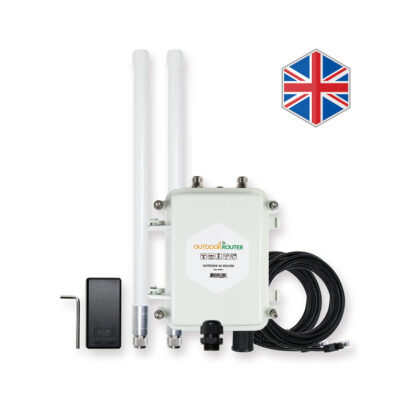

Default Package Contents - What Will You Get
Package Contents
1 x UK Outdoor 4G Router
2 x FRP Antenna
1 x 10-Meter LAN Cable
1 x 3-Meter LAN Cable
1 x 15V-1A PoE Injector
1 x Mounting Set & Tool
1 x SIM Card Adapter

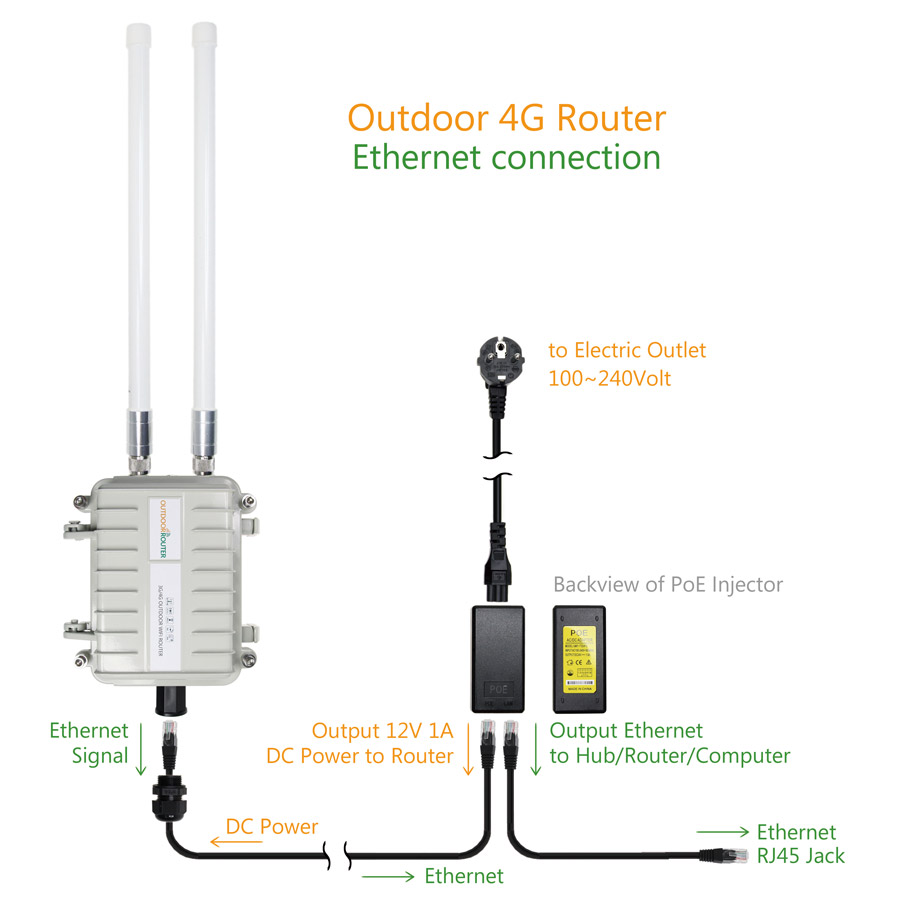

Ethernet Connection Available
Connect Outdoor 4G Router to Indoor Hub/Router/Computer
The outdoor 4G router provides both Wi-Fi and Ethernet connections. You can adjust the Wi-Fi output power between 20/27/30dBm or even turn off the Wi-Fi function on the router admin panel.
Output Ethernet from Outdoor Router
The Ethernet signal provided by the Outdoor 4G Router is accessible from the LAN port on the PoE injector. Another PoE port on the PoE injector provides DC power to the outdoor router. Please refer to the working principle on the right side.
Input Ethernet Signal to Outdoor Router
The outdoor router could receive an Ethernet signal from the indoor AP/Router by connecting the internet router to the LAN port on the PoE injector. The connection is the same as the working principle on the right side, but the Ethernet signal route is switched.
Weak Cellular Signals in Outdoor?
Improve the cellular signal reception for the Outdoor 4G Router. The default cellular antenna for the router is a 5dB FRP antenna which receives signals from all directions.
The upgradeable Log-periodic Antenna has a higher gain up to 9.5dB and receives signals from a defined narrow-angle. With the log-periodic antenna, you can get 2~3 times the higher signal strength.
