American 4G Outdoor Router MIMO Wi-Fi ATT
North American standard outdoor router. MIMO 4G and MIMO Wi-Fi 300Mbps. Support AT&T and T-Mobile cellular networks. Designed for use in remote areas. Provide fast speed 300Mbps MIMO Wi-Fi for 57 simultaneous connections.
• Cat4 cellular modem inside for use in the USA and Canada
• MIMO Wi-Fi with 25~27dBm booster – covers 300~600 feet radius
• 300Mbps Wi-Fi speed – supports 57 simultaneous connections
• PoE power over Ethernet – support 48Volt PoE switch
• IP67 rated. Withstand extreme weathers & rugged deployments
Mobile Broadband Modem
MIMO 3G/4G modem with high sensitivity
Download speed up to 150Mbps
North American standard frequencies
4G LTE bands: B2 B4 B12
2.4G MIMO Wi-Fi with Booster
2T2R MIMO Wi-Fi and high-gain antennas
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 110~280yd radius
Support up to 57 concurrent Wi-Fi users
PoE (power over Ethernet)
PoE support IEEE 802.3af/at
PoE injector included, work with 48V PoE switch
Support 320-feet PoE LAN cable
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Intergrated surge protection
American Mobile Broadband Modem

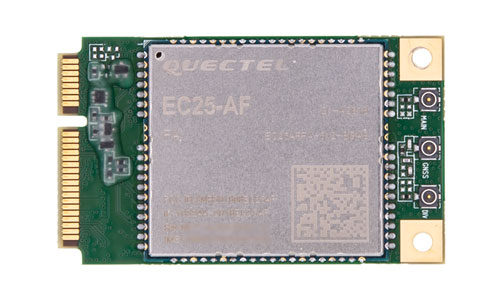

The North American 4G Router uses Quectel EC25-AF mobile broadband modem which takes 2x 4G antennas and delivers 150Mbps downlink and 50Mbps uplink data rates.
The CAT4 broadband mobile modem is designed to use in the United States and Canada. Except for 4G FDD-LTE and 4G TDD-LTE, it also supports 3G WCDMA mobile network.
The 4G broadband modem is certificated by FCC/GCF/IC/PTCRB.
* The SIM card is excluded. * Need to use the unlocked SIM card.
2.4G MIMO Wi-FI with Booster
Integrated with 25~27dBm Wi-Fi booster, the North American 4G Router covers up to 110~280 yards radius in outdoor open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provides high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, setup firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
PoE – Power over Ethernet Cable
Powered by PoE (power over Ethernet), you only need one LAN cable for both power and data. Supports 802.3af/at PoE standards, you can power up the outdoor router with 48Volt PoE switches over as long as 320-feet LAN cable.
The default 48Volt PoE injector and 30-feet LAN cable are included in the package.
IP67 Rated Waterproof Protection
Ideal to deploy in rural areas such as the park, coast, camping site, construction site and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and capable of withstanding water immersion above 3-feet for 30 minutes.
What Will You Get in the Package
Cat.4 Cellular Modem
|LTE Category:||CAT 4|
|LTE Version:||3GPP E-UTRA Release 10|
|4G Bands:||FDD LTE - B2/B4/B12
Download max 150Mbps / Upload max 50Mbps
Download max 4.2Mbps / Upload max 2.2Mbps
|Support Antenna:||DL MIMO, supports Rx-diversity|
|Temperature:||Working: -40°C ~ +85°C|
|Working Area:||North America (USA and Canada)|
|Certification:||FCC / PTCRB / IC / AT&T / T-Mobile|
|CPU:||Qualcomm Atheros QC9531|
|SIM Card:||Standard SIM card (25x15mm) **Exclude**|
|LAN Port:||1x10/100Mbps RJ45 port on PoE injector|
|Indicator:||Power & system|
|Consumption:||< 3 Watt|
|Temperature:||Working: -30 to 80°C
Storage: -50 to 95°C
|4G Omni Antenna:||Frequency: 698~960 / 1710~2700MHz
Gain: 3~4dBi / V.S.W.R.: ≤ 2.5
|Wi-Fi Antenna:||Frequency: 2400~2500MHz
Gain: 5dBi / V.S.W.R.: ≤ 2.5
|Max Input power:||10 Watt|
|Wi-Fi standards:||IEEE 802.11 b/g/n & IEEE 802.3u|
|Transmission rate:||300Mbps by 2T2R MIMO Wi-Fi|
|Bandwidth:||20/40 MHz or Auto|
|Output power:||802.11n: 23±2dBm for OFDM mode
802.11g: 25±2dBm for OFDM mode
802.11b: 27±2dBm for CCK mode
|Wi-Fi mode:||11b / 11g / 11n only
11b/g mixed or 11b/g/n mixed
|Concurrent user:||57 users|
|Computer:||Windows XP Vista 7 8/8.1 MAC OS OS X10.7+|
|Input power:||PoE: 48Volt|
|Cable length:||Support 100 meters|
|Wiring:||Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8|
SIM Card Installation
Before inserting the SIM card, please turn off the router power by disconnect from the PoE injector. If the SIM card was inserted when the router was turned on, please reboot the router.
EZR30 takes 2FF standard SIM card; size is 25x15mm. If your SIM card is 3FF micro or 4FF nano, please use the provided SIM card adapter.
When you insert the SIM card, make sure the golden pins face down, and the notch is inside. After correct inserted the SIM card, you can hear a tiny "click" sound.
After inserted the SIM card, you can log in the router and click top menu "Network / Interface" to check the signal information including network provider, network type, and signal strength (the unit is dBm).
Some of the carriers require to input APN, access point name. You can log in the router, click "Network / Interface", then click "Edit" on the row of "Mobile".
APN: the APN gateway address
PAP/CHAP username: Username
PAP/CHAP password: Password
Click "Save & Apply" to apply the new APN parameters. It usually takes a few seconds to re-setup the mobile internet connection.
