Outdoor 4G SIM Router w/ CAT12 Modem
Outdoor 4G routers offer you fast-speed internet from a SIM card
2022 new upgraded outdoor router with CAT12 LTE modem
US$419
The outdoor 4G router has a CAT12 LTE modem and SIM card slot. It uses direct external antennas to reduce signal attenuations and receive the best outdoor mobile signals. It has a featured IP67 enclosure that offers the best waterproof protection for long-term uses.
2 in stock
Outdoor 4G routers offer you fast-speed internet from a SIM card
2022 new upgraded outdoor router with CAT12 LTE modem
Max 600Mbps download speed over LTE
Max 150Mbps upload speed – 3× of CAT6
4G bond modem with Nano SIM card slot
Outdoor 4G WiFi hotspots 2.4GHz & 5.8GHz
1-Watt WiFi coverage for 150~300 yards
Exclusive outdoor IP67 waterproof enclosure
Robust quality withstands extreme weather
Long-distance power supply on PoE injector
1Gbps wired Ethernet from PoE LAN port
Supports alternative 9~52V DC power
Free Ship from Europe
Tax included. Guarantee safe express delivery from Europe. 3~5 days ship time by DHL or DPD.
Money Back Warranty
Guaranteed safe shopping with a 15-day money-back and 1-year quality warranty.
IP67 Waterproof Test
Outdoor waterproof enclosure passed IP67 tests and CE approved 4G WiFi modem routers.
Slow cable internet? Weak 4G signals indoors? It’s time to go outdoors!
The outdoor 4G WiFi router has external antennas to receive the best outside mobile signals and provides fast-speed LTE internet on WiFi and Ethernet.
Receive the best signals – Fewer RF interferences & barriers in outdoor.
Direct connected external antennas reduce signal attenuations.
Bring WiFi internet to outdoor backyards for cameras, sensors, etc.
Provides 4G failover internet to your existing indoor network.
The exclusive outdoor enclosure is featured complete waterproof protection, anti-corrosion aluminum material, and outdoor coating.
IP67 Certificated – Passed waterproof tests of IEC 60529. Protect against water & dust for long-term outdoor uses.
Lighting protection – Common 6KV & differential 1.5KV. Withstand outdoor extreme weather -40° ~ +80° celsius.
CAT12 outdoor 4G router helps you to get fast-speed internet with a SIM card.
CAT12 4G router is easy to use, and its firmware has built mobile APN protocols and essential functions.
Our powerful 4G router firmware is open source and allows the installation of new plugins.
Watchdog keeps mobile internet alive and supports band lock & 4G bridge.
It has port forwarding, load balance, and free Traversal Cloud for remote access.
Supports SSH FTP and integrates VPN of OpenVPN and WireGuard.
The standalone 4G WiFi router creates MU-MIMO WiFi hotspots on 2.4GHz and 5.8GHz, totaling 1200Mbps.
Support 4G SIM card and landline
1Gbps LAN & 1200Mbps Wi-Fi
Max 150Mbps upload speed for online learning and video chat
Long-range Wi-Fi coverage
Link cameras with 4G internet
Travel with 4G LTE router
Stay connected to the internet
M2M optimized on PoE & DC
WAN LAN & long-range Wi-Fi
Serve 120 users at the same time
Guest Wi-Fi & 4G failover internet
The durable outdoor router offers stable internet links in rugged environments and industrial applications.
The innovative modular design provides flexible installations and easy upgrades.
The robust Omni-directional antennas pick mobile 4G signals in all directions. In addition, you can replace them with higher-gain antennas.
The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports.
1 x CAT12 Outdoor 4G Router
2 x Full-band Omni LTE Antenna
2 x Mix-band Omni WiFi Antenna
1 x 10-meter outdoor LAN Cable
1 x Gigabit PoE Injector (EU Plug)
1 x Mounting Kit (Bracket Wrench etc)
Note: Exclude SIM cards
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR34 Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
We offer free shipping and safe express delivery from the Germany warehouse. Lead time is 24 hours in working days. The shipping couriers are DHL and DPD Express, and the transit time is 3~5 days.
The backorder and out-of-stock products will ship from the factory or other warehouses, and the transit time is 5~7 days.
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
The outdoor SIM router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, or IoT data plan. It supports major European mobile providers.
The SIM card slot(s) takes Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm). Please ensure the SIM card is workable and has enough data allowance.
The EZR34(T) series routers offer 1Gbps LAN and 1200Mbps WiFi with CAT12 LTE-Advanced or 5G-NR mobile modem. They can provide fast-speed 4G/5G mobile internet for high-traffic applications such as gaming and video streaming.
The EZR33(L) series routers provide 100Mbps LAN and 300Mbps WiFi with CAT4 or CAT6 mobile LTE modem. These are the economical mobile SIM routers for low-traffic demands and essential mobile internet solutions such as rural internet, IoT applications, etc.
Router SKU | LAN | WiFi | Category | Max Download |
EZR34T-E520 | 1Gbps | 1200Mbps | 5G-NR NA & NSA LTE CAT19 |
3.4 Gbps |
EZR34-E012 | 1Gbps | 1200Mbps | LTE CAT12 | 600 Mbps |
EZR33T-E6 | 100Mbps | 300Mbps | LTE CAT6 | 300 Mbps |
EZR33T-E4 | 100Mbps | 300Mbps | LTE CAT4 | 150 Mbps |
The 4G router has a SIM card slot and LTE modem inside. After inserting a workable SIM card, the LTE modem connects to mobile networks and gets an internet connection. The 4G router can output the internet traffic on the WiFi hotspot and wired LAN port.
LAN Ethernet - You can connect another router to the LAN port on the PoE injector and extend the intranet network.
The CAT12 LTE modem supports max 3x carrier aggregation and automatically turns on when having sufficient signals. Read more about carrier aggregation technology.
For Example one of the 3x CA modes (2 Intra-band & Inter-band) includes:
B2+2+5 | B2+2+13 | B3+3+7 | B3+7+7 | B3+3+20 | B3+3+28 | B3+3+1 | B4+4+5 | B4+4+13 | B7+7+28 | B5+66+66 | B13+66+66 | B66+66+2 | B39+39+41 | B39+41+41 | B14+B66+B66
The 4G router needs a fair signal reception (above -101dBm RSRP signal) and a workable SIM card. You can run a field test of the signal reception. If the signal is too weak, you can upgrade the 4G antenna to higher-gain models to get the best available signals.
Using a mobile signal booster with the 4G routers is not recommended since it increases the noise level, which causes slower internet speed and even packet loss.

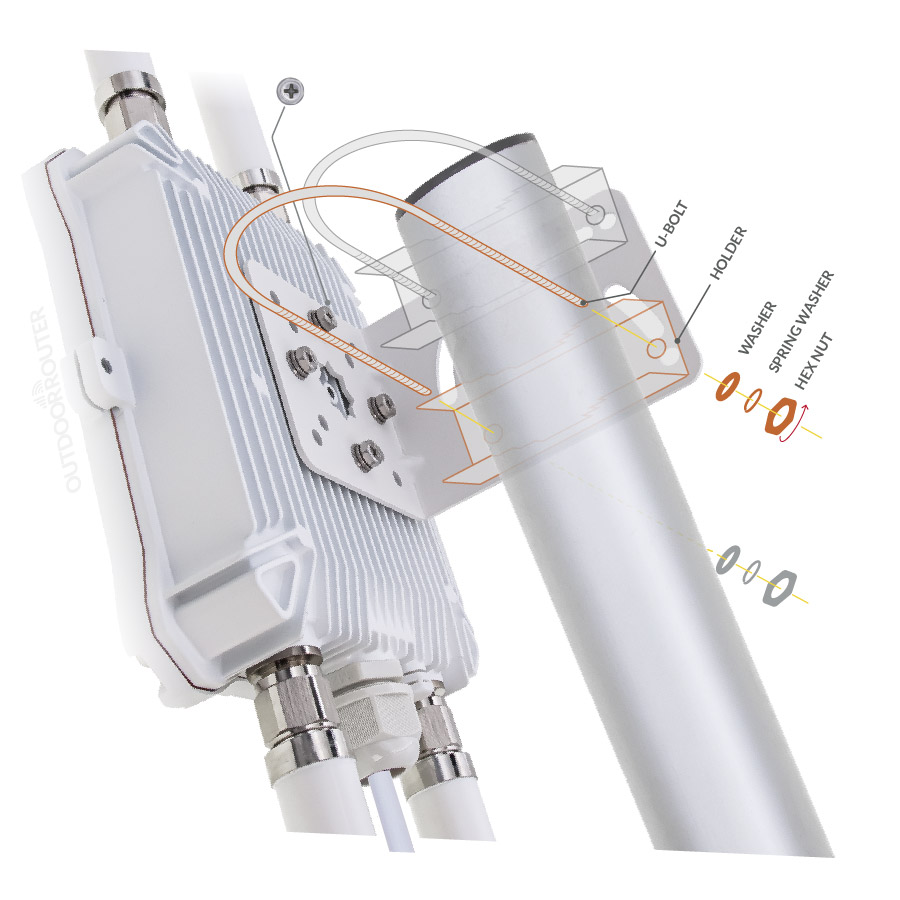

The outdoor router package includes a complete set of brackets, a wrench, and a manual. You can twist the bracket to install it in flexible directions, horizontally or vertically. The suggested installation is on a Ø35~50mm pole that is not included.
The outdoor 4G router takes 52Volt power from the included PoE injector and supports an alternative DC power supply on the DC socket.
You can go through the power wire from the gland to the DC socket on the motherboard, which takes 9~52Volt DC power on standard Ø 5.5/2.1 jack.
Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
We offer free cloud access on all outdoor routers. You may access the 4G router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings. Read more about how to turn on remote cloud access.
You must be logged in to post a review.
This Cat-12 cellular module has a global design frequency spectrum. It supports the 4G router to connect to worldwide main mobile providers.
Specification | 4G LTE | 3G |
Bands: | FDD Bands: 1/2/3/4/5/7/8/9/12/13/14/ 17/18/19/20/21/25/26/28/ 29/30/32/66 TDD Bands: 38/39/40/41 |
Bands: 1/2/3/4/5/8/9/19 |
Download Speed: | FDD: Max 600Mbps TDD: Max 430Mbps |
DC-HSDPA: Max 42Mbps WCDMA: Max 384Kbps |
Upload Speed: | FDD: Max 150Mbps TDD: Max 30Mbps |
HSUPA: Max 5.76Mbps WCDMA: Max 384Kbps |
Carrier Aggregation: | Download: 3x CA or 2x CA Upload: 2x CA |
/
|
Signal Modulation: | 256QAM | 64QAM |
Output Power: | Class 3 (23dBm±2dB) | WCDMA: 24dBm+1/-3dB |
3GPP Release: | 3GPP Release 11 | |
Bandwidth: | 1.4/3/5/10/15/20MHz |

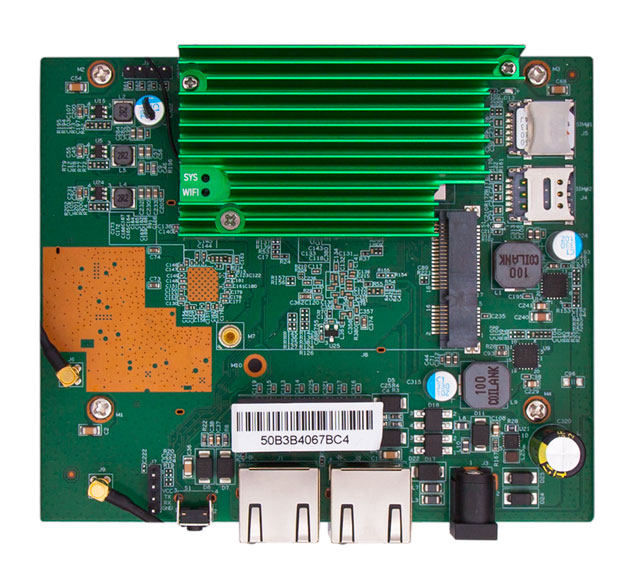

EZEN4X3 Version 1.2
CPU Chipset: | MTK7621 MIPS1004Kec |
Clock Speed: | 880MHz |
Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
Indicator: | System / Wi-Fi / SIM1 / SIM2 |
Temperature: | Working: -20 to +70°C / Storage: -40 to +85°C |
Humidity: | 0%~100% RH |
Physical Interface: | 1x PoE/WAN & 1xWAN / 4x Antenna sockets 2x Nano-SIM card slot / 1x Reset button |
Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
Speed Rate: | 300Mbps | 867Mbps |
Output Power: | 27dBm | 26dBm |
Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
|
MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO | |
Mesh Wi-Fi: | EasyMesh standard |
2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
4 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150~5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
Measurement: | Φ22×180mm |
Connector: | N Male |
Polarization: | Vertical |
Impedance: | 50 Ω |
Max Input Power: | 10 Watt |
PoE Injector: | Input: AC 100~240Volt 50/60Hz Output: 52Volt 0.5Amps |
LAN Cable: | CAT6 outdoor grade 10-meter cable included * Supports max 50-meter length LAN cable |
PoE Wiring: | DC+ 4,5 | DC- 7,8 Ethernet on all wires |
AC Plug: | EU/GB/US/AU standard available * Ship depends on the destination |
DC Socket: | Takes wide-range 9~52V DC power |
DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
DC Wire: | Supports max length 12-meter |
Note:
1) DC power supply is not included. Don't overload on DC socket.
3) The typical DC powers are 12Volt 1.5~2.0Amps / 48~52Volt 0.5Amps.
Function chart is base on firmware Version EV4052
Read more about EV4X firmware releases & tutorials
Mobile Protocol: | Mobile Data, MBIM, QMI, and 4G-PPP |
Command Sets: | MMCLI, QMICLI, and AT command sets |
Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
APN: | Auto APN included Custom APN parameters available |
Mobile Roaming: | On/off as you set |
Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
Traffic Control: | QoS, SQM, and load balancing |
Firewall: | Open new port, port forwarding, and custom rules |
Diagnostics: | Ping, Traceroute, and Nslookup |
VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
Remote Control: | Free traversal cloud * TR069 available on demand |
