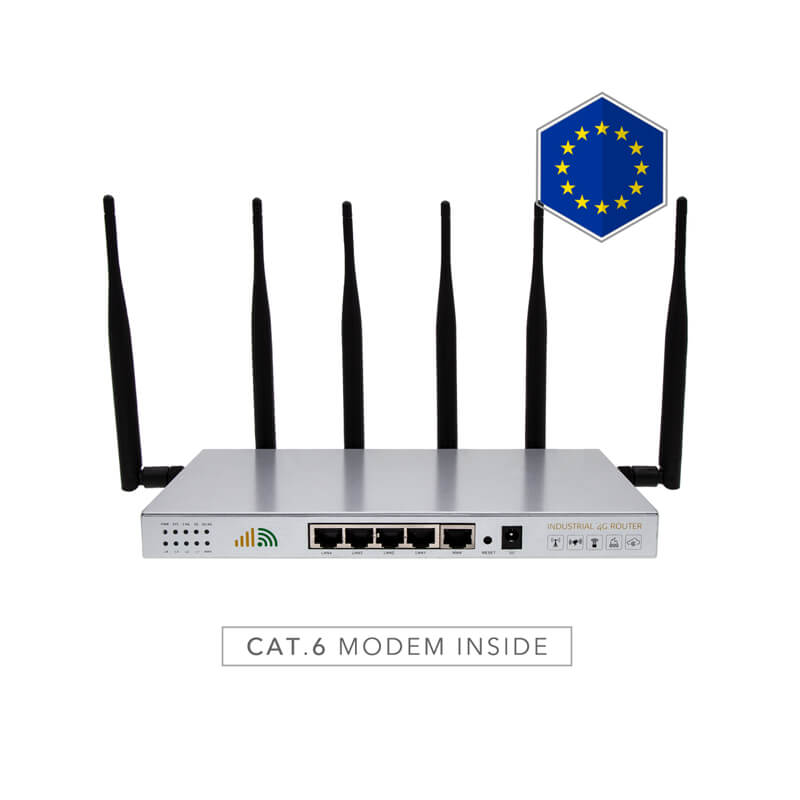

European Enterprise 4G LTE-A Router Cat 6
EUR €221
Built-in 4G LTE-A cellular modem and dual-core CPU, supports max 300Mbps download speed with carrier aggregation. 1200Mbps Wi-Fi and 1Gmbps LAN support massive concurrent users. The rock solid enterprise-grade ezenos firmware integrated a bundle of powerful and exclusive tools for boost your business.
◦ Fast speed Cat 6 LTE-A cellular modem
◦ Support 3G and 4G LTE-A mobile networks
◦ Powered by 880MHz dual-core MT7621A CPU
◦ MIMO WiFi on both of 2.4G and 5.8G
◦ 1200Mbps Wi-Fi network for 120 users
Enterprise Class 4G LTE-A Router
Wireless Router with Cat 6 Modem — serve massive concurrent users and always stay online.
Cat 6 Cellular Modem Inside
LTE-Advanced category 6 modem adopting the LTE-A carrier aggregation and 3GPP Rel. 11 LTE technology.
Support versatile 3G and 4G LTE spectrums. Targeting for EMEA APAC and Brazil.
Max 300Mbps download speed and 50Mbps upload speed.
Support 1000Mbps Landline and Wi-Fi Relay
Easily switch the connection priority.
Stay online – Multiple backup connections.
Support Massive Concurrent Users
120 users on Wi-Fi or 200 users over LAN Ethernet
1200Mbps Wi-Fi Networks
IEEE 802.11 a/b/n/g/ac standard 2.4G & 5.8G WiFi networks. Built-in Wi-Fi authorization system for guests.
4x1000Mbps LAN Ports
Integrated 1Gbps LAN Ethernet ports.
Support LAN switch and secondary router.
Commercial Grade ezenos Firmware Inside
ezenos – 4G Router Firmware Overview
A robust firmware update monthly!
Maintaining by 10+ professional programmers.
Optimized for 4G Cellular Internet
Real-time 4G status bar – Including:
Network / Carrier / Signal Strength / SIM Card
Using the latest 4G protocol – WWAN connection
30~50% faster speed than traditional 4G PPPoE
Flexible APN settings
Adjustable Internet connection priority
Select up to TWO backup internet connections
Take Full Control on Your Router
Config 4G WAN LAN / DNSDHCP / Dynamic DNS
Wi-Fi Settings
Wi-Fi mode, bandwidth, channel, output power
Wi-Fi SSID, Guest SSID, Wi-Fi adversting system
Wi-Fi relay and support 50ms Wi-Fi roaming
Network Security
Firewall: ARP binding, MAC filter, anti DDOS
VPN: PPTP L2TP and IPSec
Advanced Router Settings
Smart QoS control
Customize quality of service rules
1-click deny P2P, gaming, shopping, or video
Faster Internet for You
Multiple-dail over PPPoE landline
Remote Control the Router
NAT network penetration
Free cloud server
TURBO FAST SPEED
BROUGHT YOU BY ROCK SOLID HARDWARE
i. Dual-core MT7621A 800MHz CPU platform
ii. 512MB DDR3 memory
iii. 16MB SPI flash memory
iv. 3x Cooling fins inside
Package Contents - What Will You Get
Package Contents
1 x European Enterprise 4G LTE-A router
6 x Removable whip antenna
1 x 1-Meter LAN cable
1 x 12V-1A power supply
1 x SIM card adapter
4G Router - Commercial Applications
Office / Home / Village
Enable 4G connection with a fast speed
Support massive concurrent connections
Shop / Hotel / Restaurant
Wi-Fi network for guests
Free Wi-Fi advertising system
Warehouse / Factory / School
Internet behavior control
Block gaming shopping video stream etc
Internet Cafe / Gaming App
1200Mbps Wi-Fi and 1Gbps LAN
Remote control external PoE and AC
SMA TYPE BASE CONNECTOR
Removable whip antennas
Upgrade 4G or Wi-Fi antennas freely
1~2 BARS ONLY?
Upgrade 4G antenna when you got a weak signal!
6/8dBi directional panel antenna
Dual-polarized MIMO antenna
Cat 6 LTE-A Cellular Modem
| LTE Category: | CAT 6 |
| LTE Version: | 3GPP E-UTRA Release 11 |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20/B28/B32Rx Download max 300Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 260Mbps / Upload max 28Mbps |
| 2xCA Carrier Aggregation: |
B1+B1/B5/B8/B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B20+B32Rx B38+B38 B40+B40 B41+B41 |
| 3G Bands: | B1/B/3B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | EMEA: Europe, the Middle East and Africa APAC: Asia-Pacific (Excluding Japan and CMCC) and Brazil |
| Certification: | CE / RCM / GCF / Deutsche |
CAT 6 - For EMEA APAC & Brazil
Hardware
| CPU: | MediaTek MT7621A |
| Frequency: | Dual-core MIPS 1004Kc @880MHz |
| Memory: | DDR3 RAM 512MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Standard SIM card (25x15mm) |
| RJ45 port: | 1x 10/100/1000Mbps WAN 4x 10/100/1000Mbps LAN * Support VLAN and Auto MDI/MDIX |
| Indicator: | Power / system / 2.4G / 5.8G / 4G / WAN / LAN |
| Consumption: | < 12 Watt |
| Temperature: | Working: 0 to 40°C Storage: -40 to 70°C |
| Humidity: | 10%~90% RH |
| Power source: | DC 12Volt 2Amps (Φ55/21mm) |
| Measurement: | 235x165x23mm / 800gram |
Whip Antenna
| 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2.4G Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| 5.8G Wi-Fi antenna: | Frequency: 5750~5850MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ13×195mm |
| Connector: | SMA Male (2.4G RP-SMA) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R multiple-input multiple-output |
| Transmission rate: | 2.4GHz - 300Mbps 5.8GHz - 867Mbps |
| Frequency: | MT7603EN 2.4GHz - 2412~2484 MHz MT7612EN 5.8GHz - 5150~5725 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11a: 14±2dBm 802.11b: 18±2dBm 802.11g: 15±2dBm 802.11n: 15±2dBm 802.11ac: 14±2dBm |
| Sensitivity: | 802.11b ≦-76dBm 802.11g ≦-65dBm 802.11n ≦-61dBm 802.11a ≦-64dBm 802.11ac ≦-59dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 120 users on Wi-Fi or 200 users over LAN ethernet |
Software
| Firmware: | ezenos - License included |
| Log in: | IP address: 192.168.44.1 User name: admin Password: admin |
| WAN type: | 4G LTE, PPPoE, Dynamic IP, Static IP |
DOWNLOAD
