Unlocked 4G Mobile Router for UK
Supports UK mobile operators: BT EE O2 Three Vodafone etc

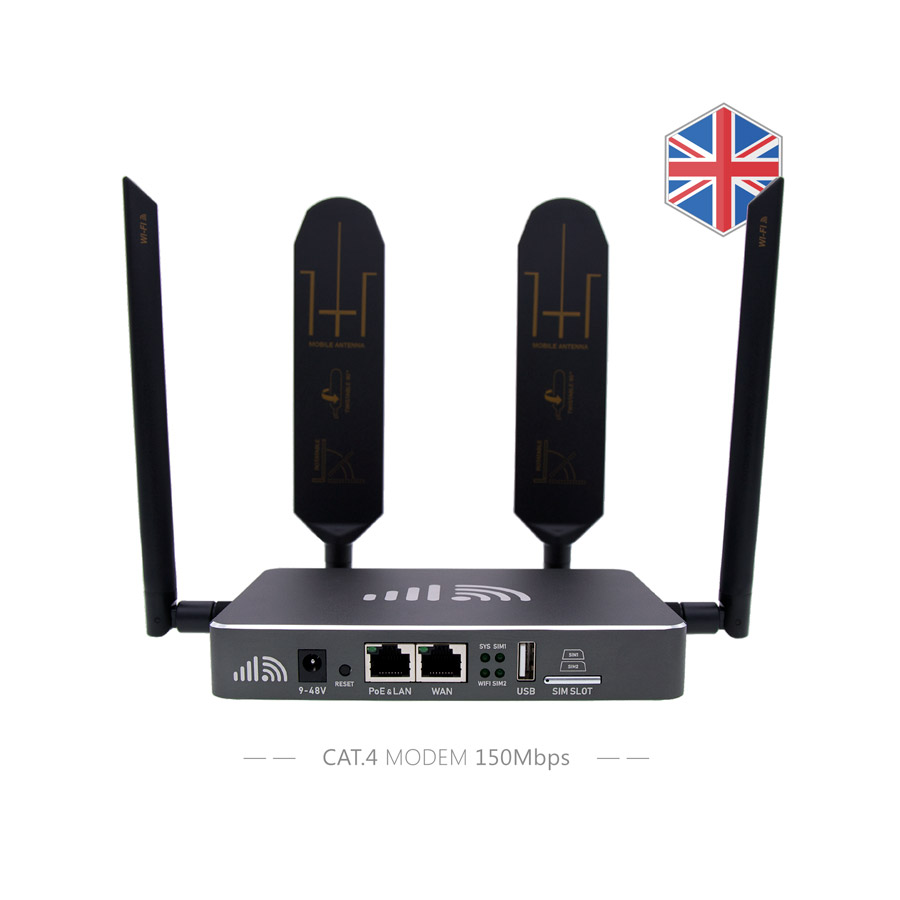

UK 4G Router Cat.4 Modem MIMO Wi-Fi
US$199
The UK 4G router is optimized for 4G mobile internet in rugged environments. Cat.4 mobile modem inside, connect to 3G 4G mobile networks with max 150Mbs download speed. It provides internet to up to 57 devices with LAN and powerful Wi-Fi in 100~200 yards.
Innovative high-gain paddle 4G antennas included and supported multiple mobile protocols, OpenVPN, SSH, and remote access.
The ideal 4G router provides internet in home, office, shop, restaurant, caravan, and industrial applications.
4G MIMO Broadband Wi-Fi Router
Designed for UK Mobile Networks with long-distance Wi-Fi
UK 4G Mobile Modem
MIMO Cat.4 modem for UK networks
Dual SIM slots for Nano SIM cards
Twistable high-gain 4G LTE Antenna
Long-range Wi-Fi Coverage
100~200 yards long-distance Wi-Fi coverage
Up to 27dBm (1-Watt) 2.4GHz Wi-Fi boosters
Replaceable SMA standard Wi-Fi antennas
Flexible 4G & WAN Connections
Control priority of multiple Internet connections
Accepts input WAN & output LAN Ethernet
Access router remotely from Traversal Cloud
Industrial-grade Rugged Router
Built-in 6KV 1.5KV lighting protection module
Against extreme weather -40°C ~ +80°C
Wide-range power source 48V PoE & 9~48V DC
Cat.4 UK LTE Modem Inside
UK LTE modem supports all of the UK mobile operators.
Cat.4 mobile modem provides max 150Mbps download speed.
High sensitivity modem supports 4G signals > -105dBm.
Dual Nano SIM card slot. One of the SIM cards is for backup.
Integrated with GobiNet, QMI, and PPP mobile protocols.
Support custom APN parameters.
Enhanced Mobile Signal Reception
Wide-range LTE antennas – support all of the 4G frequencies.
Twist the paddle antenna direction and receive a better signal.
SMA standard sockets – support external antennas.
A Safe & Open-sourced Firmware
Powerful firmware for 4G router, with QoS & OpenVPN.
Rooted with full authority, SSH, FTP, and software center.
Pre-built the bootloader. Contact us for an online demo test.
Home & Office
4G backup & WAN Internet
Supports up to 57 concurrent users
Industrial Applications
Provides LAN Ethernet and Wi-Fi
for IoT, CCTV, Vending machine, etc
Logistics & Caravan
Flexible installation & power sources
Enhanced 4G signal reception
Shop / Hotel / Restaurant
Wi-Fi network for guests
Enabled smart traffic control
Package Contents - What Will You Get
Package Contents
1 x UK 4G Wi-Fi router
Cat.4 UK mobile modem
2 x 4G paddle antenna
2 x Wi-Fi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – UK plug
Compare Indoor UK 4G Routers
The EZR23 series routers use various LTE modems, including CAT1/4/6. The popular CAT6 modem provides a max 300Mbps download speed, and the CAT1/4 modem is more suitable for low-traffic applications.
The EZR24 router has a built-in CAT12 LTE modem to provide a max 600Mbps download speed and faster upload speed.
| Router SKU | LTE Category | Maximum Download | Carrier Aggregation |
| EZR23-Y4U | CAT4 | 150 Mbps | No |
| EZR23-Y6U | CAT6 | 300 Mbps | 2x |
| EZR24-U012 | CAT12 | 600 Mbps | 3x |
Be the first to review “UK 4G Router Cat.4 Modem MIMO Wi-Fi”
You must be logged in to post a review.
Y4E & Y4U - Cat.4 Mobile Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20 Download max 150Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 130Mbps / Upload max 30Mbps |
| 3G Bands: | B1/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| 2G Bands: | GSM/EDGE: B3/B8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | Europe, Africa, Middle East, Korea, Thailand, India |
| Certification: | RCM/CE/Deutsche Telekom/ICASA/ FAC/GCF |
UK & European Standard Modem
EZEN3X - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Humidity: | 10%~95% RH |
| Measurement: | Router 230x175x70mm / 980g |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
Power Sources
| DC Adapter: |
Input: 110~240V / Output 12V 2A (Include) |
| PoE Adapter: |
Input: 110~240V / Output: 48V 0.5A (Exclude) |
| LAN Cable: | 3⅓ feet LAN cable included |
Software Systems
| Router Firmware: | OpenEzen System |
| Log in: | IP address: 192.168.20.1 Password: root |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | EzBoot (192.168.1.1) |
