USA Outdoor 4G Router MIMO Wi-Fi 300Mbps Verizon
Dedicated Verizon cellular modem inside. Support Verizon 3G and 4G LTE networks in the USA. Built-in IP67 rated waterproof case, designed for use in the remote area for rugged deployments. The outdoor 4G Verizon router provides 300Mbps Wi-Fi and 100Mbps LAN Ethernet.
• Cat 4 Verizon cellular modem – max 150Mbps download speed
• MIMO Wi-Fi with 25~27dBm booster. Covers 300~600 feet radius
• Wi-Fi speed is up to 300Mbps and supports 57 concurrent users
• PoE power over Ethernet. Support 48Volt PoE switches.
• Make sure you have the Verizon SIM card!
Cat 4 Broadband Modem
MIMO 3G/4G modem with high sensitivity
Download speed up to 150Mbps
Dedicated Verizon frequencies
4G LTE bands: B4/B13 (700MHz)
MIMO Wi-Fi 300Mbps with Booster
2T2R MIMO Wi-Fi and high-gain antennas
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 110~280yd radius
Support up to 57 concurrent Wi-Fi users
PoE (power over Ethernet)
PoE support IEEE 802.3af/at
PoE injector included, work with 48V PoE switch
Support 320-feet PoE LAN cable
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Intergrated surge protection
Dedicated Verizon Broadband Modem
The Verizon outdoor 4G router uses Cat 4 cellular broadband modem which takes 2x 4G antennas and delivers 150Mbps downlink and 50Mbps uplink data rates.
The Cat 4 broadband mobile modem is designed to use in the United States under Verizon cellular networks. Except for 4G LTE, it also supports 3G WCDMA mobile network.
The 4G Verizon modem is certificated by FCC / PTCRB / IC / Verizon.
* Exclude the SIM card. Make sure you have the Verizon SIM card before buying the router.
2.4G MIMO Wi-FI with Booster
Integrated with 25~27dBm Wi-Fi booster, the outdoor Verizon 4G Router covers up to 110~280 yards radius in outdoor open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provides high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, setup firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
PoE – Power over Ethernet
Powered by PoE (power over Ethernet), you only need one LAN cable for both power and data. Supports 802.3af/at PoE standards, you can power up the outdoor router with 48Volt PoE switches over as long as 320-feet LAN cable.
The default 48Volt PoE injector and 30-feet LAN cable are included in the package.
IP67 Rated Waterproof Protection
Ideal to deploy in rural areas such as the park, coast, camping site, construction site and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and capable of withstanding water immersion above 3-feet for 30 minutes.

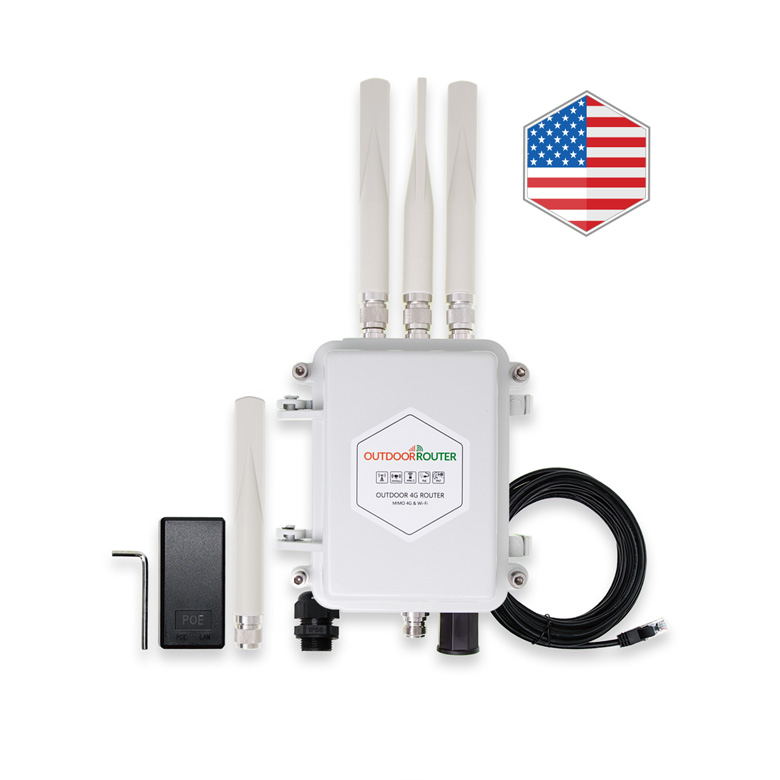

What Will You Get in the Package
Cat.4 Cellular Modem
|LTE Category:||CAT 4|
|LTE Version:||3GPP E-UTRA Release 10|
|4G Bands:||FDD LTE - B4/B13
Download max 150Mbps / Upload max 50Mbps
Download max 4.2Mbps / Upload max 2.2Mbps
|Support Antenna:||DL MIMO, supports Rx-diversity|
|Temperature:||Working: -40°C ~ +85°C|
|Working Area:||North America|
|Certification:||FCC / PTCRB / IC / Verizon|
|CPU:||Qualcomm Atheros QC9531|
|SIM Card:||Standard SIM card (25x15mm) **Exclude**|
|LAN Port:||1x10/100Mbps RJ45 port on PoE injector|
|Indicator:||Power & system|
|Consumption:||< 3 Watt|
|Temperature:||Working: -30 to 80°C
Storage: -50 to 95°C
|4G Omni Antenna:||Frequency: 698~960 / 1710~2700MHz
Gain: 3~4dBi / V.S.W.R.: ≤ 2.5
|Wi-Fi Antenna:||Frequency: 2400~2500MHz
Gain: 5dBi / V.S.W.R.: ≤ 2.5
|Max Input power:||10 Watt|
|Wi-Fi standards:||IEEE 802.11 b/g/n & IEEE 802.3u|
|Transmission rate:||300Mbps by 2T2R MIMO Wi-Fi|
|Bandwidth:||20/40 MHz or Auto|
|Output power:||802.11n: 23±2dBm for OFDM mode
802.11g: 25±2dBm for OFDM mode
802.11b: 27±2dBm for CCK mode
|Wi-Fi mode:||11b / 11g / 11n only
11b/g mixed or 11b/g/n mixed
|Concurrent user:||57 users|
|Computer:||Windows XP Vista 7 8/8.1 MAC OS OS X10.7+|
|Input power:||PoE: 48Volt|
|Cable length:||Support 100 meters|
|Wiring:||Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8|
Frequently Asked Question
The physical LAN interface has assigned to the same RJ45 port as PoE port in the default settings of OPLK1903 firmware.
You can change the interface assignment at physical settings of LAN interface.
In OpenWrt firmware version v15.05, the default WiFi master SSID will be deleted after connected to another Wi-Fi hotspot via the Wi-Fi relay function. So when turning on the Wi-Fi relay function, make sure add another Wi-Fi master SSID.
i. Click Scan on the Wireless Overview section, the router will start to scan for nearby Wi-Fi networks (2.4G only).
ii. Input WiFi password in the “WPA passphrase”. Choose default settings in the other sections. Then click Submit.
iii. Back to Network / Wifi to add a WiFi master SSID. Because the default WiFi master SSID has been removed after added a WiFi relay hotspot. Enter your WiFi SSID name on the ESSID, and choose Access Point mode. Make sure select LAN on the Network section. Then click Save & Apply.
