The package includes the below contents along with a 15-day money-back warranty and a 1-year quality guarantee.
You will also receive our zealous customer services and technical support!
-6%
4G Router LTE-A CAT12 Cellular Modem MIMO WiFi
US$319
The American cellular internet router has a Cat12 LTE cellular modem. Insert a SIM card to access fast-speed 4G LTE networks. It provides Gigabit LAN ports and 1200Mbps WiFi hotspots for massive users, home office appliances, and industrial machines.
⬡ Cat12 cellular modem has a max 600Mbps download speed and 150Mbps upload speed.
⬡ It creates standalone powerful WiFi hotspots on 2.4GHz and 5.8GHz.
⬡ High-gain aerials in an optimized array to bring the best signal transmission.
Cat12 Cellular Modem Router
Unlocked Cat-12 cellular modem 4G WiFi router with the Nano SIM card slot.
It has a global design and supports the main American cellular providers.
Start to choose your 4G SIM providers and data-plans flexibly!
Cat-12 Cellular Modem
Max 600Mbps download speed over LTE
Max 150Mbps upload speed – 3× of Cat4/6
Support worldwide cellular networks
Powerful 1200Mbps WiFi
Standalone hotspots on 2.4GHz & 5.8GHz
Robust wireless coverage for 50~100 yards
4G Internet WiFi Router
Rugged design for industrial applications
Open-sourced firmware & modular hardware
Gigabit Ethernet Ports
Supports landline WAN connection
Fast speed 4x LAN Ethernet ports
Serve massive 120 concurrent users
4G Cellular Router Cat12 Modem
4x MIMO and 3x Carrier Aggregation brings
Max 600Mbps download & 150Mbps upload speed
Support American cellular providers & worldwide roaming
Advanced mobile protocols and free cloud management

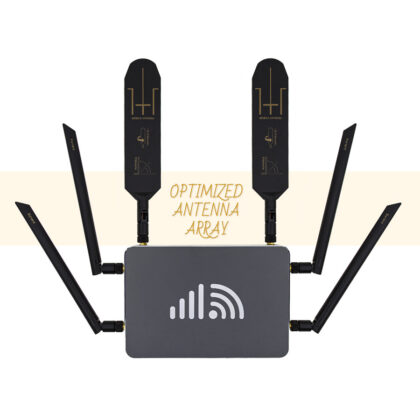

Enhanced 4G Signal Reception
Twistable high-gain MIMO 4G paddle antennas
Optimized excellent RF antenna array
SMA connectors support external aerials
Powerful 4G Router Firmware
Dedicated 4G router firmware with modem drivers and protocols.
Built-in supervisory program to redial and keep the connection active.
A safe & open-sourced firmware – With bootloader and full authority.
Contact us for the online demo.
At Home & Office
Support 4G SIM card and landline
1Gbps LAN & 1200Mbps WiFi
For Live Video Streaming
Max 150Mbps upload speed for online learning and video chat
For Camera & CCTV
Long-range WiFi coverage
Provides an internet to cameras
On Boat & Caravan
Travel globally with Cat12 router
Stay connected to the internet
Industrial Applications
M2M optimized work with 12VDC
WAN LAN & long-range WiFi
Shop / Hotel / Restaurant
Serve 120 users at the same time
Guest WiFi & 4G failover internet
4G Router Hardware Overview
Robust cellular modem router is designed for rugged environments and industrial applications.
The modular hardware design allows easily upgrading antennas and even cellular modules.
Package Contents - What You Will Get
Packing List
1 x Cat12 cellular modem
2 x 4G paddle antenna
4 x WiFi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – American plug
WEAK SIGNALS?
UPGRADE 4G LTE ANTENNA
High-gain directional panel antenna
Dual-polarized 4G LTE MIMO aerial
MORE OF LAN PORTS?
CONNECT TO A SWITCH
4-Port Gigabit PoE switch
Transmits data & 48V power on LAN cable
Be the first to review “4G Router LTE-A CAT12 Cellular Modem MIMO WiFi”
You must be logged in to post a review.
CAT12 LTE-A Modem
for Global 3G/4G Mobile Networks
This Cat-12 cellular module has a global design frequency spectrum. It supports the 4G router to connect to worldwide main mobile providers.
Cat-12 LTE-Advanced Modem
| Specification | 4G LTE | 3G |
| Bands: | FDD Bands: 1/2/3/4/5/7/8/9/12/13/14/ 17/18/19/20/21/25/26/28/ 29/30/32/66 TDD Bands: 38/39/40/41 |
Bands: 1/2/3/4/5/8/9/19 |
| Download Speed: | FDD: Max 600Mbps TDD: Max 430Mbps |
DC-HSDPA: Max 42Mbps WCDMA: Max 384Kbps |
| Upload Speed: | FDD: Max 150Mbps TDD: Max 30Mbps |
HSUPA: Max 5.76Mbps WCDMA: Max 384Kbps |
| Carrier Aggregation: | Download: 3x CA or 2x CA Upload: 2x CA |
/
|
| Signal Modulation: | 256QAM | 64QAM |
| Output Power: | Class 3 (23dBm±2dB) | WCDMA: 24dBm+1/-3dB |
| 3GPP Release: | 3GPP Release 11 | |
| Bandwidth: | 1.4/3/5/10/15/20MHz | |
Back View of the Router Motherboard
EZEN4X Series
EZEN4X Router Motherboard
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| System Memory: | DDR3 256Mbyte |
| Flash Memory: | SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -10 to +50°C Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x WAN & 4x LAN ports 6x Antenna sockets (SMA female) 2x Nano-SIM card slot 1x Reset button |
| Measurement: | Aluminum alloy enclosure: L188xW128xH25mm With aerial: L268xW168xH191mm |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27dBm | 26dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
|
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO | |
| Transmission Rate: | 1200Mbps | |
| Mesh Wi-Fi: | EasyMesh standard | |
RF Aerial Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 4 x Wi-Fi Antenna: |
2x 2.4GHz Wi-Fi Antenna: 2400~2500MHz 2x 5.8GHz Wi-Fi Antenna: 5150～5850MHz Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input Power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
DC Power Adapter
| Input: |
AC 100~240Volt 50/60Hz 0.5Amps |
| Output: | DC 12Volt 2.0Amps |
| Measurement: | 75.7*47.2*31.3mm / 140g Depending on the AC plug |
| AC Plug: | EU/GB/US/AU standard available Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
| Certification: | CE / UL / FCC / DOE / ERP / GS / BS / SAA |
4G Router Firmware
| Router Firmware: | OpenEzen Series - EV40xx |
| Log in: | IP address: 192.168.20.1 Password: root |
| Built-in Protocols: | Mobile: Mobile-Data (QMI) and PPP WAN: PPPoE / DHCP / Static LAN: Static with DHCP server (IPv4 & IPv6) |
| VPN Tunnel: | PPTP, L2TP, IPSec, OpenVPN, and WireGuard |
| Cloud Management: | Traversal Cloud and Ezen-Cloud (Optional) |
| Security: | Anti DDoS, SPI firewall, IP/Mac/Domain filter, IP & Mac bind |
| Port Forward: | Virtual server, port triggering, UPnP, DMZ |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | uBoot (192.168.1.1) |
