5G-NR

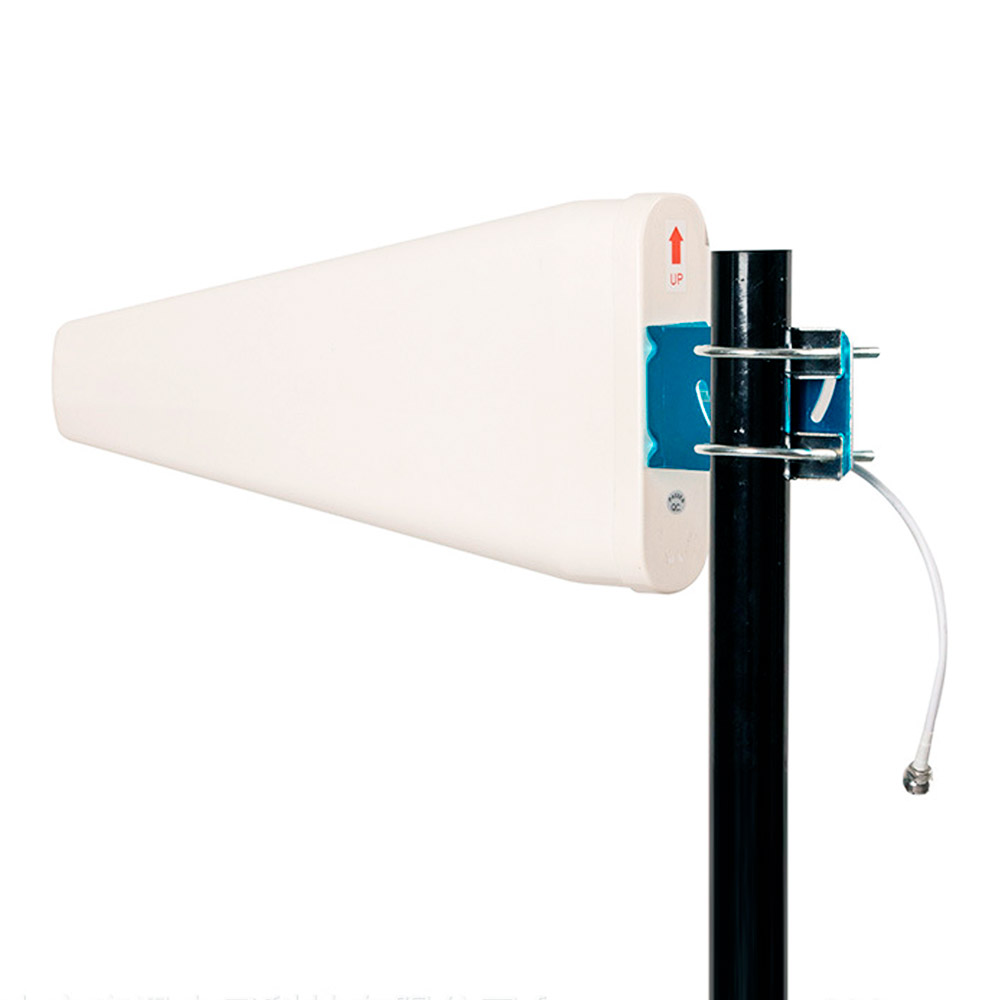

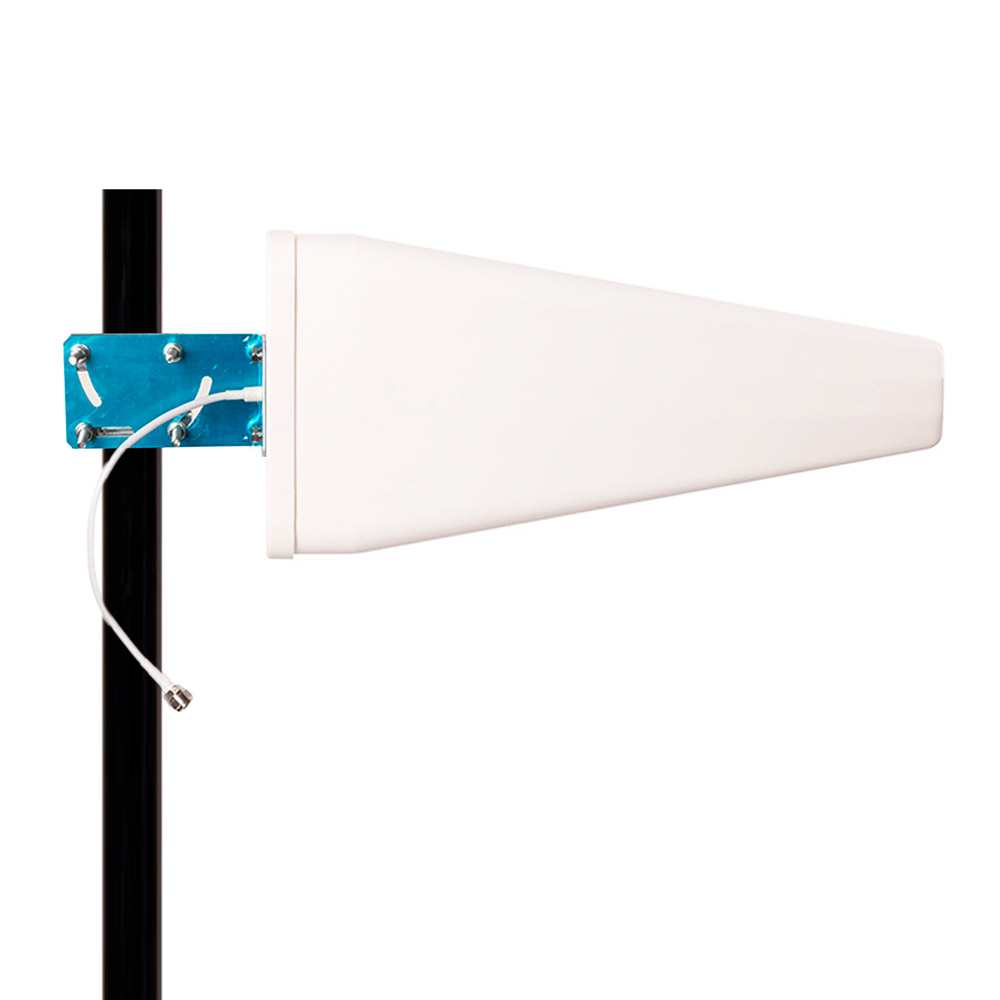

5G External Antenna Directional Yagi 8dBi
US$70
Outdoor 5G external antennas for 4G/5G SIM card routers. Receive better outdoor mobile signals for 5G routers in weak signal areas and avoid indoor RF interferences.
Ultra-wide global 4G/5G mobile frequencies 698-3800MHz
High-gain LPDA antenna feeds 8-8.5dBi and low VSWR
Directional 4G antenna supports MIMO antenna array
Boost mobile signal reception for 5G routers!
High-gain Directional 5G Antenna
Unlike regular mini-size omnidirectional antennas, the directional yagi antenna receives mobile phone signals from the defined direction where it points to. The external 5G yagi antenna has 8~8.5dBi high-gain log-periodic antenna feeds to maximize the signal reception performance for the 4G 5G SIM card routers. It offers effective signal improvement for weak signal areas.
Waterproof Outdoor 5G Antenna
The directional 5G external antenna has waterproof protection for long-term outdoor uses. Installing the 5G external antenna in the outdoor area receives the best possible mobile signals and avoids RF signal interference from indoor home appliances.
Ultra-wide Frequency 698~3800MHz
The 5G yagi antenna covers the ultra-wide frequency range from 698MHz to 3800MHz. It supports 3.5GHz frequency, the most common 5G Sub-6GHz frequency band used worldwide. In addition, it covers all 4G LTE bands and supports 4G fallback.
External 5G Antenna Specifications
| Frequency | Specification |
| 698-806MHz | Gain: 8 dBi Horizontal beam width: 90±15º Vertical beam width: 75º |
| 806-960MHz | Gain: 8 dBi Horizontal beam width: 90±15º Vertical beam width: 75º |
| 1710-2200MHz | Gain: 8.5 dBi Horizontal beam width: 75±15º Vertical beam width: 60º |
| 3300-3800MHz | Gain: 8.5 dBi Horizontal beam width: 75±15º Vertical beam width: 60º |
| 3rd PIM | ≤ -107 dBc |
| Impedance | 50 Ω |
| V.S.W.R. | ≤ 1.5 |
| Max input power | 50 Watt |
| Connector | N-Female |
| Radome | White color ABS material |

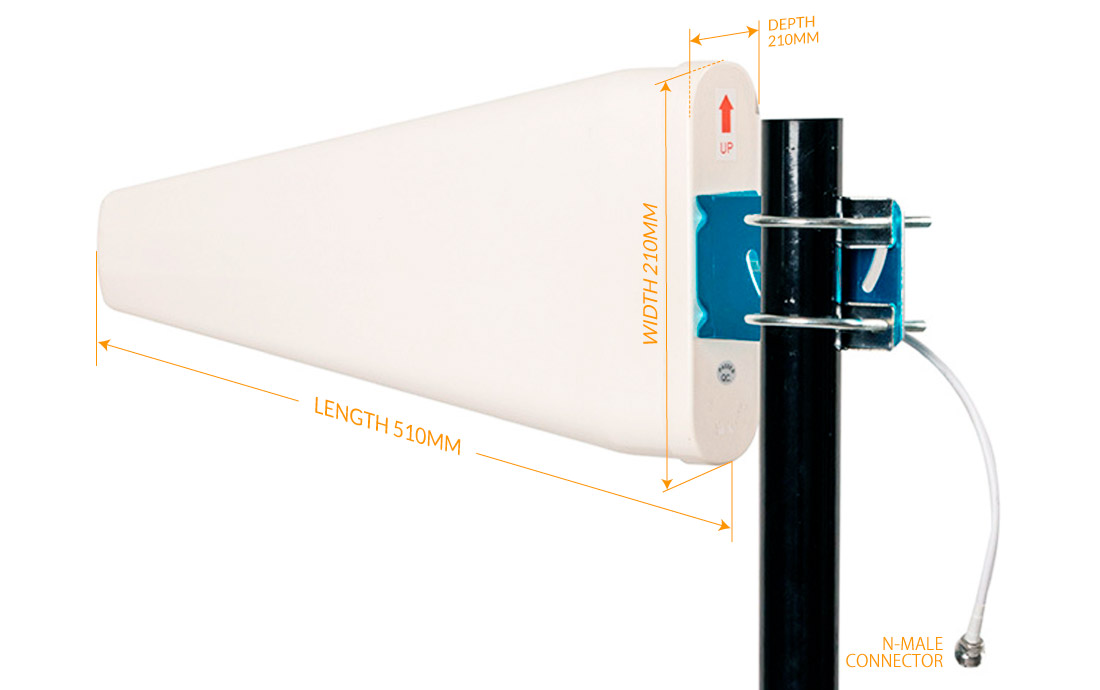

| Dimension | 520x210x70mm |
| Weight | 1200 gram |
| Operating Temp. | -30~45 ℃ |
Coaxial Cable & Connector
The 5G yagi antenna comes with a 30cm cable. You should use a jumper cable between the antenna and the 5G router to connect to indoor routers. We suggest using the coaxial jumper cable below 5~10 meters to avoid massive signal attenuation.
The default connector on the 5G yagi antenna is an N-female type. The jumper cable or pigtail should use the correct connector types if you want to connect the antenna to other connectors rather than N-male.
MIMO 5G Antenna Array
The 5G router uses 4X4 MIMO to aggregate different 5G frequency bands to work together and achieve the rated cutting-edge 5G mobile internet speed.
When replacing default mobile antennas on the 5G routers, the best practice is to rebuild a 4×4 MIMO antenna array, as the right side image shows. You could also use 2xMIMO configurations that reduce the 5G internet speed but should be fast enough for daily internet surfing.
Installing a single 5G yagi antenna is not suggested since the mobile internet speed will drop significantly.
