Dedicated Australian 4G 5G Modems
Support Australia mobile carriers:
Telstra, Vodafone, and broadband plan of Optus

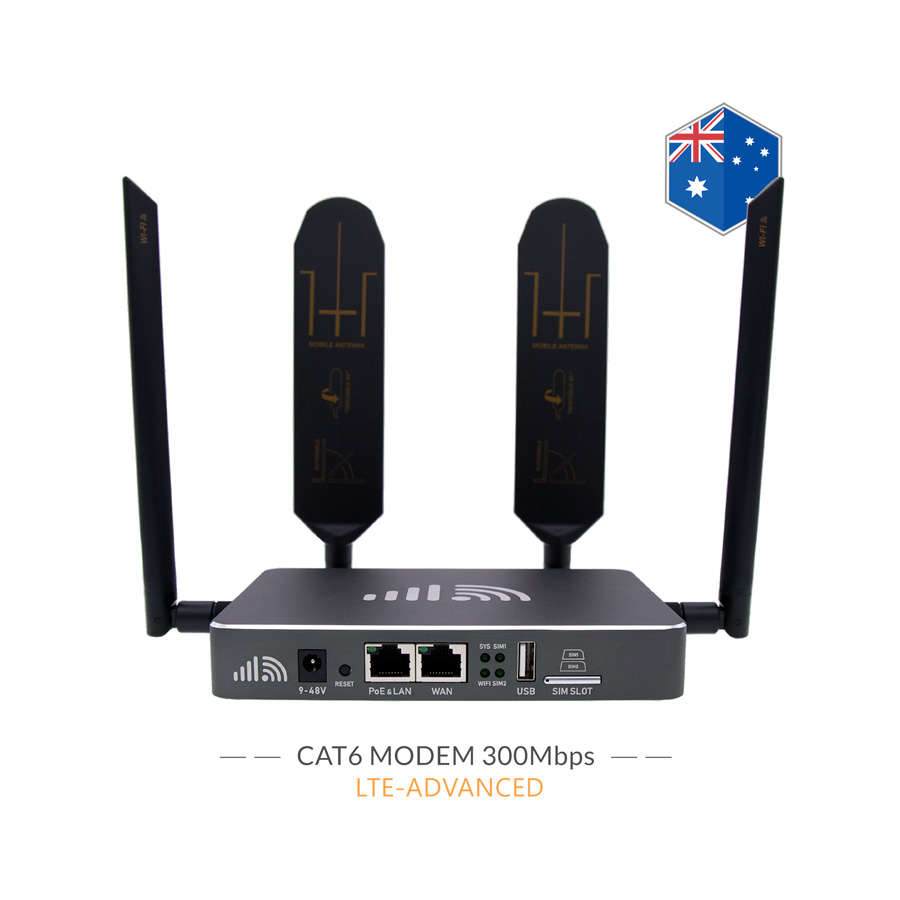

AU 4G Router LTE-Advanced Cat-6 Modem Dual SIM
US$219
The Australia 4G router is optimized for mobile internet in rugged environments. Cat.6 LTE-Advanced mobile modem connects to 3G 4G mobile networks with max 300Mbs download speed. It provides internet to up to 57 devices with LAN and powerful Wi-Fi in 100~200 yards.
Innovative high-gain mobile paddle antennas included and supported multiple mobile protocols, OpenVPN, SSH, and remote access.
The ideal industrial LTE router provides internet for home, office, shop, restaurant, caravan, and industrial applications.
4G Router with Dual-SIM and WiFi
LTE-Advanced Cat6 Australia Modem with long-range Wi-Fi
Australia 4G LTE Router
Powered by Cat.6 4G LTE modem
Dual SIM slots for Nano SIM cards
Twistable high-gain mobile LTE Antenna
Long-range Wi-Fi Hotspot
100~200yards long-range Wi-Fi coverage
Up to 27dBm (1-Watt) 2.4GHz Wi-Fi boosters
Replaceable SMA standard Wi-Fi antennas
WAN & 4G Backup Connections
Control priority of multiple Internet connections
Accepts input WAN & output LAN Ethernet
Access router remotely from Traversal Cloud
Industrial-grade Rugged Router
Built-in 6KV 1.5KV lighting protection module
Against extreme weather -40°C ~ +80°C
Wide-range power source 48V PoE & 9~48V DC
Cat.6 LTE-A Australia Modem
Australia standard high sensitivity broadband modem.
Cat.6 mobile modem with max 300Mbps download speed.
Connect to 3G & 4G LTE mobile networks in UK, Europe, EMEA, etc.
Dual Nano SIM card slot. One of the SIM cards is for backup.
Integrated with GobiNet, QMI, and PPP mobile protocols.
Support custom APN parameters.
Enhanced 4G Signal Reception
Wide-range LTE antennas – support all of the 4G frequencies.
Twist the paddle antenna direction and receive a better signal.
SMA standard sockets – support external antennas.
A Safe & Open-sourced Firmware
Powerful firmware for the mobile router, with QoS & OpenVPN.
Rooted with full authority, SSH, FTP, and software center.
Pre-built the bootloader. Contact us for an online demo test.
Home & Office
4G backup & WAN Internet
Supports up to 57 concurrent users
Industrial Applications
Provides LAN Ethernet & Wi-Fi
for IoT, CCTV, Vending machine, etc
Logistics & Caravan
Flexible installation & power sources
Enhanced mobile signal reception
Shop / Hotel / Restaurant
Wi-Fi network for guests
Enabled smart traffic control
Package Contents - What Will You Get
Package Contents
1 x Australia 4G router
Cat.6 Australian LTE modem
2 x Mobile paddle antenna
2 x Wi-Fi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – Australia plug
Compare Indoor Australian 4G Routers
The EZR23 series routers use various LTE modems, including CAT1/4/6. The popular CAT6 modem provides a max 300Mbps download speed, and the CAT1/4 modem is more suitable for low-traffic applications.
The EZR24 router has a built-in CAT12 LTE modem to provide a max 600Mbps download speed and faster upload speed.
| Router SKU | LTE Category | Maximum Download | Carrier Aggregation |
| EZR23-Y4O | CAT4 | 150 Mbps | No |
| EZR23-Y6O | CAT6 | 300 Mbps | 2x |
| EZR24-D012 | CAT12 | 600 Mbps | 3x |
3 reviews for AU 4G Router LTE-Advanced Cat-6 Modem Dual SIM
Add a review
You must be logged in to post a review.
Y6U Y6E & Y6O - Cat.6 LTE-A Mobile Modem
| LTE Category: | CAT.6 (3GPP E-UTRA Release 11) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20/B28/B32Rx Download max 300Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 260Mbps / Upload max 28Mbps |
| 2xCA Carrier Aggregation: |
B1+B1/B5/B8/B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B20+B32Rx | B38+B38 B40+B40 | B41+B41 |
| 3G Bands: | B1/B/3B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | EMEA: Europe, the Middle East and Africa APAC: Asia-Pacific (Excluding Japan and CMCC) and Brazil |
| Certification: | CE / RCM / GCF / Deutsche |
CAT.6 Modem For EMEA APAC & Brazil
EZEN3X - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Humidity: | 10%~95% RH |
| Measurement: | Router 230x175x70mm / 980g |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
Power Sources
| DC Adapter: |
Input: 110~240V / Output 12V 2A (Include) |
| PoE Adapter: |
Input: 110~240V / Output: 48V 0.5A (Exclude) |
| LAN Cable: | 3⅓ feet LAN cable included |
Software Systems
| Router Firmware: | OpenEzen System |
| Log in: | IP address: 192.168.20.1 Password: root |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | EzBoot (192.168.1.1) |
You may also like…

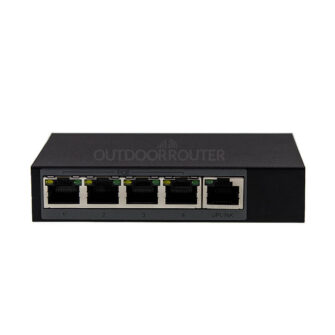

| SKU: EZT405 | |
| PoE 48/52Volt - IEEE802.3af/at |  |
| 5x 10/100/1000Mbps RJ45 |  |
| 65watt total power budget |  |
-5%
| SKU: EZR24-D012 | |
| Cat12 4G modem download 600Mbps |  |
| 3x times upload speed 150Mbps |  |
| Dual 2.4/5.8G Wi-Fi 1200Mbps |  |
| WAN & 4xLAN Gigabit RJ45 Ports |  |
| SKU: EZT415 | |
| Wideband freq 698~2700MHz |  |
| High-gain 5dBi - low VSWR ≤ 1.5 |  |
| All-directional 360° Beamwidth |  |
| SKU: EZT4MP | |
| MIMO panel antenna 698~2700MHz |  |
| High-gain 6~8dBi - VSWR ≤ 1.5 |  |
| Wide beamwidth - H85±10° V65±10° |  |
Howard Kenny –
Excellent and affordable fully featured 4g router for low signal areas!
Finally, a 4g router that combines everything needed for areas with poor signal quality. Imperatives like the ability to connect external MiMo 4g and dual band WiFi antennae are there, as well as built in 4g SIM slot and excellent powerful firmware. The design focus is on doing the job exceptionally well and providing a device that really does deliver the goods, rather than being a pretty room decoration providing un-needed internal WiFi only gaming attributes.
The Australia Industrial router picks up a weak signal (<2 bars) but provides 40 – 50 mBs over dual band 2.4ghz and 5.8ghz WiFi across a large and rambling country home. This is the 4th "specialist" router we've tried for this purpose – and the only one that does the job well. I'm sure there are probably others out there in the enterprise solution world, but this unit is affordable and easy to set up and use in a home environment.
Adam Randall (verified owner) –
I am in a marginal area where depending on the way the wind is blowing depends on if I get a good or bad signal.
This router is amazing. For the last 6 months I have averaged about 4mbps on Amaysim/Optus.
Plugged the router in and am getting 45mbps and 10mbps upload. They do not necessarily mention the 4G signal improvement capabilities & I took ages to take a gamble & am glad I did.
Also has a lot of settings and features & the package arrived in faster time than I was expecting.
David (verified owner) –
So far this router is working well. The online manual is easy to follow up with.
