The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports!
-5%
AU 4G Router CAT12 Broadband LTE-A SIM Modem
US$313
The Australia 4G modem WiFi router has a broadband Cat12 mobile modem and SIM card slots. Insert a SIM card to access fast-speed mobile networks. It provides Gigabit Ethernet and 1200Mbps WiFi hotspots for massive users, home office appliances, and industrial machines.
Cat-12 Australia 4G router has a max 600Mbps download speed and 150Mbps upload speed.
It creates long-range strong WiFi hotspots on 2.4GHz and 5.8GHz.
It has multiple external antennas in an optimized array that brings the best signals.

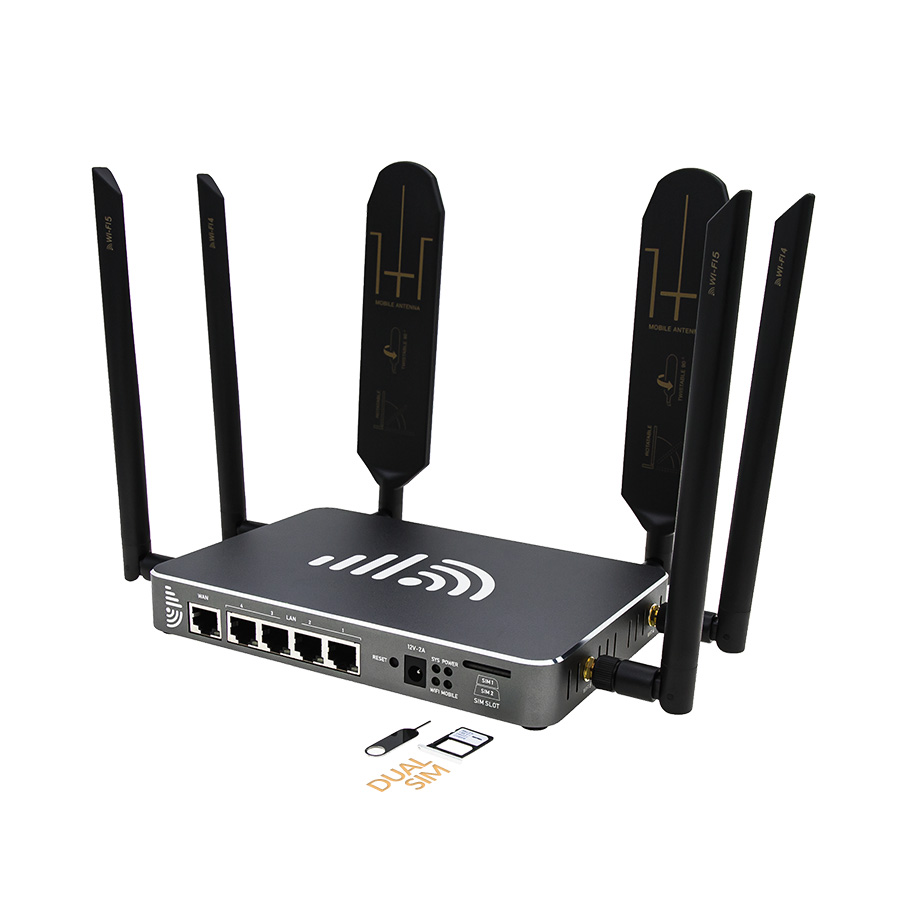

4G Cat12 Modem WiFi Router
Unlocked Australia 4G modem with broadband Cat12 mobile modem and nano SIM card slot.
It support all of the main Australian mobile carriers. Such as Optus, Telstra, and Vodafone.
Start to choose your mobile SIM providers and data-plans flexibly!
Cat12 4G Broadband Modem
Max 600Mbps download speed over LTE
Max 150Mbps upload speed – 3× of Cat4/6
Support all of Australian 3G/4G networks
Standalone 1200Mbps WiFi
Long-range WiFi hotspots on 2.4GHz & 5.8GHz
Robust wireless coverage for 50~100 yards
Industrial 4G WiFi Router
Rugged design for industrial applications
Open-sourced firmware & modular hardware
Gigabit Ethernet Ports
Supports landline WAN connection
Fast speed 4x LAN Ethernet ports
Serve massive 120 concurrent users
4G WiFi Router with Cat12 Modem
4x MIMO and 3x Carrier Aggregation brings
Max 600Mbps download & 150Mbps upload speed
Support Australian mobile carriers & worldwide roaming
Advanced mobile protocols and free cloud management
Enhanced Mobile Signal Reception
Twistable high-gain MIMO 4G paddle antennas
Optimized excellent RF antenna array
SMA connectors support exterior aerials
Powerful 4G Router Firmware
Dedicated 4G router firmware with modem drivers and protocols.
Built-in supervisory program to redial and keep the connection active.
A safe & open-sourced firmware – With bootloader and full authority.
Contact us for the online demo.
At Home & Office
Support 4G SIM card and landline
1Gbps LAN & 1200Mbps WiFi
For Live Video Streaming
Max 150Mbps upload speed for online learning and video chat
For Camera & CCTV
Long-range WiFi coverage
Provides an internet to cameras
On Boat & Caravan
Travel w/ Cat-12 4G router globally
Stay connected to the internet
Industrial Applications
M2M optimized work with 12VDC
Ethernet & long-range WiFi
Shop / Hotel / Restaurant
Serve 120 users at the same time
Guest WiFi & 4G failover internet

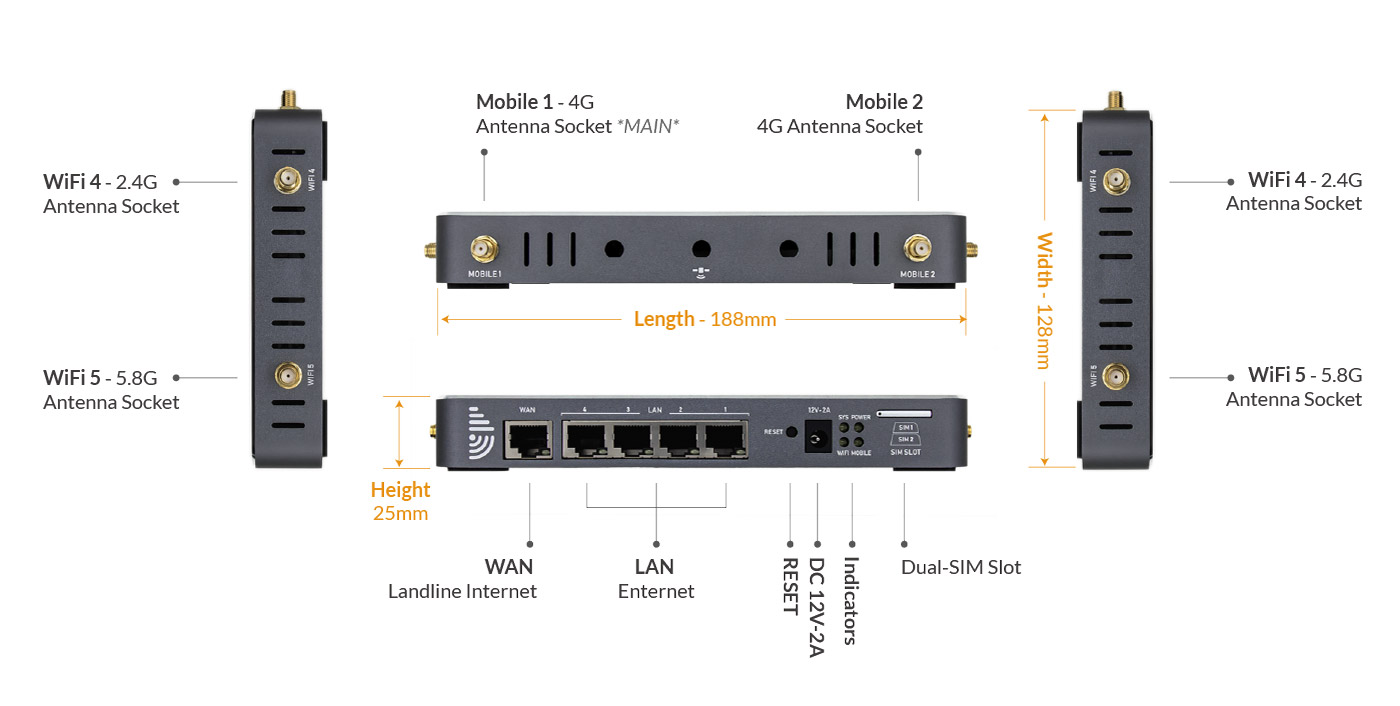

4G Router Hardware Overview
Australia 4G modem WiFi router is designed for rugged environments and industrial applications.
The modular hardware design allows easily upgrading antennas and even mobile modems.
Package Contents - What You Will Get
Packing List
1 x Australia 4G Cat12 router
2 x Mobile paddle antenna
4 x WiFi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – Australian plug
Compare Indoor Australian 4G Routers
The EZR23 series routers use various LTE modems, including CAT1/4/6. The popular CAT6 modem provides a max 300Mbps download speed, and the CAT1/4 modem is more suitable for low-traffic applications.
The EZR24 router has a built-in CAT12 LTE modem to provide a max 600Mbps download speed and faster upload speed.
| Router SKU | LTE Category | Maximum Download | Carrier Aggregation |
| EZR23-Y4O | CAT4 | 150 Mbps | No |
| EZR23-Y6O | CAT6 | 300 Mbps | 2x |
| EZR24-D012 | CAT12 | 600 Mbps | 3x |
1 review for AU 4G Router CAT12 Broadband LTE-A SIM Modem
Add a review
You must be logged in to post a review.
CAT12 LTE-A Modem
for Global 3G/4G Mobile Networks
This Cat-12 cellular module has a global design frequency spectrum. It supports the 4G router to connect to worldwide main mobile providers.
Cat-12 LTE-Advanced Modem
| Specification | 4G LTE | 3G |
| Bands: | FDD Bands: 1/2/3/4/5/7/8/9/12/13/14/ 17/18/19/20/21/25/26/28/ 29/30/32/66 TDD Bands: 38/39/40/41 |
Bands: 1/2/3/4/5/8/9/19 |
| Download Speed: | FDD: Max 600Mbps TDD: Max 430Mbps |
DC-HSDPA: Max 42Mbps WCDMA: Max 384Kbps |
| Upload Speed: | FDD: Max 150Mbps TDD: Max 30Mbps |
HSUPA: Max 5.76Mbps WCDMA: Max 384Kbps |
| Carrier Aggregation: | Download: 3x CA or 2x CA Upload: 2x CA |
/
|
| Signal Modulation: | 256QAM | 64QAM |
| Output Power: | Class 3 (23dBm±2dB) | WCDMA: 24dBm+1/-3dB |
| 3GPP Release: | 3GPP Release 11 | |
| Bandwidth: | 1.4/3/5/10/15/20MHz | |
Back View of the Router Motherboard
EZEN4X Series
EZEN4X Router Motherboard
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| System Memory: | DDR3 256Mbyte |
| Flash Memory: | SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -10 to +50°C Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x WAN & 4x LAN ports 6x Antenna sockets (SMA female) 2x Nano-SIM card slot 1x Reset button |
| Measurement: | Aluminum alloy enclosure: L188xW128xH25mm With aerial: L268xW168xH191mm |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27dBm | 26dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
|
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO | |
| Transmission Rate: | 1200Mbps | |
| Mesh Wi-Fi: | EasyMesh standard | |
RF Aerial Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 4 x Wi-Fi Antenna: |
2x 2.4GHz Wi-Fi Antenna: 2400~2500MHz 2x 5.8GHz Wi-Fi Antenna: 5150～5850MHz Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input Power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
DC Power Adapter
| Input: |
AC 100~240Volt 50/60Hz 0.5Amps |
| Output: | DC 12Volt 2.0Amps |
| Measurement: | 75.7*47.2*31.3mm / 140g Depending on the AC plug |
| AC Plug: | EU/GB/US/AU standard available Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
| Certification: | CE / UL / FCC / DOE / ERP / GS / BS / SAA |
4G Router Firmware
| Router Firmware: | OpenEzen Series - EV40xx |
| Log in: | IP address: 192.168.20.1 Password: root |
| Built-in Protocols: | Mobile: Mobile-Data (QMI) and PPP WAN: PPPoE / DHCP / Static LAN: Static with DHCP server (IPv4 & IPv6) |
| VPN Tunnel: | PPTP, L2TP, IPSec, OpenVPN, and WireGuard |
| Cloud Management: | Traversal Cloud and Ezen-Cloud (Optional) |
| Security: | Anti DDoS, SPI firewall, IP/Mac/Domain filter, IP & Mac bind |
| Port Forward: | Virtual server, port triggering, UPnP, DMZ |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | uBoot (192.168.1.1) |
