Outdoor 5G Modem WiFi6
Broadband 5G mobile internet gateway
Outdoor waterproof WiFi6 with Ethernet
2025
NEW
NEW

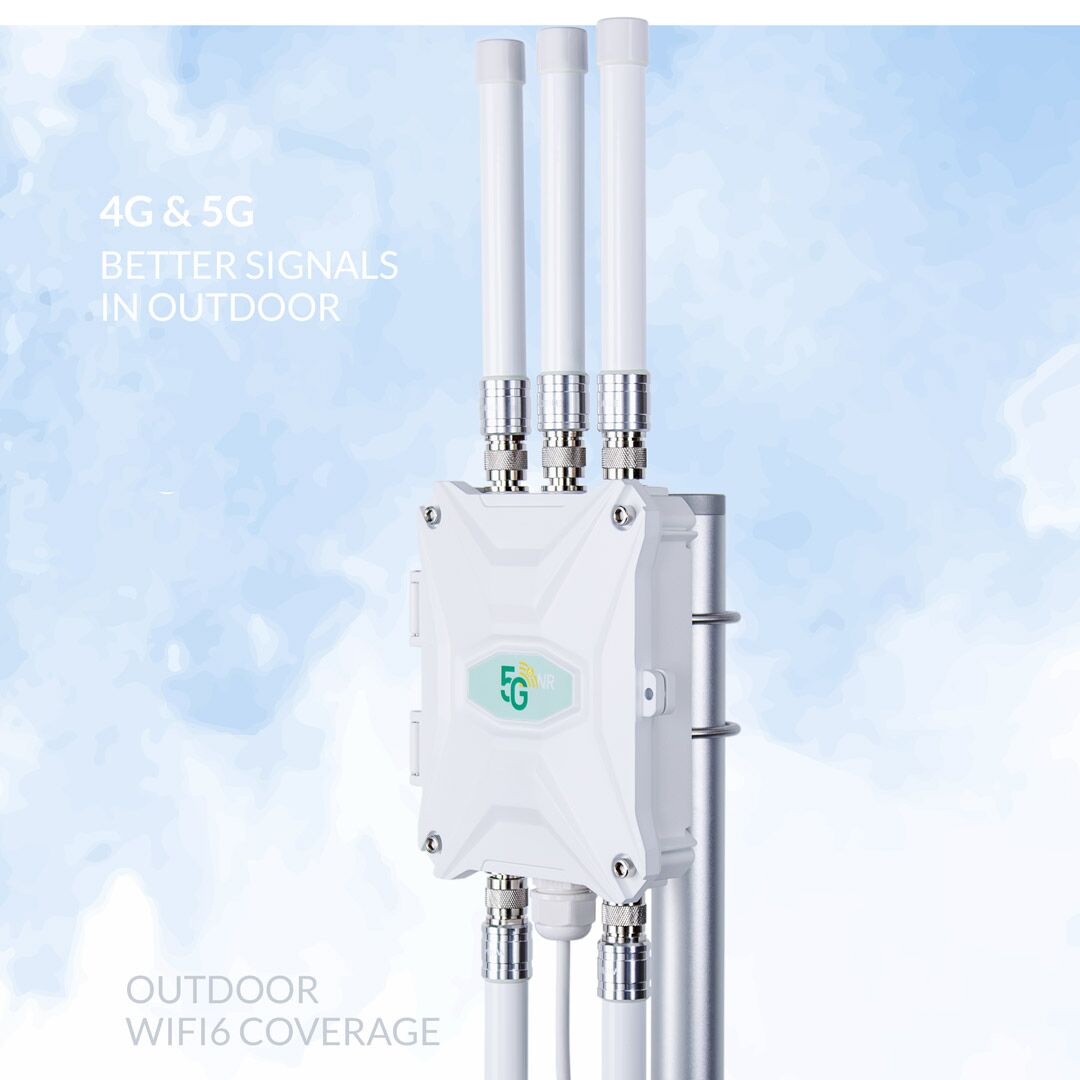

Outdoor 5G Modem WiFi6 Mobile Internet Router
US$475 – US$495
2025 new outdoor 5G modem WiFi6 internet gateway in a waterproof enclosure. It has an X62 5G-NR mobile modem to access 4G/5G networks and share mobile internet with 200+ clients on 3000Mbps WiFi6 hotspots and indoor wired Ethernet.
Outdoor 5G WiFi modem supports auto SIM card switching and LTE fallback. It’s ideal for providing flexible or temporary backup internet to homes, shops, and industrial facilities.
4G/5G Modem Dual SIM Slots
Download speed max 3.4 Gbps on 5G NR Sub-6 bands. Dual SIM card slots – Supports both 5G SA and NSA networks and up to CAT19 LTE fallback.
Outside 5G WiFi6 Hotspots
High-power 3000Mbps WiFi6 chipset covers 100–300 meters outdoors. 2×2 MIMO FRP antennas broadcast on 2.4G and 5.8G bands for 200 clients.
Outdoor Waterproof Modem
The most rugged outdoor IP67 waterproof enclosure integrates surge protection for demanding deployments and withstands extreme weather.
PoE Ethernet and DC Power
Powered by a 1 Gbps PoE injector that brings wired Ethernet indoors. Also supports a wide range of alternative 9–48 Volt DC power on the DC socket.
Your Outdoor 5G WiFi6 Gateway
The outdoor 5G modem offers high-speed internet by accessing the latest 5G-NR mobile network for robust broadband internet. It provides external WiFi6 hotspots and wired indoor Ethernet for phones, computers, and existing networks as backup mobile internet.
Go Outdoor – Better Signals & Coverage
Due to structural barriers and wireless interference from appliances, indoor mobile signals are often weak and unstable, especially in basements and remote areas. In contrast, the 5G modem router is placed outdoors and directly captures optimal mobile signals on its external antennas from all directions. It has standalone 3000Mbps WiFi 6 hotspots that broadcast 24–26 dBm high wireless power and cover distances of up to 100–300 meters outside.
PoE Power with Wired Ethernet
Complying with 802.3at PoE standard, the outdoor 5G WiFi6 modem uses a LAN cable to send 52Volt 0.5A electric power safely and receive 1000 Mbps Ethernet data without RF attenuation. It supports a max 50-meter LAN cable. You can also power it with a PoE switch and use a PoE extender for a longer cable distance.
Outdoor 5G WiFi6 Modem Applications
Broadband 5G SIM Internet
Bring high-speed and reliable 5G mobile internet for homes, offices, shops, and rural internet for remote areas with no landlines.
Waterproof Internet Gateway
Rugged 5G WiFi 6 modem with waterproof and surge protections for demanding applications like IoT, industrial automation, and outdoor cameras.
Dual SIM Backup Internet
5G modem with dual SIM card slots and 3G/4G fallback enhances internet reliability for remote work, transportation, emergency services, etc.
Outdoor Internet for Events
Quickly set up temporary internet with powerful WiFi hotspots for outdoor gatherings like festivals, concerts, and markets.
Outdoor Waterproof 5G Modem
The IP67-certified outdoor waterproof enclosure is made of lightweight, anti-corrosion aluminum with a white coating.
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
Designed for outdoor uses. It features durable seals and gaskets that protect against water and dust. The backside heat sink ensures continuous high performance even in challenging environments.
5G Modems Support Global Bands
Two models of 5G NR modems for selection. 5G-NR modems provide seamless 4G/5G mobile network connectivity with an average 300–500 Mbps download speed in field tests. The dual SIM card slots allow you to quickly switch to the backup SIM card when the primary SIM is offline.
Future-proofing X62 Baseband 5G Chipset
Powered by Qualcomm X62 broadband module, the 5G modems support 5G NA/NSA on Sub-6 GHz frequency bands with 3G and 4G-LTE fallback.
| Modem: | 520GL | 520EU |
| Max Download: | 5G – NSA 3.4 Gbps / SA 2.4 Gbps 4G – 1.6 Gbps / 3G – 42 Mbps |
|
| Max Upload: | 5G – NSA 550 Mbps / SA 900 Mbps 4G – 200 Mbps / 3G – 5.76 Mbps |
|
| 5G Bands: | N1 2 3 5 7 8 12 13 14 18 20 25 26 28 29 30 38 40 41 48 66 70 71 75 76 77 78 79 | N1 3 5 7 8 20 28 38 40 41 71 75 76 77 78 |
| 4G Bands: | B1 2 3 4 5 7 8 12 13 14 17 18 19 20 25 26 28 29 30 32 66 71 B34 38 39 40 41 42 43 48 |
B1 3 5 7 8 20 28 32 71 B38 40 41 42 43 |
| Workable Region: | Global, including USA and Canada | UK, Europe, Australia, EMEA & APAC regions |
Secure Open Source Router Firmware
Built on OpenWrt’s secure architecture, the 5G WiFi6 modem firmware features root access privileges with a free remote management tool.
Integrated advanced mobile modem protocols and command sets. Keepalive program of mobile watchdog. Select and lock 4G/5G networks and bands. Allow mobile IP passthrough.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Contact us to discuss your specific requirements and request a demo for preview. Wholesale service provides flexible volumes.

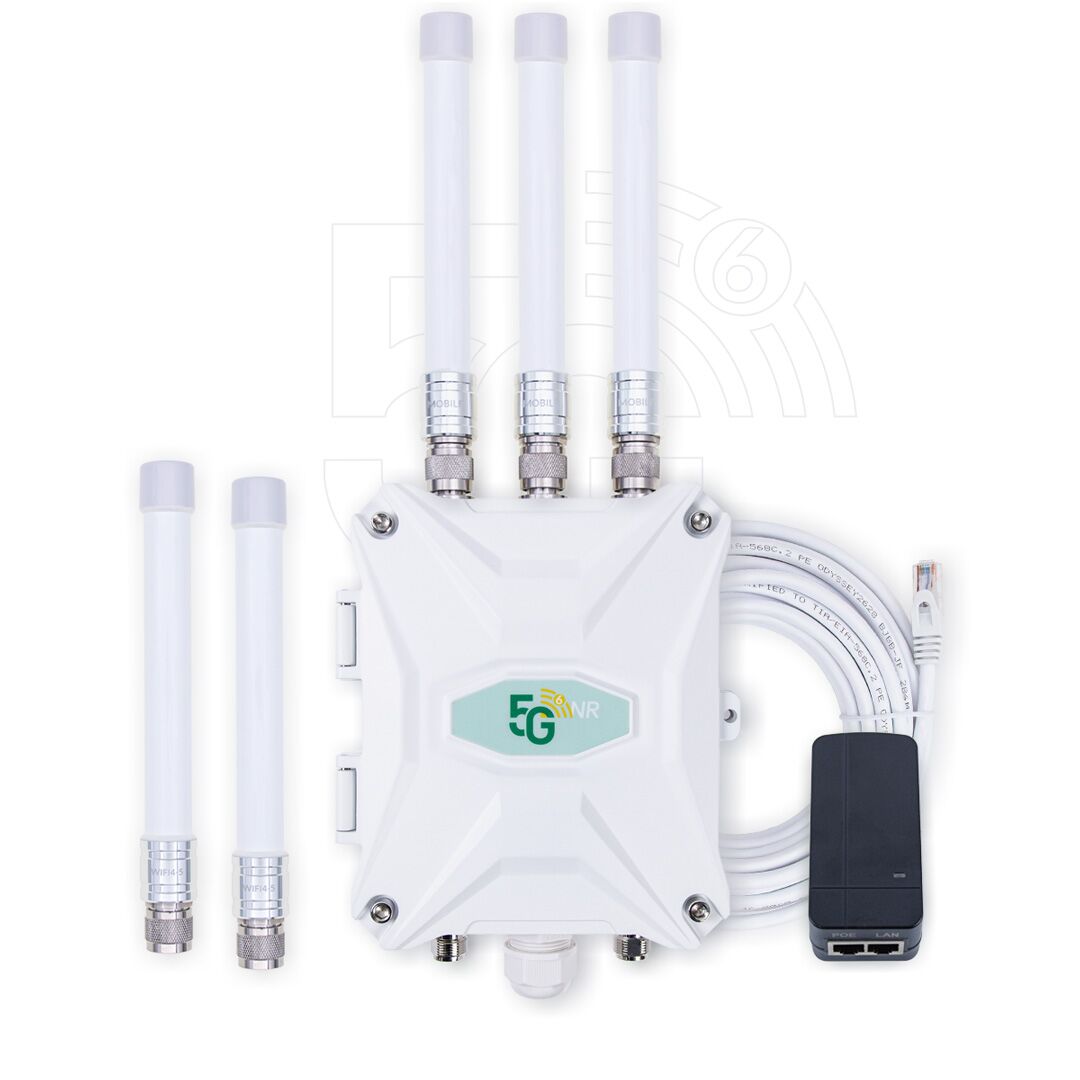

What Will You Get In The Package
When you order the EZR35-5G router, you’ll receive the complete package below, backed by our 15-day money-back warranty and 1-year quality guarantee. Our dedicated team provides enthusiastic customer service and technical support to ensure your success with the product!
Package Contents
1 x Outdoor 5G WiFi6 Modem
3 x Omni FRP 5G Antenna
2 x Omni FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x 1Gbps PoE Injector
1 x Mounting Set & Tool
Be the first to review “Outdoor 5G Modem WiFi6 Mobile Internet Router”
You must be logged in to post a review.
EZR35-5G Online Manual
outdoor.router.works/ezr35-5g
Live Demo
Contact us to acquire an online live demo
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x 5G Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
