LPDA Outdoor 4G Cellular Log-periodic Antenna
$50 – $70
Optimized to works with 4G Router. Improve 3G/4G signal reception on the 4G router by 2 times. Ideal for weak signal areas.
▫Wideband cellular frequency 698~2700MHz
▫Supports all of 2G/3G/4G mobile networks
▫High-gain 9.5dBi and low V.S.W.R <1.5
▫Directional antenna with narrow beamwidth
▫Waterproof protection designed for outdoor
Got a weak 3G/4G signals? Upgrade the cellular antenna on your 4G router!
Improve the cellular signal reception for the 4G Router. The directional log-periodic antenna receives 3G/4G signals from a defined direction with a narrow-angle. The optimized 4G router antenna supports frequency range from 698MHz to 2700MHz. It can work on universal range 2G/3G/4G mobile networks.
The default cellular antenna on our 4G router is 5dB FRP antenna which receives signals from all directions. The external antennas on the regular indoor 4G router and home WiFi routers are 3~5dB only. The cellular log-periodic antenna has a higher-gain up to 9.5dB. It can help you get 2 times stronger signal on the 4G routers.

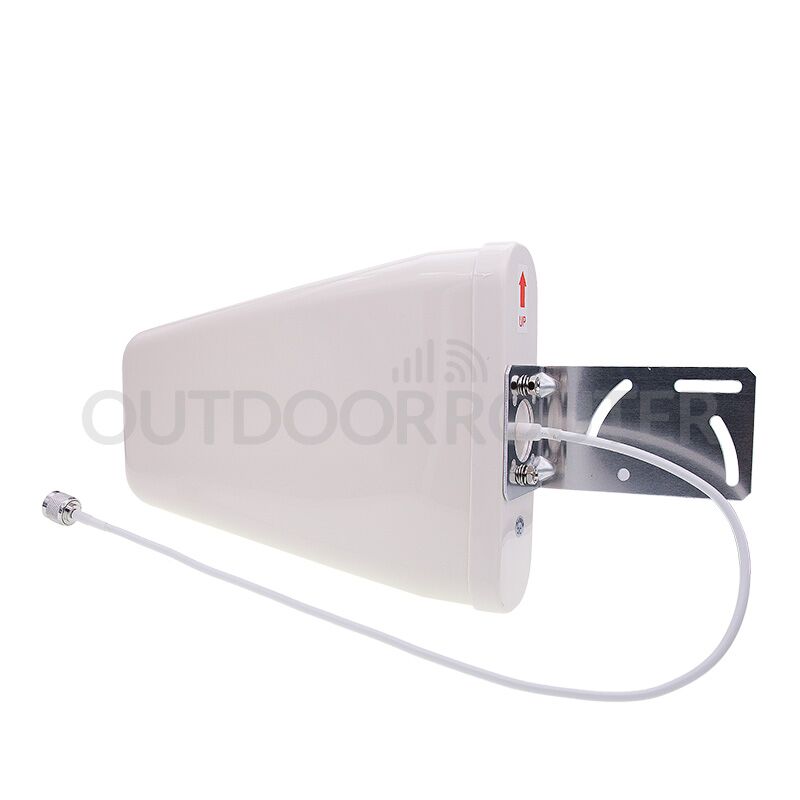

The 4G router log-periodic antenna comes with the mounting kit to install on diameter 20~40mm pole in the outdoor. You should point the antenna towards the nearest mobile phone mast/tower or point to the strongest cellular signal source.
LPDA Log-Periodic Antenna Specifications
| Frequency | 698~960/1700~2700MHz |
| Polarization | Vertical |
| Gain | 9.5dBi |
| V.S.W.R | ≤ 1.5 |
| Max Power | 100 Watt |
| Impedance | 50 ohm |
| Lighting Protection | Direct Ground |
| Connector | N-female |
| Radome Material | PVC |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | 390x210x65mm |
| Weight | 100 gram |
| Temperature | -40~70 degree |
Horizontal Working Pattern
Vertical Working Pattern
Coaxial Cable

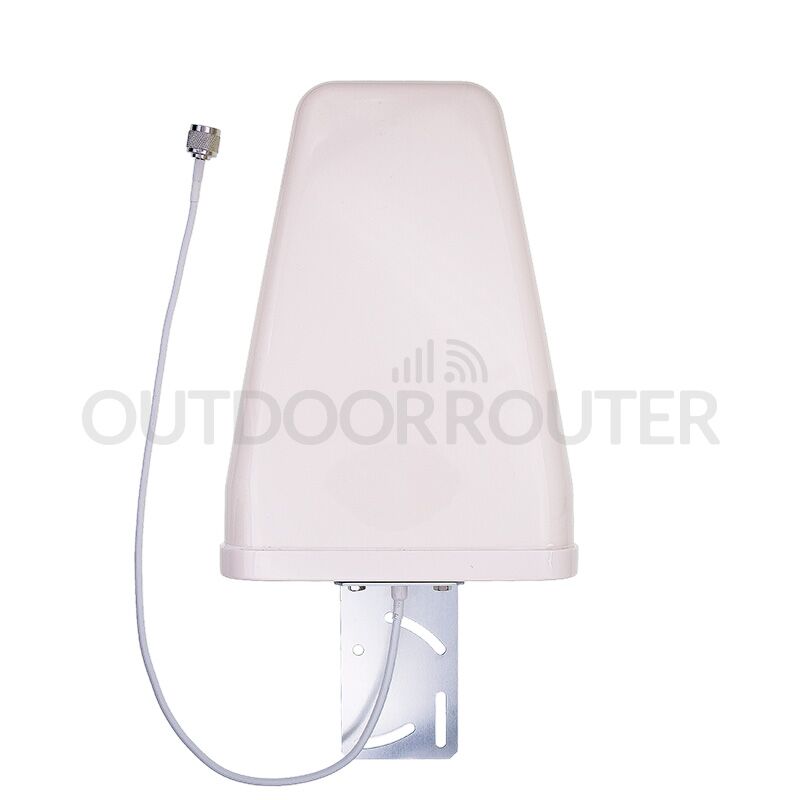

We provide 1-meter free coaxial cable. You can upgrade the cable to 5-meter cable. The cable connection between log-periodic antenna and 4G router like the right-side image showing.
Connectors

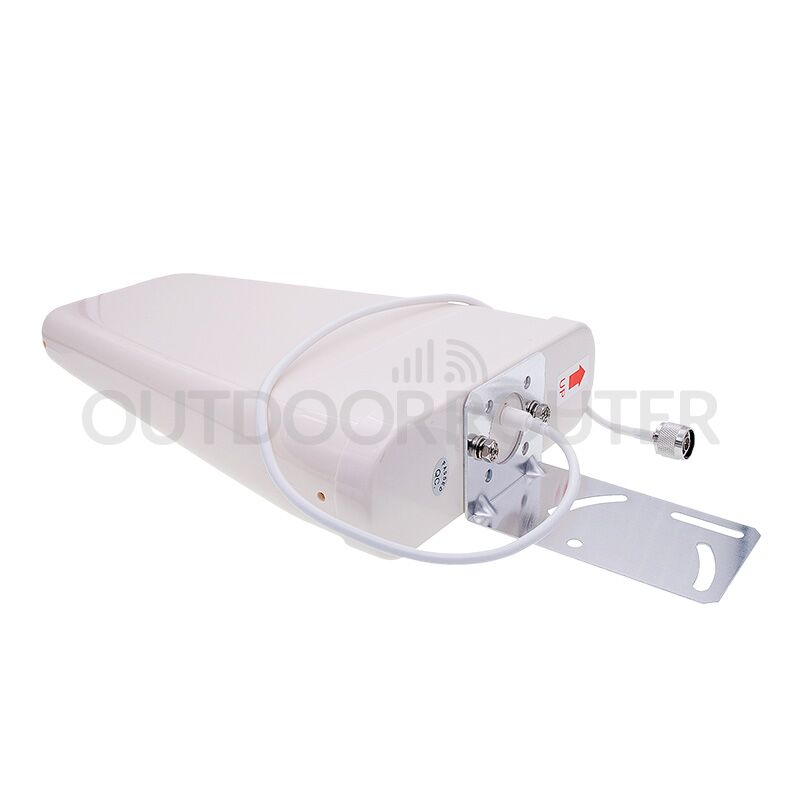

The default connector on log-periodic antenna is N-Female type, same as the connector on our outdoor 4G router. If you want to connect the antenna to other types of connectors, like SMA, we can provide you the connector adapter.
