Powered by quad-core CPU, IPQ4019.
1Gbps rated speed on LAN/WAN and PoE ports.
Power by 52V PoE or 12V DC adapter.
MU-MIMO 2.4GHz & 5.8GHz WiFi radios.
High power 26~27dBm covers 150~300 yards.
Support EasyMesh standard Wi-Fi network.
Built-in dual modem sockets with aggregation.
M.2 is for 5G modem and Cat12+ LTE modem.
Mini PCI-e supports Cat4 and Cat6 modems.

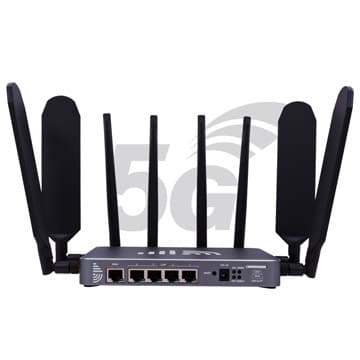

The revolutionary 5G NR router has an enterprise-grade 5G mobile modem inside. It connects to a high-speed 5G network and provides gigabit internet to boost your network with fast data streaming and low latency. It also supports downgrade 4G LTE network up to Cat 20.
Quectel RM500Q
The 5G NR mobile modem is adopting the 3GPP Rel. 15 LTE technology. It supports both 5G NSA and SA modes and covers all mainstream carriers worldwide.
Embedded abundant protocols and industrial-grade interfaces provide fast-speed and dependable connectivity to 4G LTE and 5G NR mobile networks.
Network Bands
| 5G NR: | n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/ n66/n71/n77/n78/n79 |
| 4G-LTE: | B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ B12(17)/B13/B14/B20/B25/B26/B28/ B29/B30/B32/B38/B39/B40/B41/B42/ B43/B46/B48/B71 |
4xMIMO Modem
| 5G NR: | n1/n2/n3/n7/n41/n66/n77/n78/n79 |
| 4G-LTE: | B1/B2/B3/B4/B7/B25/B30/B38/B39/ B40/B41/B42/B43/B48/B66 |
| Modulation: | Download 256QAM | Upload 64QAM |
| 3G WCDMA: | B1/B2/B3/B4/B5/B8/B9/B19 |
Modem Output Power
| 5G NR: | Class 2 for n41/n77/n78/n79; Class 3 for other 5G NR bands |
| 4G-LTE: | Class 3 for FDD-LTE and TDD-LTE |
| 3G WCDMA: | Class 3 for WCDMA |
| Protocol: | PPP/QMI; Coming NTP/TCP/UDP/FTP/HTTP/PING/HTTPS/SMTP/MMS etc |

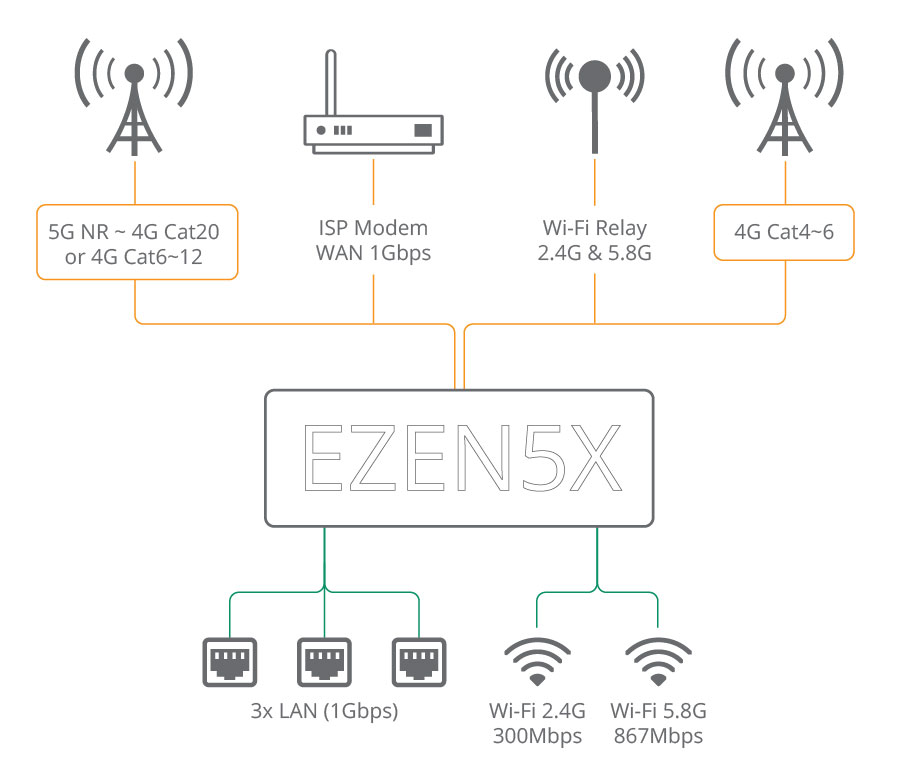

How Ezen5X link aggregation works
Link aggregation also called link bonding. Ezen5x router bundles multiple internet links together as a single traffic flow to utilize all of them simultaneously. It can bundle not only 4G 5G mobile modems but also bundle Wi-Fi relay and landline ISP modem.
When installing 2x mobile modems in the Ezen5x router, they are bonding together to connect multiple cellular networks and increase the internet speed and connection reliability.
You can also turn on the backup mode to use one of the mobile modems and use the Wi-Fi/WAN connection as the backup link when the main modem link is offline.
With the multi-WAN feature, you can configure another physical LAN port act as WAN. Each of the WAN interfaces has a different subnet. It allows you to connect your Ezen5x router to more than one ISP landline modems.
| CPU Chipset: | Atheros quad-core IPQ4019 |
| Clock Speed: | 717MHz - 4x ARM Cortex A7 |
| System Memory: | DDR3 512MByte |
| Flash Memory: | SPI FLASH 32M |
| Modem Socket: | 1x M2.0 & 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| Indicator: | System / Wi-Fi4 / WiFi5 / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Humidity: | 10%~90% RH (non-condensing) |
| Measurement: | Ezen-5X Motherboard 185x135mm |
| Physical Interface: | 1Gbps - 1xWAN, 1xPoE&LAN, 2xLAN 1x USB2.0 (3.7Volt) 1x 4-pin TTL (3.3Volt) 1x TF memory card slot 2x Nano-SIM card slot 1x Reset button |
| Frequency: | 2.4GHz: 2412~2484 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27dBm | 26dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO |
| Transmission Rate: | 1200Mbps |
| Mesh Wi-Fi: | EasyMesh standard |
| PoE Adapter: | PoE IEEE802.3at |
| DC Socket: | 12Volt 2Amps |
| Router Firmware: | OpenEzen System |
| Work Mode: | Router and access point |
| DHCP: | Server, client, DHCP client list, address reservation |
| Security: | Anti DDoS, SPI firewall, IP/Mac/Domain filter, IP & Mac bind |
| VPN: | OpenVPN, PPTP, L2TP, IPSec |
| Port Forward: | Virtual server, port triggering, UPnP, DMZ |
| Computer: | Windows / Mac / Linux / etc |
