5-Port Gigabit PoE Switch 52V AF-AT
US$50
Conform to IEEE802.3af/at PoE standards, the 5-port gigabit PoE switch transmits data and DC power on a single LAN cable. Quickly expand your 4G/5G SIM card router network to PoE and Ethernet enabled devices.
5x 1000Mbps Gigabit RJ45 ports
With 4x PoE(+) ports and 1x uplink port
IEEE802.3af/at PoE standards, input 52VDC
Unmanaged PoE switch, plug-and-play
EXPAND YOUR SIM ROUTER NETWORKS

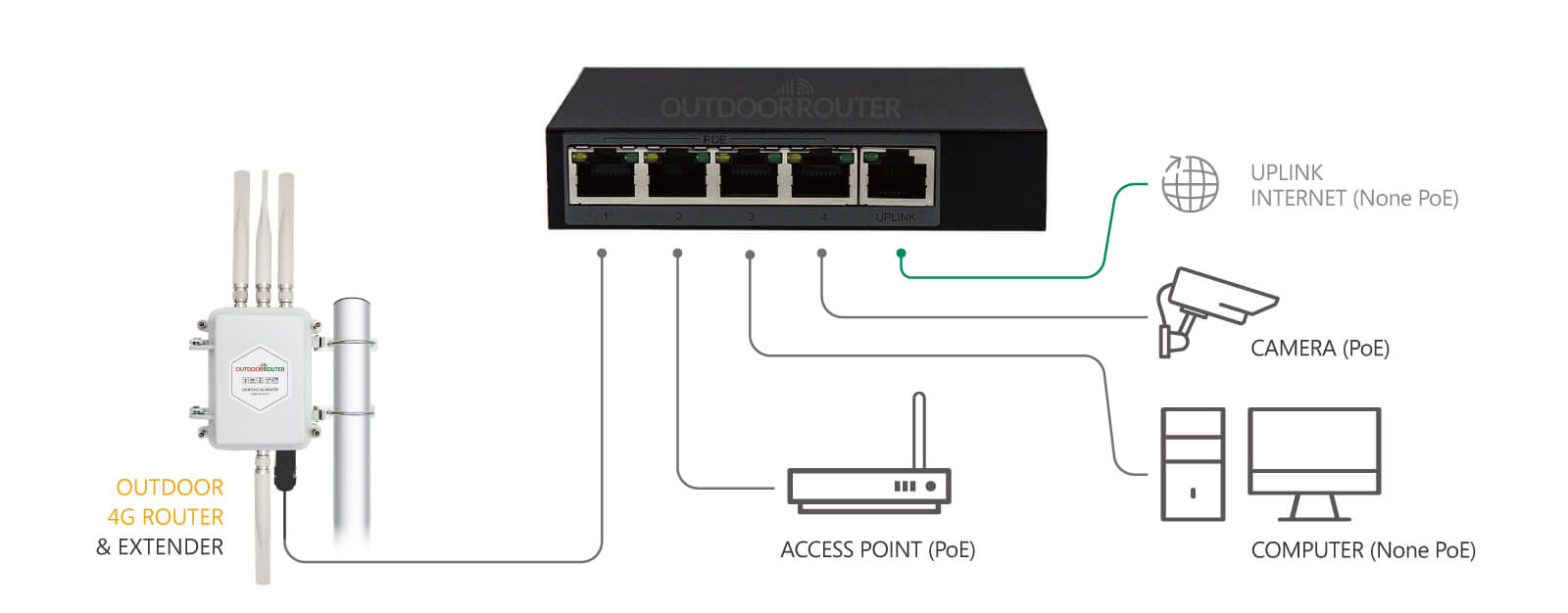

POWER UP OUTDOOR ROUTER & LINK PoE AP, CAMERA, COMPUTER
PoE+ Switch
IEEE802.3af/at Standard PoE+ Switch

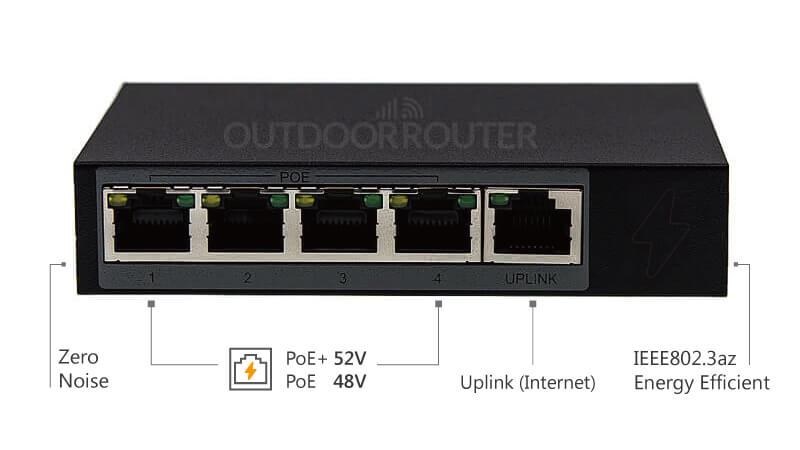

Support both 48V & 52Volt PoE Devices
Outputs 15.4W (af) or 30W (at) per port
Gigabit Ports
5x 1000Mbps Gigabit RJ45 Ports
With 4xPoE and 1xUplink Ports
Speed up speed & reduce latency
Plug and Play
Unmanaged Switch Simple Set Up
No Software or Configuration Required
PD Detection & Overload Arrangement
PThe Power over Ethernet PoE switch is equipped with a high-performance network IC and a reliable PoE chip compliant with the 802.3af/at standards. It automatically adapts to 10/100 or 10/100/1000Mbps Ethernet speeds, ensuring seamless connectivity and efficient data transfer.
Comes with palm size and fanless design, the PoE switch is completely noise-free when mounting on a wall or used on a desktop.
Operating Modes of the PoE Switch
The PoE switch has three selectable modes:
- Normal Mode – The default standard mode for typical operation. The PoE switch transmits data and power through all PoE LAN ports.
- Booster Mode – Extends the distance at which power can be carried over the LAN cable. This may lead to minor data packet loss. Applicable when sending only DC power without Ethernet to connected devices.
- VLAN Mode – Disables data communication through PoE LAN Ports 1-4, blocking internal traffic routing. This isolates connected devices from the network. Avoid enabling if your Outdoor Router links to the internet through one of these PoE ports.
Gigabit PoE Switch Specification
| PoE Port | No. 1~4 Ports |
| Uplink Port | Uplink (Left) |
| PoE Port Priority | Port 1 > 2 > 3 > 4 |
| Transmission Rate | 10/100/1000Mbps |
| Transmission Mode | Adaptive full/half-duplex |
| MAC Table | 2048 |
| Packet Forwarding | Rate 890kbps |
| Packet Buffer | Memory 768Kb |
| Indicator | Orange: PoE Power Green: Link / Act |
| Lightning Protection | Common Mode 2KV Differential Mode 0.5KV |

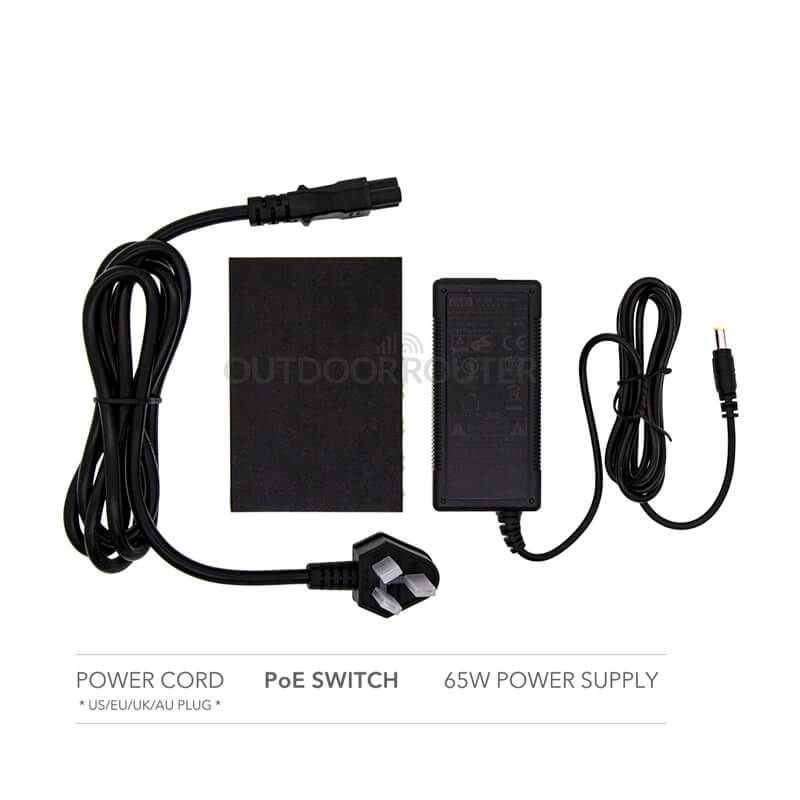

| Measurement | Switch: 124x72x24mm / 173gram Full-set: 190x85x90mm / 576gram |
| Working Environment | Temperature: 0 ~ 50°C Celsius Humidity: 10% ~ 90% RH |
| Storage Environment | Temperature: -40 ~ 70°C Celsius Humidity: 5% ~ 95% RH |
| Power Supply | Input: 110-264V 47-63Hz Output: DC 52V 1.25A AF: 60Watt AT: 120Watt |
| Networking Protocol | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000BASE-X IEEE802.3x Flow Control IEEE802.3af/at Power over Ethernet |
