America Cellular 4G Router | Outdoor Cell Wi-Fi
Insert a 4G SIM card to receive the best outside cellular signals and get fast outdoor Wi-Fi in rural areas
America Cellular 4G Router Outdoor Wi-Fi LTE-A
US$446
IP67-rated outdoor grade waterproof enclosure!
LTE-Advanced 4G modem power the America cellular 4G router with a rated max 300mbps speed. It receives the best outdoor cellular signals and provides fast internet for rural areas.
✧ American standard Cat6 LTE-Advanced modem inside. Dual SIM-card slot.
✧ MIMO outside Wi-Fi hotspot covers 150~300 yards in an open area.
✧ Powered by 48Volt PoE. LAN Ethernet is available on the PoE injector.
Out of stock

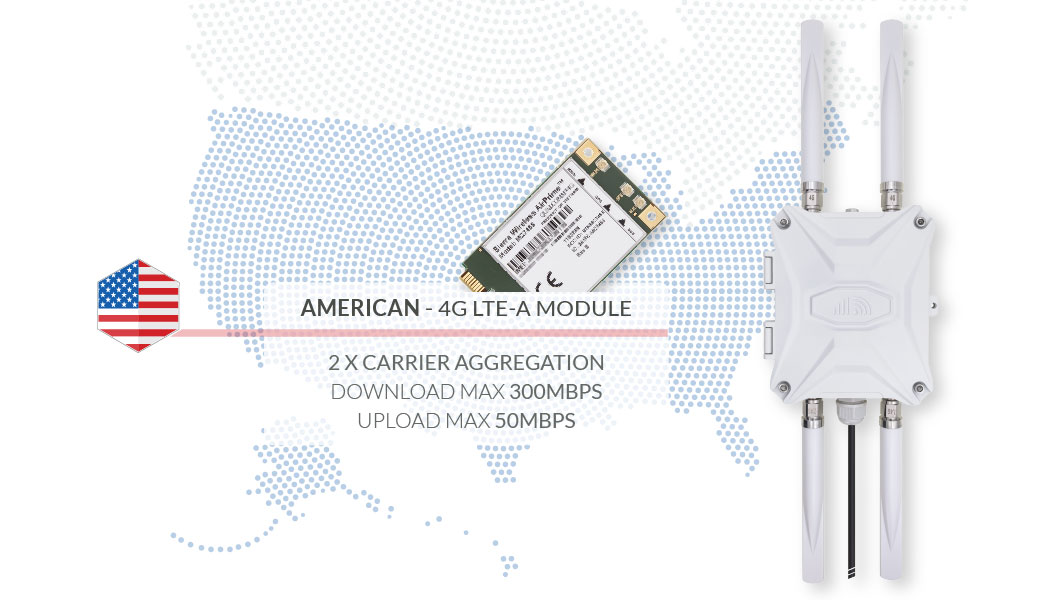

America Cellular 4G Router with LTE-A Module
i. Built-in Cat6 LTE-Advanced 4G module, the America cellular 4G router connects to widely distributed cellular networks and gets rated max 300Mbps download speed.
American standard 4G module inside. Support for cellular networks in the USA, Canada, Mexico, and some Latin American countries. The flexible 4G router is unlocked to use any SIM card you have. * Make sure your SIM card is unlocked and activated!
Get a stabler connection with the dual SIM card slot. Switch to another SIM card when the primary one is offline. Multiple mobile protocols and auto APN are integrated with the firmware.
Rugged 4G SIM Router for Demanding Applications
Remote & Rural Area
Receive stronger outdoor signals. Get rid of the landline. Enjoy the fast-speed mobile internet.
Outdoor Events
Use a SIM card to set up a temporary internet for outdoor events, campsite, caravan, boat, etc.
Harsh Environments
Provides rugged internet for industrial applications, water treatment, and construction sites.
Outdoor Wi-Fi Coverage
ii. Standalone MIMO Wi-Fi hotspot on 2.4GHz. Connect up to 57 Wi-Fi-enabled devices to the internet, such as cameras, doorbells, etc. It also supports the Wi-Fi relay.
PoE Power & LAN Ethernet
iii. PoE Power System -- Comply with 802.3af/at PoE standard, the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data. It supports a max 50-meter LAN cable. You can also power it up with a 12V DC power adapter.
iv. LAN Ethernet Connection -- Connect the network switch, second router, or computer to the LAN port on the PoE injector to extend the 4G internet to an indoor area.
High-gain External Antennas
v. Include wideband LTE antennas and omnidirectional Wi-Fi antennas. These external antennas are upgraded with UV coating and hexagon SS connectors. The robust N-female connectors support upgrades to directional antennas to improve signal reception.

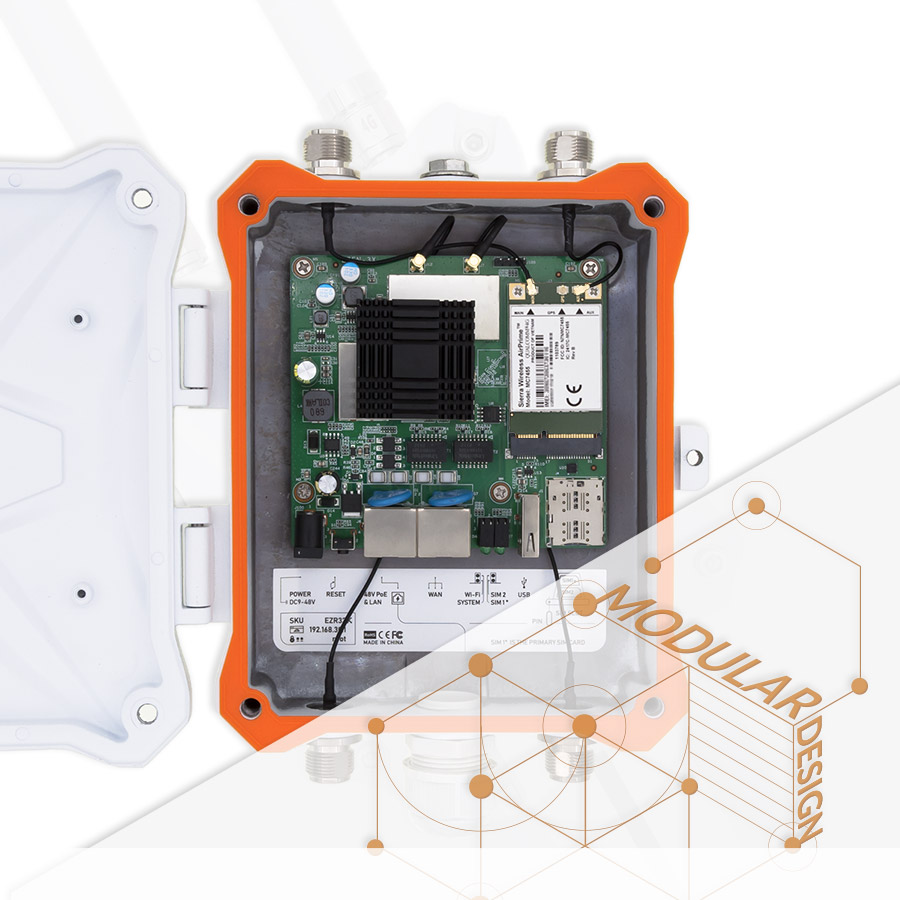

The Latest Innovative Waterproof Enclosure
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G modem router has the unique & modular designed enclosure with a weather-proof coating.
The durable enclosure provides waterproof protection in demanding environments.
A set of o-rings seals and gaskets protects the router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G modem router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV.
The breather valve prevents rupturing or imploding.
Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system.
It offers flexible solutions to install in vertical or horizontal directions.
Powerful & Open-sourced Cellular Router Firmware
Dedicated Cellular Router Firmware
Outdoor router operates as a plug-and-plug Linux router for internet freedom. It's easy to use and with a bundle of advanced tools.
The SIM-card router has integrated modem drivers, mobile protocols, and APN parameters. It also supports mmcli and AT command sets.
The keepalive design brings stable mobile internet connections. Automatically redial modem, reboot router, and switch SIM cards.
Safe & Open-sourced Firmware
Access and control the router with a web browser. It provides full authority to access SSH FTP Telnet, software center, and file system.
It has built QoS, firewall, DNS filter, and multiple-WAN. You can easily control the inbound and outbound traffics.
Supports OpenVPN and WireGuard. You can remotely access it via the Traversal-Cloud. TR069 is available on demand.
What Will You Get in the Package
The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports.
Package Contents
1 x American Cat6 Outdoor LTE-A Router
4 x Omni Antenna
1 x 10-meter outdoor LAN Cable
1 x 48V PoE Injector
1 x L-Shape Bracket
1 x T-Shape Wrench
1 x Mounting Kit
Unboxing EZR33L Router
Frequently Asked Questions
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR33L Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer free shipping and safe express delivery from the warehouse in Los Angeles and Quebec. Lead time is 24 hours, and the transit time is 2~5 working days. The shipping couriers are UPS and FedEx.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor 4G router supports all the cellular networks in USA & Canada. The SIM card slot takes a Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm).
The 4G modem router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, and IoT data plan. Please ensure the SIM card is activated and unlocked. A locked SIM card could only work on the specific bound modem device.
What is the difference between these outdoor routers?
This EZR34-012 router offers 1Gbps LAN and 1200Mbps WiFi with a faster speed CAT12 modem. The EZR33L series has 100Mbps LAN and 300Mbps WiFi with selectable CAT4/6 modems.
The CAT6/12 LTE-Advanced modems can provide fast speed for high-traffic applications such as video streaming. The CAT4 model is more suitable for low-traffic demands and applications such as IoT devices.
| Router SKU | LAN | WiFi | LTE Category | Max Download | Carrier Aggregation |
| EZR34-A012 | 1Gbps | 1200Mbps | CAT12 | 600 Mbps | Max 3x CA |
| EZR33L-Q6 | 100Mbps | 300Mbps | CAT6 | 300 Mbps | Max 2x CA |
| EZR33L-A4 | 100Mbps | 300Mbps | CAT4 | 150 Mbps | No |
4G Modem Router Applications
How does the cellular router work?
The EZR33L outdoor router has a dual SIM card slot and an LTE modem inside. After inserting a workable SIM card in the SIM#1 slot, the LTE modem connects to mobile networks and gets an internet connection. The 4G modem router can output the internet traffic on the WiFi hotspot and wired LAN port.
LAN Ethernet - You can connect another router to the LAN port on the PoE injector and extend the intranet network.
Does it support mobile carrier aggregation?
The CAT4 modem does not support carrier aggregation, but the CAT6 modem has 2x carrier aggregation. The carrier aggregation will automatically turn on when having sufficient signals. Read more about carrier aggregation technology.
How to know if a 4G router is workable in my area?
The EZR33L outdoor router needs a fair signal reception (above -101dBm RSRP signal) and a workable SIM card. You can run a field test of the signal reception. If the signal is too weak, you can upgrade the 4G antenna to higher-gain models to get the best available signals.
Using a mobile signal booster with the cellular routers is not recommended since it increases the noise level, which causes slower internet speed and even packet loss.
How to install the outdoor router?
The EZR33L outdoor router package includes a complete set of brackets, a wrench, and a manual. You can twist the bracket to install it in flexible directions, horizontally or vertically. The suggested installation is on a Ø35~50mm pole that is not included.
Can I power the outdoor router with 12Volt power?
The EZR33L outdoor router takes 48Volt power from the included PoE injector and supports an alternative DC power supply on the DC socket.
You can go through the power wire from the gland to the DC socket on the motherboard, which takes 9~48Volt DC power on a standard Ø 5.5/2.1 jack.
Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all outdoor routers. You may access the router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings. Read more about how to turn on remote cloud access.
1 review for America Cellular 4G Router Outdoor Wi-Fi LTE-A
Add a review
You must be logged in to post a review.
America Cellular Module - A6
| LTE Category: | CAT.6 (3GPP E-UTRA Release 11) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/20/25/26/29/30 Download max 300Mbps / Upload max 50Mbps |
| 4G TDD Bands: | Band 41 (2600MHz) Download max 222Mbps / Upload max 26Mbps |
| 3G Bands: | HSPA/UMTS: Band 1/2/3/4/5/8 Download Cat 24: 42Mbps Upload Cat 6: 5.76Mbps |
| Bandwidth: | 5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -45°C ~ +80°C |
| Working Area: | North America (USA and Canada) |
| Certification: | FCC / IC / CE / NCC / Anatel |
* Make sure your SIM card is unlocked and activated! *
Support cellular networks in North America, including USA, Canada, Mexico, and some Latin American countries.
EZEN3X Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 180.7x160.8x53mm |
| Package: | 307x249x130mm / 2405gram |
Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ22×180mm |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Power Sources
| PoE Injector: | Input: 110~240VAC 50/60Hz Output: 48Volt 0.5Amps |
| LAN Cable: |
10-meter outdoor grade LAN cable included. |
| PoE Wiring: |
Ethernet 1, 2, 3, 6 |
| DC Socket: |
Wide range DC 9~48Volt |
4G Router Firmware
Note: Below function chart is base on firmware version EV3124.
| Mobile Protocol: | Mobile Data and 4G-PPP |
| Command Sets: | MMCLI & AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, Telnet, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN (v2.5.3) and WireGuard VPN |
| Remote Control: | Free traversal cloud * TR069 available on demand |
