4G Outdoor Router External WiFi
Rugged 4G Router with Australian CAT4 Modem and SIM Card Slots
MIMO Antennas Included – External 4G WiFi Internet Gateway
US$332

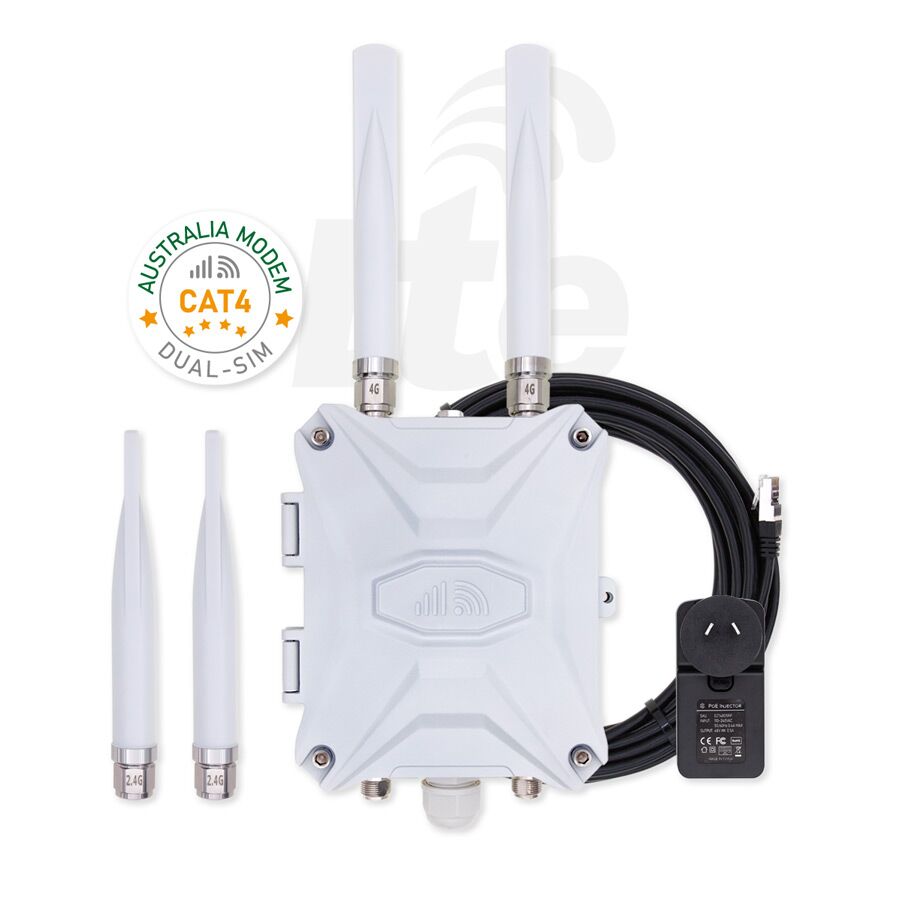

The rugged 4G outdoor router has an Australian CAT4 mobile modem, SIM card slots, and external antennas. It connects to outside 3G 4G mobile networks and provides internet to wireless WiFi and wired Ethernet.
Rugged 4G Router with Australian CAT4 Modem and SIM Card Slots
MIMO Antennas Included – External 4G WiFi Internet Gateway
CAT4 Mobile Modem Inside – Two SIM Slots
Supports 2G/3G/4G Australia Mobile Bands
Unlocked – Work with Major SIM Providers
Outdoor 4G Modem with Long-range WiFi Hotspots
External MIMO Antennas Pickup the Best Signals
Avoid Indoor Barriers and RF Signal Conflicts
Outdoor Lighting and Waterproof Protection
Reliable 4G Connectivity in Harsh Environment
Power by 48V PoE Injector (included)
DC Socket Accepts Input 9~48VDC
With IP67 waterproofing, extreme temperature hardening, and surge protection, the 4G outdoor router provides reliable 4G internet in harsh environments facing rain, snow, heat waves, or thunderstorms. The rugged hardware makes it an ideal 4G internet gateway for smart cities, transportation, rural area, and industrial applications.
Remote & Rural Area
Receiving stronger outdoor signals and faster 4G mobile internet. Get rid of slow landlines.
Outdoor Events
Use a SIM card to set up temporary internet for boats, vehicles, campsites, and outdoor events.
Harsh Deployments
Deploy reliable 4G WiFi internet for shops, IoT fields, and industrial applications.
The outdoor router is a standalone 4G WiFi router with a CAT4 mobile modem, two SIM card slots, WiFi hotspots, and an Ethernet port.
After inserting a SIM card, the outdoor router connects to the 4G mobile networks and accesses the internet on its external antennas. The CAT4 modem provides a maximum 150Mbps download speed.
Then, the outdoor router provides mobile internet connectivity to wireless devices like smartphones, tablets, and home appliances linked to its WiFi hotspots. It also passes through the internet on wired connections such as computers, switches, or indoor routers connected to the PoE injector.
Directly receiving the best outside 3G/4G signals with the included external antennas, the 4G outdoor router bypasses structural barriers, eliminates signal interferences, and avoids speed attenuations. It’s the ideal 4G mobile internet gateway for remote areas and signal-weak locations, especially when a landline is unavailable or has a slow speed.
Withstand extreme weather: Deploy reliable 4G WiFi connectivity in challenging conditions.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
DC power socket accepts 9~48V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Optimized firmware system delivers reliable mobile internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and multiple mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive mobile watchdog automatically tracks and keeps mobile internet alive. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.
1 x 4G Outdoor Router CAT4
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 48V PoE Injector
1 x Mounting Set & Tool
You must be logged in to post a review.
EZR33T - Online Manual
EZR33T.Router.Works
LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
4G FDD Bands: | B1/B2(Tx)/B3/B4/B5/B7/B8/B28 Download max 150Mbps / Upload max 50Mbps |
4G TDD Bands: | B40 | Download max 130Mbps / Upload max 30Mbps |
3G Bands: | B1/B2/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
2G Bands: | GSM/EDGE: Quad-band B2/3/5/8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
Bandwidth: | 1.4/3/5/10/15/20MHz |
Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
Temperature: | Working: -40°C ~ +85°C |
Working Area: | Australia, New Zealand, Brazil, Asia, Latin America |
Certification: | RCM / FCC / Anatel |
CPU: | Qualcomm Atheros QCA9531 |
Clock Speed: | 650MHz |
Memory: | DDR2 RAM 128MB |
Flash: | SPI FLASH 16MB |
SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
WAN/LAN port: | 10/100 Mbps |
Indicator: | System / Wi-Fi / SIM1 / SIM2 |
Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
Humidity: | 10% ~ 95% RH |
Measurement: | Router 148x183x55 mm |
Package: | 303x249x129 mm / 2400 gram |
Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
Transmission rate: | 300Mbps |
Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
Channel: | 1 ~ 13 |
Bandwidth: | 20/40 MHz or Auto |
Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
Concurrent user: | 57 users |
2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
Measurement: | Ø23 x 181 mm |
Material: | ABS |
Connector: | N Male |
Polarization: | Vertical |
Impedance: | 50 Ω |
Max Input power: | 10 Watt |
Input: | AC 110 ~ 240 Volt 50/60 Hz |
Output: | 48 Volt 0.5 Amps |
PoE Wiring: | Ethernet 1, 2, 3, 6 DC+ 4, 5 and DC- 7, 8 |
AC Plug: | EU/GB/US/AU standard AC plugs Ship depends on the destination |
LAN Cable: | 10-meter outdoor-grade Ethernet cable included. Supports max 50 meters. |
DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter is not included |
PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is included, as above |
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
Mobile Protocol: | Mobile Data, QMI, and PPP |
Command Sets: | MMCLI, QMI, and AT commands |
Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
APN: | Auto APN included Custom APN parameters available |
Mobile Roaming: | On/off as you set |
SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
Firewall: | New port, port forwarding, and custom rules |
Diagnostics: | Ping, Traceroute, Nslookup |
VPN Tunnel: | OpenVPN client and WireGuard |
Remote Control: | Free traversal cloud * TR069 available on demand |
