X62 5G Outdoor Modem Router
Outdoor 5G router with dual SIM card slots
High-gain external 4G/5G Wi-Fi antennas
X62
5G
5G
Outdoor 5G Modem Australia Mobile SIM Router
US$465
The outdoor 5G router has a 5G modem and dual SIM card slots to provides 5G broadband internet for homes, shops, industrial sites, rural areas, and outdoor events. It supports all the 4G 5G mobile networks in Australia with auto LTE Cat.19 fallback.
The MIMO external antennas receive the best 4G 5G mobile signals outside and broadcast dual-band WiFi hotspots for outdoor devices. The IP67 waterproof router box is suited to rugged applications and challenging environments.
X52 5G Mobile SIM Modem
5G modem with dual Nano SIM card slots
Broadband 5G internet – Max 3,400 Mbps
Supports Australia 4G 5G mobile networks
External 5G Wi-Fi Router
External MIMO 5G and Wi-Fi antennas
Standalone dual-band Wi-Fi 2.4G & 5.8G
Outdoor 5G Wi-Fi covers 100-300 meters
IP67 Waterproof Router
Industrial 5G router with surge protection
For extreme weather & rugged deployments
PoE Injector with Ethernet
1Gbps LAN Ethernet on PoE injector
Power over Ethernet cable or 12V DC
What is an Outdoor 5G Modem Router?
The outdoor 5G modem router connects the SIM card to 4G/5G mobile networks and delivers broadband internet on WiFi & Ethernet to phones, computers, cameras, and indoor routers.
Why Use 5G Router in Outdoor?
Due to barriers and interference, the indoor mobile signal might be weak and unstable. The outdoor 5G router install outside to pick up the best available 4G/5G mobile signals on its high-gain external antennas. It is a standalone 5G modem router with dual-band 2.4G and 5.8G WiFi hotspots to provide broadband internet for outdoor events, outside cameras, IoT sensors, construction sites, etc.
Outdoor 5G Modem Router Benefits
The outdoor 5G router supports Australian 4G 5G mobile networks and roams in EMEA & APAC countries. The 5G modem is unlocked and capable of using SIM cards from all the mobile carriers in Australia; you can choose the mobile carrier and data package flexibly.
It operates over Sub-6 5G networks with a rated max 3.4Gbps download speed. 3G and 4G Cat.19 fallback is enabled. You can use two Nano SIM cards on the router.
Outdoor 5G Router Applications
5G Mobile Internet
Fast broadband 4G/5G home internet
Failover SIM card internet for officeworks
Rural Mobile Wi-Fi internet for remote areas
Flexible 5G SIM Router
Mobile internet on the road and on boats
4G/5G WiFi for motorhomes and camp sites
Enables industry automation and control
Outdoor WiFi Hotspots
Outdoor WiFi coverage 100-300 meter
4G/5G Backup Internet
Redundancy for landline DSL fiber internet
Temporary & Outdoor Events
Short-term internet for live concerts etc
Deployable network for emergencies
IP67 Waterproof Box & 5G Firmware
The Outdoor 5G Router has an IP67-rated waterproof box for work in extreme weather and demanding environments in the long term.
IP67 Waterproof Box
Anti dust and water immersion
Outdoor Lighting Protection
Common 6KV – Differential 1.5KV
Against Extreme Weather
Temperature -40°C ~ +80°C Celsius
Powered by open-source firmware, the 5G modem router firmware is plug-and-play, easy to use, root authority granted, and with advanced tools.
Integrated 5G modem drivers and multiple mobile protocols.
Supports dual SIM cards, 4G/5G band lock, and mobile IP bridge.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, VPN tunnels, and free cloud access.
Please contact us for the online demo.
Power Sources – PoE & DC Powers
The default power source is an 802.3at standard PoE injector. You can use the included 10-meter LAN cable to power up the router and get 1Gbps LAN Ethernet on the PoE injector. It also accepts power from a PoE switch and PoE extender.
The DC socket supports 9~48 Volt DC power, including typical 12 Volt DC power from a DC power adapter and 12 Volt battery pack.

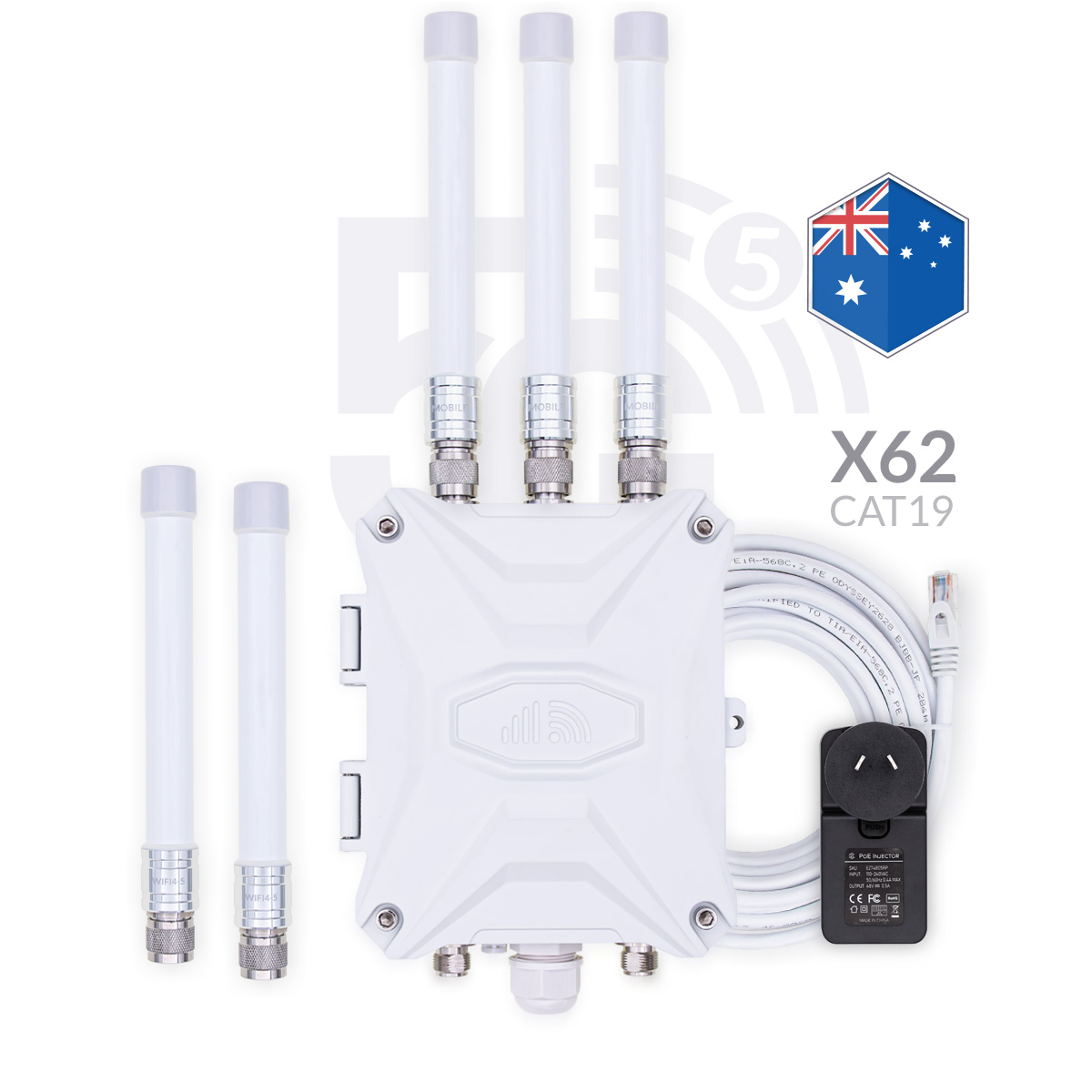

What Will You Get In The Package
The package includes the below contents along with a 15-day money-back warranty and one year quality guarantee.
You will also receive our zealous customer service and technical support.
Package Contents
1 x Outdoor 5G Router
3 x Omni FRP 5G-NR Antenna
2 x Omni FRP WiFi Antenna
1 x 10-meter Cat.6 LAN Cable
1 x PoE Injector with AU Plug
1 x Mounting Set & Tool
Frequently Asked Questions
Resources
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR34T Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer free shipping and safe express delivery from the Sydney warehouse or Asia factory. Lead time is 24 hours in working days. The shipping courier is AusPost eParcel Express, and the transit time is 1~5 days.
Backordered and out-of-stock products will ship from the factory or other warehouses, and the transit time is 4~7 days.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on product quality. Check out more about our warranty policy. You can always contact us for any technical assistance or after-sales issues, and we will find a suitable solution to serve you effectively.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor SIM router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, or IoT data plan. It supports major Australian mobile carriers, such as Optus Telstra Vodafone, and virtual carriers.
The SIM card slot(s) takes Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm). Please ensure the SIM card is workable and has enough data allowance.
What is the difference between these outdoor routers?
The EZR34T router offers two 1Gbps RJ45 ports and 1200 Mbps Wi-Fi 5. It supports CAT6 LTE modems and X55 or X62 5G modems. They can provide fast-speed 4G/5G mobile internet for high-traffic applications such as gaming and video streaming.
The EZR35 router has a stronger SoC and Wi-Fi 6 AP, with one 1000Mbps LAN port and AX3000 Wi-Fi hotspots. It supports a CAT16 LTE modem or an X62 5G modem to bring you faster speeds and stronger networking performance.
| Router SKU | UE Category | Max Download | Max Upload | LAN / WiFi |
| EZR35-D520 | X62 5G LTE CAT19 |
3.4 Gbps | 900 Mbps | 1000/3000 Mbps |
| EZR35-D16 | LTE CAT16 | 1.0 Gbps | 150 Mbps | 1000/3000 Mbps |
| EZR34T-D520 | X62 5G LTE CAT19 |
3.4 Gbps | 900 Mbps | 1000/1200 Mbps |
| EZR34T-X55D | X62 5G LTE CAT16 |
2.4 Gbps | 500 Mbps | 1000/1200 Mbps |
| EZR34T-D6 | LTE CAT6 | 300 Mbps | 50 Mbps | 1000/1200 Mbps |
Outdoor 5G Router Usages
How does the outdoor 5G router work?
The outdoor 5G router has dual SIM card slots and a 5G-NR mobile modem inside. It has external omnidirectional antennas to pick up the best outdoor mobile signals.
After inserting a workable 5G data-plan SIM card, the 5G modem connects to the mobile networks and provides broadband 5G internet connections on WiFi and Ethernet.
Does it support mobile carrier aggregation?
The 5G-NR modem supports max 4x carrier aggregations. The carrier aggregation connection will automatically turn on when there are sufficient signals. Read more about carrier aggregation technology.
How is the 5G router workable in my area?
Firstly, you need an activated SIM card with a 5G data plan and enough data allowance. Then, the location should have a fair 5G signal coverage. You can put the SIM card in a 5G mobile phone and check the 5G signals. To measure the 5G signal quality accurately, please check the 5G-NR signal tutorial.
If the mobile signal is too weak, suggest changing the location and installing it at a higher altitude. Upgrading the 5G antenna to higher-gain and directional aerials is helpful to get the best available signals.
Using a mobile signal booster with outdoor 5G routers is not recommended since it increases the noise level, which causes slower internet speed and even massive packet loss.
How to install the outdoor router?
The outdoor 5G router includes a complete mount kit, including brackets, wrench, and manual. You can turn the L-shape bracket to install the router in multiple directions. The suggested installation is on a vertical Ø35~50mm pole. The pole is not included.
Can I power the outdoor router with 12Volt power?
The outdoor 5G router uses default IEEE 802.3at standard 52Volt PoE power.
It has a DC socket to take a wide range of 9~52Volt DC power. The supported DC jack is Ø 5.5/2.1 jack. Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all models. You may access the router on a web browser anytime, anywhere. For privacy and security, cloud access is turned off by default. Read more about the remote cloud platform.
2 reviews for Outdoor 5G Modem Australia Mobile SIM Router
Add a review
You must be logged in to post a review.
5G-NR Mobile SIM Card Modem
RM520N - Powered by Qualcomm Snapdragon X62 5G Modem-RF Baseband Chipset
(520EU) 5G-NR Mobile SIM Modem X62
| Specification | 5G NR | 4G LTE |
| Category: |
3GPP Release 16 (R16) |
Download Cat 19 Upload Cat 18 |
| Bands: | 5G-NR NSA & SA: N1 3 5 7 8 20 28 38 40 41 71 75 76 77 78 |
FDD: B1 3 5 7 8 20 28 32 71 TDD: B38 40 41 42 43 |
| Download Speed: | 5G NSA: 3.4 Gbps 5G SA: 2.4 Gbps |
1.6 Gbps |
| Upload Speed: | 5G NSA: 550 Mbps 5G SA: 900 Mbps |
200 Mbps |
| 3G WCDMA: | Band 1 5 8 DL 42 / UL 5.76 Mbps |
|
| Temperature: | Working: -30°C ~ +75°C | |
| Modem Cert.: | CE RCM RoHS | |
| Region: | UK, Europe, Australia, EMEA & APAC. * Except Japan and North America. |
Note: The presented download and upload speeds are theoretical max rates, and the actual speeds depend on network conditions.
EZEN4X Motherboard Top Down View
EZEN4X - Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5150~5850 MHz |
| Wi-Fi Channel: | 1~13 | UNII-1 / 2A / 2C / 3 Full Channel 36 to 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac Wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor FRP Antennas
| 3 x 5G Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N Male |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 5G Router Firmware
Function chart is base on firmware Version EV4062
Read more about EV4X firmware releases & tutorials
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ RSRP SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 3G 4G and 5G 3G/4G/5G Band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/Off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | SQM and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping Traceroute and Nslookup |
| VPN Tunnel: | IPSec OpenVPN and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
Contact Us
Please feel free to contact us if you need any further information about the product.
You may also like…
5GNR
WiFi6
WiFi6
| SKU: EZR26-D520 | |
| 5G-NR modem max 3.4Gbps |  |
| 3000Mbps WiFi6 hotspots |  |
| Dual nano SIM card slots |  |
| 1xWAN 3xLAN 1x2.5G Ports |  |
NEW
CAT16
CAT16
| SKU: EZR35-D16 | |
| 4G CAT16 modem max 1.0 Gbps |  |
| 3000Mbps WiFi 6 100–300 meters | |
| Dual Nano SIM card slots | |
| 52V PoE injector 1 Gbps Ethernet |  |
| IP67 waterproof enclosure |  |
X55
5G
5G
| SKU: EZR34T-X55D | |
| X55 5G modem max 2.4 Gbps LTE Cat 16 |  |
| AC1200 Wi-Fi5 covers 100–300 meters |  |
| Ezen 4X Board powered by MTK7621 |  |
| 2x RJ45 1Gbps - 52V PoE Injector | |
| Rugged IP67 waterproof enclosure | |
X62
5G
5G
| SKU: EZR35-D520 | |
| X62 5G modem max 3.4 Gbps LTE Cat 19 |  |
| AX3000 Wi-Fi6 covers 100–300 meters | |
| Ezen 5X Board powered by IPQ5018 |  |
| 1x RJ45 1Gbps - 52V PoE Injector | |
| Rugged IP67 waterproof enclosure | |
