Australian 4G Router Outdoor MIMO Wi-Fi 300Mbps
The new dedicated Australian standard outdoor router. MIMO 4G and MIMO Wi-Fi 300Mbps. Designed for use in remote areas. Provide Wi-Fi and Ethernet through 3G/4G mobile networks.
• MIMO 3G/4G modem for use in Australia and Latin America.
• MIMO Wi-Fi with 25~27dBm booster. Covers 150~300 yards radius.
• Wi-Fi speed is up to 300Mbps and supports 57 concurrent users.
• PoE power over Ethernet. Support 48Volt PoE switches.
• IP67 rated. Withstand extreme weathers & rugged deployments.
• Guarantee 15-day money back.
Australian Mobile Modem
MIMO 3G/4G modem with high sensitivity
Download speed up to 150Mbps
Oceanian standard frequencies
4G LTE band B1/B2/B3/B4/B5/B7/B8/B28/B40
2.4G MIMO Wi-Fi with Booster
2T2R MIMO Wi-Fi and high-gain antennas
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 150~300yd radius
Support up to 57 concurrent Wi-Fi users
PoE (power over Ethernet)
PoE support IEEE 802.3af/at
PoE injector included, work with 48V PoE switch
Support 300-feet PoE LAN cable
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Intergrated surge protection

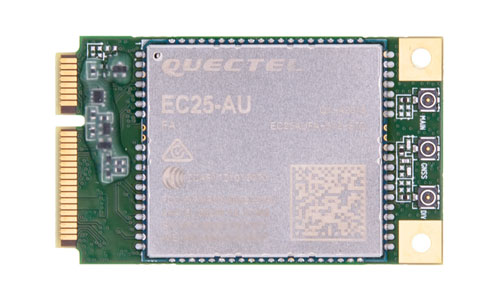

Mobile Broadband Modem
The Australian 4G Router uses Quectel EC25-AU mobile broadband modem which takes 2pcs 4G antennas and delivers 150Mbps downlink and 50Mbps uplink data rates.
The CAT4 broadband mobile modem is designed to use in Australia, New Zealand, Philippines, Brazil, Argentina, Colombia. Except for 4G FDD-LTE and 4G TDD-LTE, it also supports 3G WCDMA and 2G GSM/EDGE mobile networks.
The 4G broadband modem is certificated by RCM, FCC and Anatel.
* The SIM card is excluded.
2.4G MIMO Wi-FI with Booster
Integrated with 25~27dBm Wi-Fi booster, the Australian 4G Router covers up to 150~300 yards radius in the outdoor open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provides high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, setup firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
PoE – Power over Ethernet Cable
Powered by PoE (power over Ethernet), you only need one LAN cable for both power and data. Supports 802.3af/at PoE standards, you can power up the outdoor router with 48Volt PoE switches over as long as 50~100 meters LAN cable.
The default 48Volt PoE injector and 10-meter LAN cable are included in the package.
IP67 Rated Waterproof Protection
Ideal to deploy in rural areas such as the park, coast, camping site, construction site and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and capable of withstanding water immersion above 3-feet for 30 minutes.

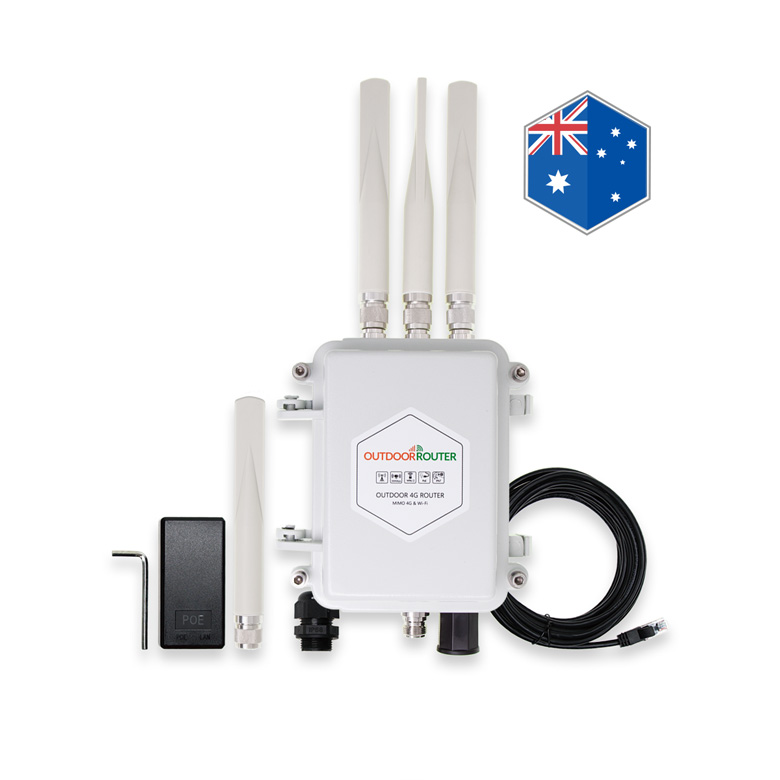

What Will You Get in the Package
|CPU:||Qualcomm Atheros QC9531|
|SIM Card:||Standard SIM card (25x15mm) **Exclude**|
|LAN Port:||1x10/100Mbps RJ45 port on PoE injector|
|Indicator:||Power & system|
|Consumption:||< 3 Watt|
|Temperature:||Working: -30 to 80°C Storage: -50 to 95°C|
|LTE category:||CAT 4|
|4G Bands:||FDD LTE - B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE - B40 Download 150Mbps / Upload 50Mbps|
|3G Bands:||WCDMA B1/B2/B5/B8 Download 21Mbps / Upload 5.76Mbps|
|2G Bands:||GSM/EDGE B2/B3/B5/B8|
|Working Area:||Australia, New Zealand, Philippines, Brazil, Argentina, Colombia etc.|
|Certification:||RCM / FCC / Anatel|
|4G Omni Antenna:||Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.5|
|Wi-Fi Antenna:||Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.5|
|Wi-Fi standards:||IEEE 802.11 b/g/n & IEEE 802.3u|
|Transmission rate:||300Mbps by 2T2R MIMO Wi-Fi|
|Bandwidth:||20/40 MHz or Auto|
|Output power:||802.11n: 23±2dBm for OFDM mode 802.11g: 25±2dBm for OFDM mode 802.11b: 27±2dBm for CCK mode|
|Wi-Fi mode:||11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed|
|Concurrent user:||57 users|
|Computer:||Windows XP Vista 7 8/8.1 MAC OS OS X10.7+|
|Cable length:||Support 50~100 meters|
|Wiring:||Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8|
SIM Card Installation
Before inserting the SIM card, please turn off the router power by disconnect from the PoE injector. If the SIM card was inserted when the router was turned on, please reboot the router.
EZR30 takes 2FF standard SIM card; size is 25x15mm. If your SIM card is 3FF micro or 4FF nano, please use the provided SIM card adapter.
When you insert the SIM card, make sure the golden pins face down, and the notch is inside. After correct inserted the SIM card, you can hear a tiny "click" sound.
After inserted the SIM card, you can log in the router and click top menu "Network / Interface" to check the signal information including network provider, network type, and signal strength (the unit is dBm).
Some of the carriers require to input APN, access point name. You can log in the router, click "Network / Interface", then click "Edit" on the row of "Mobile".
APN: the APN gateway address
PAP/CHAP username: Username
PAP/CHAP password: Password
Click "Save & Apply" to apply the new APN parameters. It usually takes a few seconds to re-setup the mobile internet connection.
