Dual RF Extension Cable 5M N-Male to SMA
US$40
The dual RF extension cable is a pair of 5-meter cables equipped with N-male and SMA-male connectors. The LMR200 coaxial cable is soft and flexible with low-loss performance.
It helps to extend indoor routers to outdoor 4G, 5G, and Wi-Fi antennas with a minimum signal attenuation.

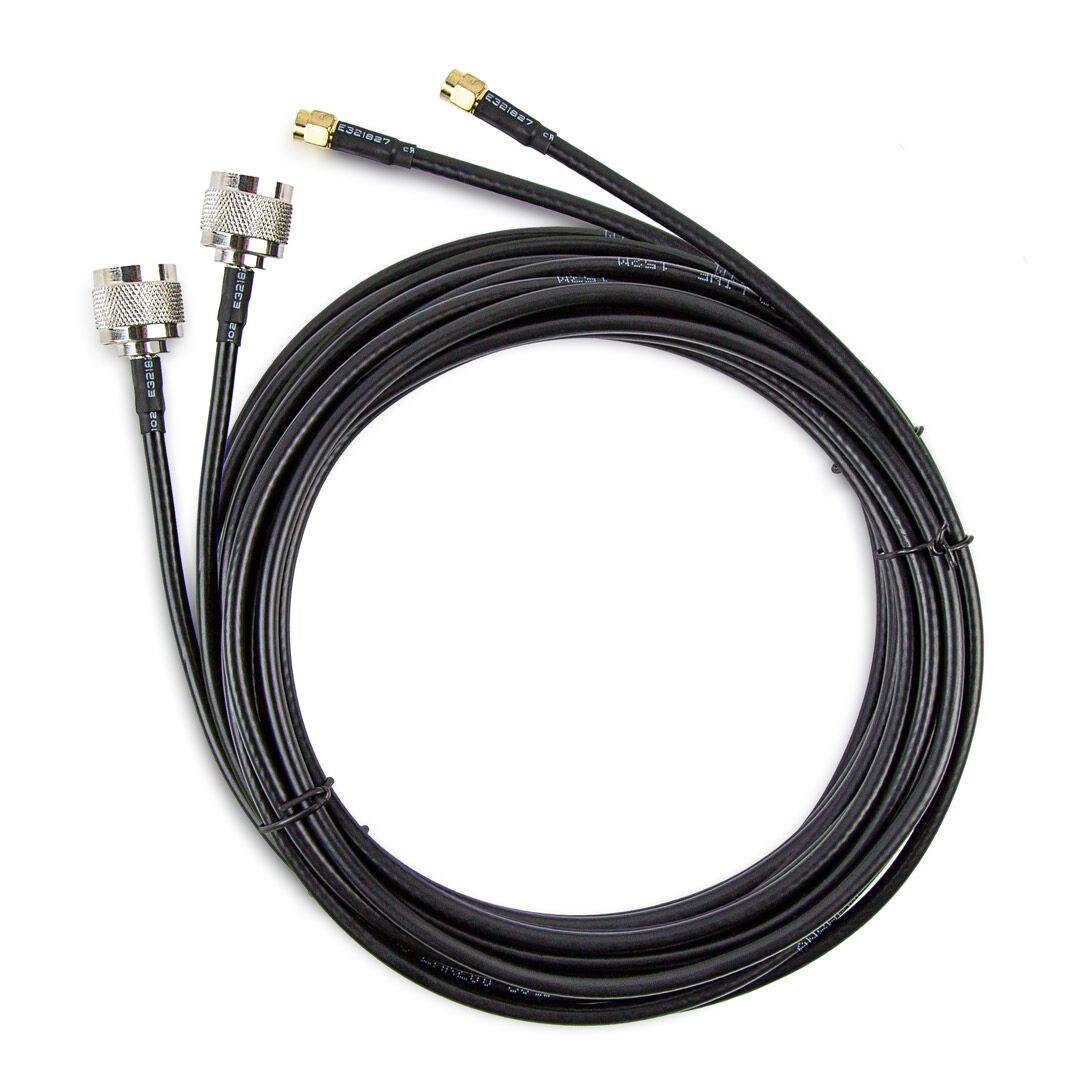

Dual RF Extension Cable 5-Meter
The dual RF extension cable consists of two 5-meter cables, each equipped with N-male and SMA-male connectors.
The right side sketch illustrates how to connect a 4×4 MIMO antenna, and two of the dual coaxial cables have been used. Click on the image to view a larger version.
If you are going to connect a 2×2 MIMO router and antenna, only one pair of cables is necessary.
Low-loss Coaxial Cable
50Ω Ohm impedance – RF signals travel down easily
Aluminum wire braid shield, over 95% coverage
Low PIM passive intermodulation
Outdoor Grade Cable
LMR200 flexible coaxial cable
10.29mm outer PVC jacket
Water resistant RF cable
Max Attenuation at 20°C
| Frequency | Attenuation |
| 900 MHz | 0.32 dB/m |
| 1800 MHz | 0.46 dB/m |
| 2000 MHz | 0.49 dB/m |
| 2400 MHz | 0.54 dB/m |
| 3000 MHz | 0.67 dB/m |
5-Meter Coaxial Cable Specifications
Physical Specifications
| ➀ Inner Conductor | 1/1.02mm bare copper |
| ➁ Insulation | 2.95±0.1mm white PE |
| ➂ Folia | 3.1mm silver gray aluminum foil |
| ➃ Wire Braid | 128*0.12mm silver tinned copper |
| ➄ Jacket | 5±0.1mm PVC |
| Cable Length | 5-meter (16.4-feet) |
| Connector | 1xSMA Male 1xN-K Male |
Electrical Specifications
| Capacitance | 81±5 pF/m |
| Impedance | 50±2 Ω Ohm |
| Velocity Ratio | 81 % |
| Bent Radius | 50 mm |
| Max Voltage | 1500 VMS |
| Max Frequency | 3000 MHz |
| Temperature | -20 ~ 80°C Celsius |
| SWR | 0~3000MHz ≤ 1.2 |
