Outdoor 4G Modem for Australia
Broadband 4G LTE-Advanced CAT16 Mobile Internet Modem, Speed up to 1Gbps
Dual SIM card slots, external antennas, and long-range outdoor Wi-Fi 6 coverage
NEW
CAT16
CAT16
Outdoor 4G Modem CAT16 LTE Router WiFi6
US$395
Built to deliver affordable mobile internet to your home/office, the outdoor 4G modem features a broadband LTE-Advanced CAT16 modem with durable external antennas and dual SIM card slots to access 4G mobile networks across Australia.
The unlocked Australian 4G modem SIM router gives you the freedom to choose your preferred network provider and data plan.
- CAT16 LTE-Advanced modem with download speeds up to 1 Gbps.
- Outdoor Wi-Fi 6 hotspots provide 100-300 meter coverage at 3000 Mbps.
- IP67 waterproof rugged router works reliably in harsh environments.
4G SIM Card Modem
LTE-A CAT16 mobile modem with dual SIM slots. Works across major Australian 4G networks.
Long-range Outdoor WiFi
Outdoor Wi-Fi 6 coverage reaches 100-300 meters, with fast speeds up to 3,000 Mbps for 200+ devices.
Rugged Waterproof Router
IP67-rated aluminum enclosure with surge protection for harsh outdoor environments.
Gigabit Ethernet via PoE
Powered by a 52V PoE injector with a Gigabit LAN Ethernet port. Supports optional DC power input.
Mobile Broadband 4G Home Internet
The 4G mobile SIM router works as a standalone mobile internet gateway with WiFi and wired Ethernet connectivity. It is ideal for providing cost-effective mobile internet access in rural areas, demanding outdoor environments, and temporary sites.
Supporting Australian 4G LTE Bands
The CAT16 LTE modem supports worldwide 3G/4G frequencies and is compatible with major Australian mobile carriers, including Telstra, Optus, and Vodafone. It’s unlocked and lets you choose preferred mobile carriers and data plans.
Go Outdoor – Better Signals & Coverage
Indoor 4G signals are often weak due to interference and obstructions. The 4G router placed outdoors captures optimal signals via external antennas, enabling long-range outdoor WiFi.
Outdoor 4G Modem for Harsh Environments
Featuring rugged waterproof enclosure, industrial-grade durability, and lighting protection, the rugged outdoor 4G modem router delivers stable mobile broadband internet even in harsh environments, including rain, snow, extreme heat, and storms. Designed for reliable long-term outdoor deployment, it is an ideal solution for broadband access, backup connectivity, remote monitoring, and mission-critical industrial applications.
Remote Regional Areas
External antennas capture stronger outdoor 4G signals. No landlines needed.
Challenging Conditions
Deploy reliable 4G home internet for industrial sites, IoT fields, outdoor cameras, etc.
Outdoor Events
Set up temporary internet over mobile networks for RVs, boats, campsites, and outdoor events.
The alternative SIM card slot provides failover and backup redundancy.
You can flexibly choose your preferred mobile carriers and data plans.
A nano SIM card is not included. Get a free trial data SIM card here.
How Does an Outdoor 4G Modem Work?
Upon inserting a SIM card and powering on, the 4G modem uses external antennas to connect to nearby mobile towers and identify available LTE bands. It automatically enables MIMO and carrier aggregation to improve internet speed.
Then it converts mobile data to Wi-Fi and Ethernet signals and shares the internet with smartphones, tablets, switches, computers, and home appliances.
The indoor PoE injector provides wired Ethernet and supports reverse WAN input. It offers seamless integration with existing routers and local networks for backup mobile internet and expansion.
Router Firmware Features & Technical Services
Built on OpenWrt’s secure architecture, the outdoor router firmware features our dedicated modem integration and mobile internet optimization for a seamless plug-and-play experience. Check more on EV5X firmware releases.
Integrated advanced mobile modem protocols and command sets. Control two SIM cards, band lock, and 4G IP passthrough.
Supports OpenVPN, Wireguard, and Tailscale VPN tunnels. Access your router anywhere on our free cloud management platform.
Need help to configure your router? Our experts are ready for remote assistance! Custom firmware available for bulk orders.
Rugged Outdoor Waterproof Enclosure
Designed for harsh outdoor uses, the IP67-certified outdoor waterproof enclosure is made of lightweight aluminum with anti-corrosion coating and high-efficiency backside heat sink.
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
Patented Enclosure
Exclusive outdoor waterproof enclosure

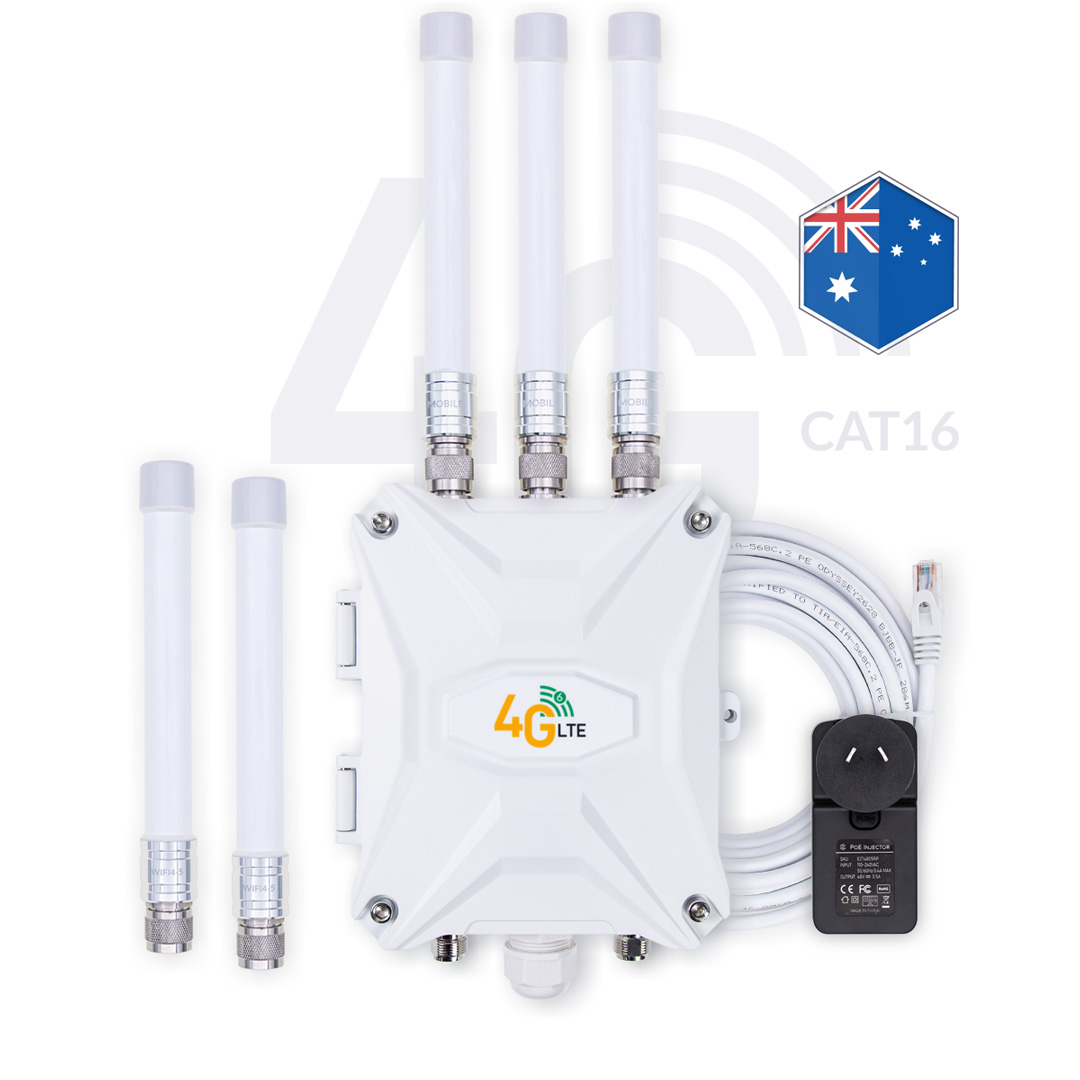

What's In the Package
OutdoorRouter aims to deliver reliable hardware along with an outstanding customer experience. The package contents below are backed by a 15-day money-back guarantee and a 1-year quality assurance. Contact us now for remote assistance with setting up, optimization, and troubleshooting.
Package Contents
1 x Outdoor 4G WiFi Router
3 x FRP Mobile Antenna
2 x FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x PoE Injector – AU Plug
1 x Mounting Set & Tool
External MIMO Antennas
The detachable MIMO antenna array consists of 3× mobile antennas and 2× WiFi antennas, connected to five low-loss N-K sockets. The default package includes five rugged outdoor omnidirectional FRP antennas.
Upgradable 4G/WiFi Antennas
You can enhance mobile signal reception or WiFi coverage by replacing the default omni antennas with higher-gain (directional) antennas on the N-K female socket. Check more of the outdoor external antennas.
Flexible Power Sources
Standard PoE Extension
The outdoor 4G router includes a 52V PoE injector and a 10-meter LAN cable. You can power the router with 802.3af/at standard PoE switches and extend the LAN cable up to 50-300 meters with PoE extenders.
Alternative DC Power
The internal DC power socket accepts a wide-range 9~48V DC input for battery packs and AC-DC adapters, allowing power from AC electric outlets, vehicle power, solar power battery, and more.
Be the first to review “Outdoor 4G Modem CAT16 LTE Router WiFi6”
You must be logged in to post a review.
EZR35-LTE Online Manual
outdoor.router.works/ezr35-lte
Live Demo
Contact us to acquire an online live demo
CAT16 Cellular Modem M.2 Key-B
| LTE Category: | Category 16 (3GPP E-UTRA Release 14) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66 |
| 4G TDD Bands: | B38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x 3x 4x 5x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 1.0 Gbps / UL 150 Mbps 3G HSDPA: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 3xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / Anatel / IFETEL / KC / JATE / TELEC / RCM / ICASA Europe: Vodafone / British Telekom / Swisscom | America: Vz / ATT / TMO | Australia: Telstra |
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x Mobile Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~48 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48V 0.5A.
