Outdoor 4G SIM Router EU Bands
CAT16 LTE-Advanced Mobile 4G Modem Max 1Gbps – Dual SIM Card Slots
Rugged Waterproof Outdoor 4G WiFi CPE with MIMO External Antennas
NEW
CAT16
CAT16
EU Outdoor 4G SIM Router WiFi6 LTE Modem
US$395
Featuring dual SIM card slots and MIMO external antennas, the outdoor 4G SIM router has a CAT16 LTE modem to connect to 4G mobile networks and deliver broadband internet for harsh environments and demanding applications.
The unlocked 4G SIM router is your outdoor LTE WiFi gateway to provide long-range wireless coverage and can serve as a backup for existing network.
- LTE-Advanced CAT16 mobile modem with a max download speed of 1Gbps.
- 3000 Mbps dual-band WiFi6 hotspots with 100-300 meter long-range coverage.
- IP67 rugged waterproof protection for reliable operation in tough conditions.
CAT16 Modem EU Bands
LTE-Advanced CAT16 modem inside with max 1Gbps speed, supports global 3G/4G spectrum.
Outdoor LTE WiFi6 CPE
100-300 meter long-range wireless coverage. Dual-band 3000 Mbps for up to 200 clients.
Rugged Waterproof Protection
IP67 enclosure protects against water and surges. Ensures reliable operation in tough conditions.
Safety PoE Power w/ Ethernet
Standard 52V PoE injector with Gigabit Ethernet. Supports alternative 9~48Volt DC input.
Outdoor LTE WiFi Gateway for Europe
The outdoor 4G SIM router works standalone and delivers cost-effective mobile internet with long-range wireless coverage for challenging outdoor settings and temporary occasions.
LTE-A Modem & External Antennas
Featuring a CAT16 LTE-Advanced mobile modem that supports 3G/4G bands across Europe, the outdoor router delivers a max download speed of 1Gbps. The external 3×3 MIMO antennas avoid indoor interferences and capture the best outside mobile signals in your area.
Long-range Outdoor WiFi Coverage
The high-power WiFi 6 chipset provides 100 to 300 meters outdoor coverage in open area through MIMO antennas with 3000Mbps speed on both 2.4 GHz and 5.8 GHz bands.
Ethernet and Multi-WAN Router
Bridge LAN Ethernet to indoor PoE injector and supports reverse WAN input.
Rugged 4G LTE Router for Demanding Applications
With IP67 waterproof protection, industrial-grade durability, and built-in lightning protection, this outdoor 4G SIM router delivers stable LTE connectivity across European mobile networks in demanding environments exposed to rain, snow, extreme heat, and storms. Designed for reliable long-term outdoor deployment, it is an ideal solution for broadband access, backup connectivity, remote monitoring, and mission-critical industrial applications.
Harsh Environments
Deliver reliable LTE internet for industrial uses, construction sites, and tough outdoor settings.
Outdoor Events
Use a SIM card to quickly deploy temporary internet for events, RVs, and short-term needs.
Remote & Rural Area
Receive stronger outdoor LTE signals and extend internet access to remote and rural locations.
Unlocked, you can choose preferred mobile carriers and data plans flexibly.
Nano SIM card is not included. Get a free trial data SIM card.
How Does Outdoor 4G SIM Router Work?
After inserting a SIM card, the outdoor 4G router connects to 3G 4G mobile networks and accesses broadband mobile internet. The dual SIM card design provides failover and backup redundancy.
Then share the internet connection via its WiFi hotspots and Ethernet for computers, tablets, smartphones, cameras, machines, and home appliances.
The indoor PoE injector provides wired Ethernet and supports reverse WAN input. It offers seamless integration with existing routers and local networks for backup mobile internet and expansion.
Router Firmware Features & Technical Services
Built on OpenWrt’s secure architecture, the outdoor router firmware features our dedicated modem integration and mobile internet optimization for a seamless plug-and-play experience. Check more on EV5X firmware releases.
Integrated advanced mobile modem protocols and command sets. Control two SIM cards, band lock, and 4G IP passthrough.
Supports OpenVPN, Wireguard, and Tailscale VPN tunnels. Access your router anywhere on our free cloud management platform.
Need help to configure your router? Our experts are ready for remote assistance! Custom firmware available for bulk orders.

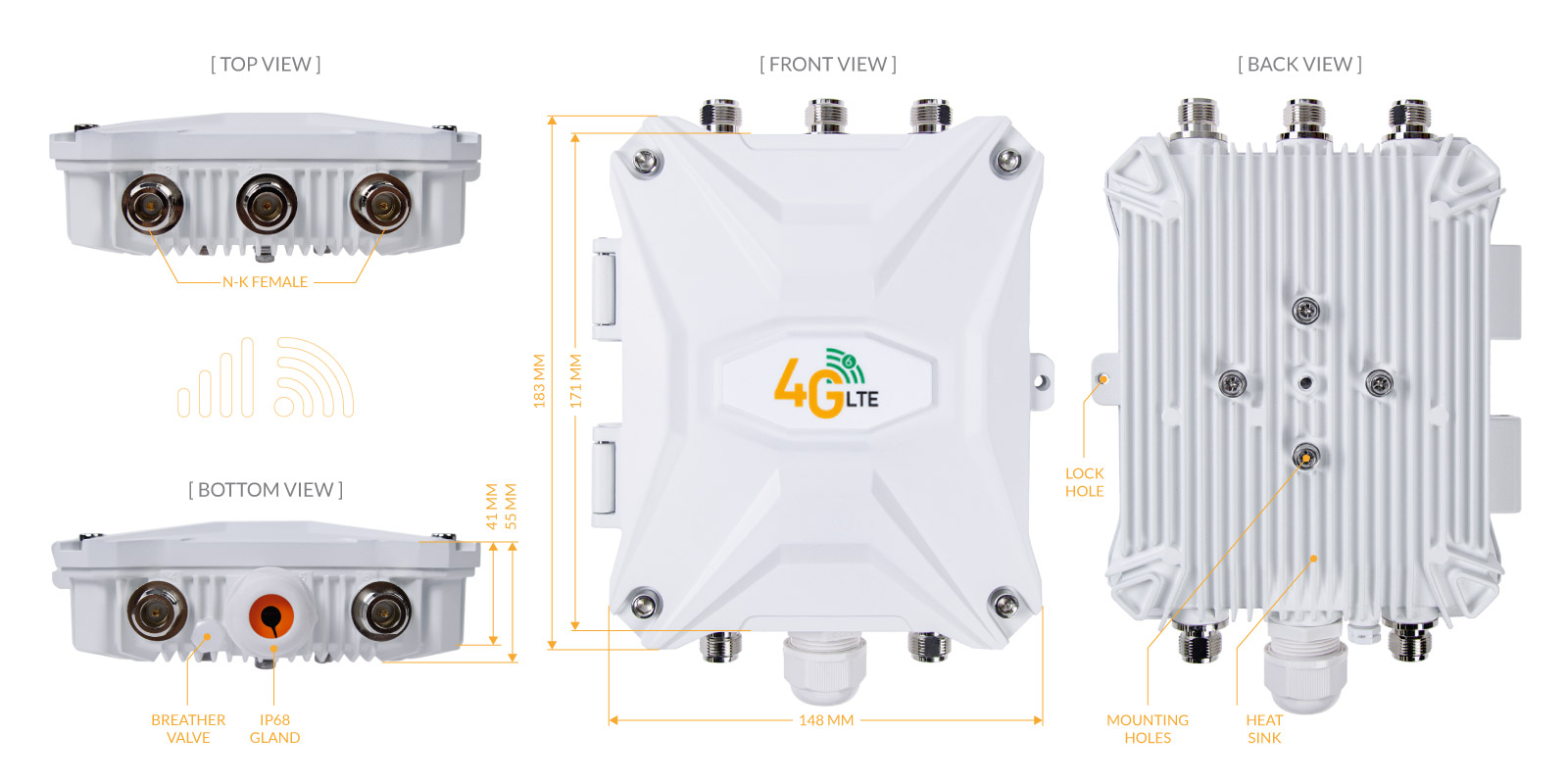

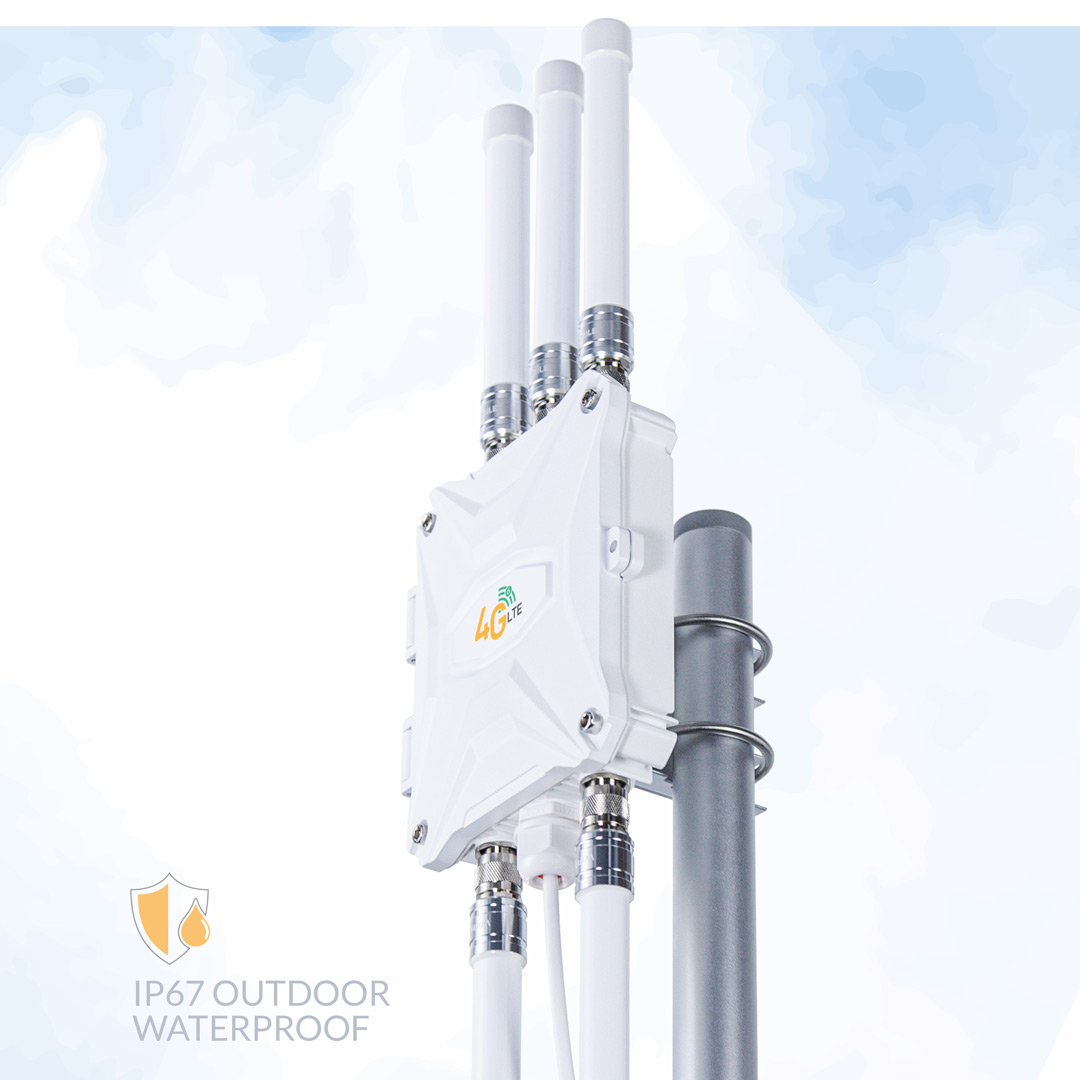

Rugged Outdoor Waterproof Protections
Designed for harsh outdoor uses, the IP67-certified outdoor waterproof enclosure is made of lightweight aluminum with anti-corrosion coating and high-efficiency backside heat sink.
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
Patented Enclosure
Exclusive outdoor waterproof enclosure

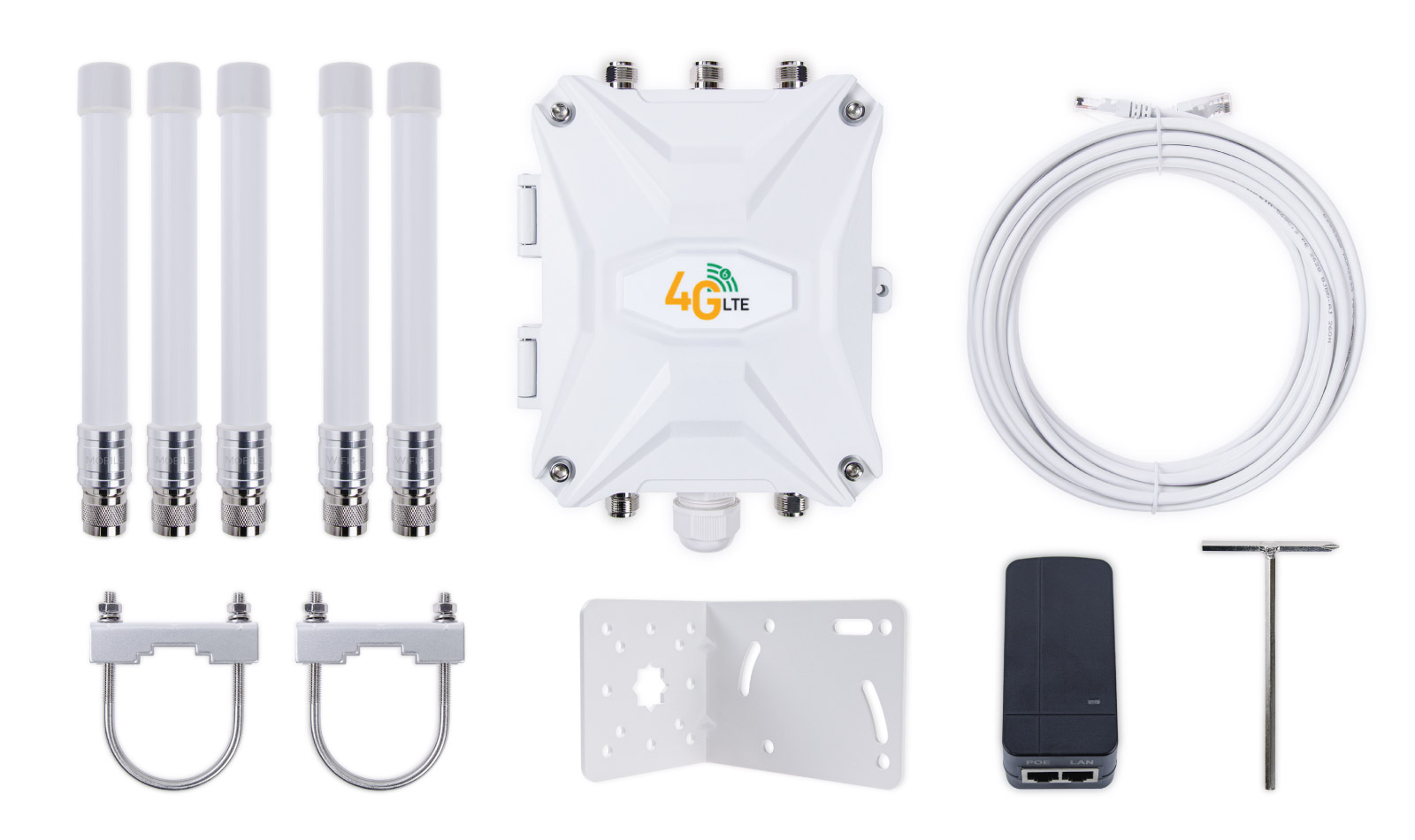

What's In the Package
OutdoorRouter aims to deliver reliable hardware along with an outstanding customer experience. The package contents below are backed by a 15-day money-back guarantee and a 1-year quality assurance. Contact us now for remote assistance with setting up, optimization, and troubleshooting.
Package Contents
1 x Outdoor 4G SIM Router
3 x FRP Mobile Antenna
2 x FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector
1 x Mounting Set & Tool
MIMO Antenna Array
The detachable MIMO antenna array consists of 3× mobile antennas and 2× WiFi antennas, connected to five low-loss N-K sockets. The default package includes five rugged outdoor omnidirectional FRP antennas.
Upgradable External Antennas
You can enhance mobile signal reception or WiFi coverage by replacing the default omni antennas with higher-gain mobile or WiFi antennas on the N-K female socket. Check more of the outdoor external antennas.
Flexible Power Sources
Standard PoE Extension
The outdoor 4G router includes a 52V PoE injector and a 10-meter LAN cable. You can power the router with 802.3af/at standard PoE switches and extend the LAN cable up to 50-300 meters with PoE extenders.
Alternative DC Power
The internal DC power socket accepts a wide-range 9~48V DC input for battery packs and AC-DC adapters, allowing power from AC electric outlets, vehicle power, solar power battery, and more.
Be the first to review “EU Outdoor 4G SIM Router WiFi6 LTE Modem”
You must be logged in to post a review.
EZR35-LTE Online Manual
outdoor.router.works/ezr35-lte
Live Demo
Contact us to acquire an online live demo
CAT16 Cellular Modem M.2 Key-B
| LTE Category: | Category 16 (3GPP E-UTRA Release 14) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66 |
| 4G TDD Bands: | B38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x 3x 4x 5x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 1.0 Gbps / UL 150 Mbps 3G HSDPA: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 3xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / Anatel / IFETEL / KC / JATE / TELEC / RCM / ICASA Europe: Vodafone / British Telekom / Swisscom | America: Vz / ATT / TMO | Australia: Telstra |
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x Mobile Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~48 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48V 0.5A.
