Outdoor 4G Cellular WiFi Router
Mobile Internet Router with CAT16 LTE-A Modem and Dual SIM Slots
Rugged Outdoor Waterproof Design with MIMO External Antennas
NEW
CAT16
CAT16
Outdoor Router CAT16 Cellular Modem WiFi 6 CPE
US$395
Deploying cost-effective cellular internet for industrial sites and rural areas, the outdoor cellular WiFi router features a CAT16 LTE-A modem and outstanding outdoor WiFi coverage. Unlocked for choosing your preferred carrier and data plans freely.
- Supports major USA and Canada 3G/4G cellular networks and global roaming.
- LTE-Advanced CAT16 cellular modem with a max download speed of 1 Gbps.
- 3000 Mbps dual-band WiFi6 hotspots with 100-300 meter long-range coverage.
- IP67 rugged waterproof protection for reliable use in harsh environments.
CAT16 4G Modem
LTE-Advanced CAT16 modem – max 1Gbps speed, supports North American 4G cellular bands.
Outdoor Wi-Fi 6 CPE
100-300 meter long-range outdoor Wi-Fi coverage. 3000Mbps Wi-Fi 6 hotspots for up to 200 clients.
Rugged Waterproof Router
IP67-rated enclosure withstands water and surges. Designed for reliable use in harsh environments.
Safety PoE Power w/ Ethernet
Standard 52V PoE injector with Gigabit Ethernet. Supports alternative 9~48Volt DC input.
Outdoor Cellular WiFi Internet Gateway
The outdoor cellular WiFi router operates as a standalone internet gateway, delivering cost-effective mobile internet with long-range wireless coverage for demanding outdoor environments and temporary deployments across the USA and Canada.
4G Modem and Dual SIM Slots
Featuring an unlocked CAT16 cellular modem and two SIM card slots, it supports global 3G and 4G frequency bands, including those in the USA and Canada, and delivers a max download speed of 1Gbps. The dual SIM card design provides failover and backup redundancy.
Outdoor Signals and Coverage
The external antennas avoid indoor interferences and capture the best outside mobile signals in your area. The high-power WiFi 6 chipset provides 100-300 meters of outdoor coverage.
Ethernet and Multi-WAN
Bridge LAN Ethernet to indoor PoE injector and supports reverse WAN input.
Rugged 4G WiFi Router for Challenging Conditions
Featuring IP67 waterproof protection, industrial-grade durability, and lighting protection, the rugged outdoor 4G WiFi router delivers stable cellular internet even in challenging conditions, including rain, snow, extreme heat, and storms. Designed for reliable long-term outdoor deployment, it is an ideal solution for broadband access, backup connectivity, remote monitoring, and mission-critical industrial applications.
Harsh Environments
Deliver reliable cellular internet for industrial uses, construction sites, and tough outdoor settings.
Outdoor Events
Use a SIM card to quickly deploy temporary internet for events, RVs, and short-term needs.
Remote Areas
Receive stronger outdoor 4G signals and extend internet access to remote and rural locations.
Unlocked design allows you to choose preferred mobile carriers and data plans freely.
Nano SIM card is not included. Get a free trial data SIM card.
How Does Outdoor 4G SIM Router Work?
Upon inserting a Nano SIM card and powering on, the 4G modem uses external antennas to connect to nearby cell towers and identify available LTE bands. It automatically enables MIMO and carrier aggregation to improve speed.
Then it converts cellular data to Wi-Fi and Ethernet signals and shares the internet with smartphones, tablets, switches, computers, and home appliances.
The indoor PoE injector provides wired Ethernet and supports reverse WAN input. It offers seamless integration with existing routers and local networks for backup mobile internet and expansion.
Router Firmware Features & Technical Services
Built on OpenWrt’s secure architecture, the outdoor router firmware features our dedicated modem integration and cellular internet optimization for a seamless plug-and-play experience. Check more on EV5X firmware releases.
Integrated advanced cellular modem protocols and command sets. Control two SIM cards, band lock, and 4G IP passthrough.
Supports OpenVPN, Wireguard, and Tailscale VPN tunnels. Access your router anywhere on our free cloud management platform.
Need help to configure your router? Our experts are ready for remote assistance! Custom firmware available for bulk orders.
Rugged Outdoor Waterproof Protections
Designed for harsh outdoor uses, the IP67-certified outdoor waterproof enclosure is made of lightweight aluminum with anti-corrosion coating and high-efficiency backside heat sink.
Patented Enclosure
Exclusive outdoor waterproof enclosure
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
What's In the Package
OutdoorRouter aims to deliver reliable hardware along with an outstanding customer experience. The package contents below are backed by a 15-day money-back guarantee and a 1-year quality assurance. Contact us now for remote assistance with setting up, optimization, and troubleshooting.

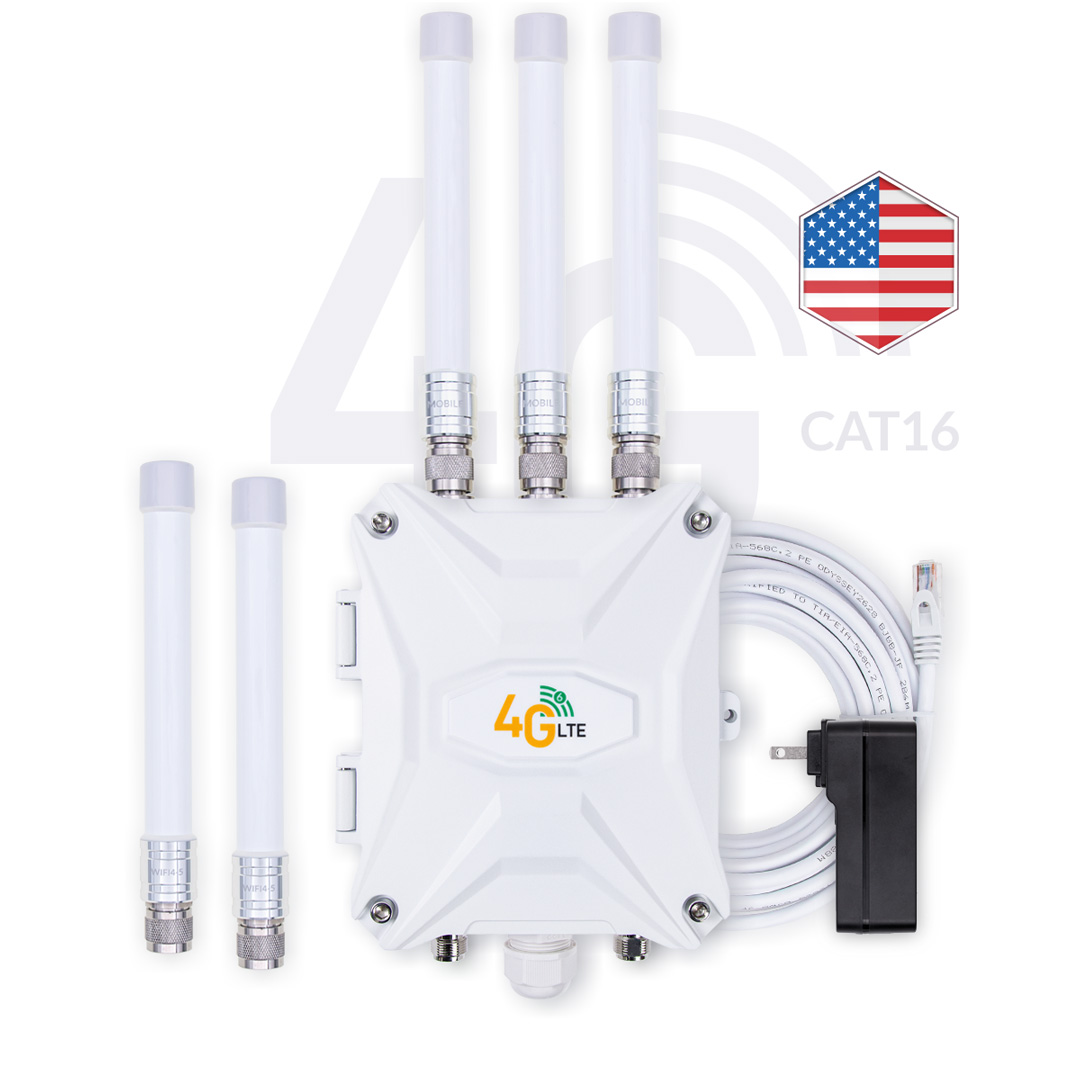

Package Contents
1 x Outdoor 4G WiFi Router
3 x FRP 4G Cellular Antenna
2 x FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x PoE Injector w/ US Plug
1 x Mounting Set & Tool
MIMO Antenna Array
The detachable MIMO antenna array consists of 3× 4G cellular antennas and 2× WiFi antennas, connected to five low-loss N-K sockets. The default package includes five rugged outdoor omnidirectional FRP antennas.
Upgradable External Antennas
You can enhance mobile signal reception or WiFi coverage by replacing the default omni antennas with higher-gain mobile or WiFi antennas on the N-K female socket. Check more of the outdoor external antennas.
Flexible Power Sources
Standard PoE Extension
The outdoor 4G router includes a 52V PoE injector and a 10-meter LAN cable. You can power the router with 802.3af/at standard PoE switches and extend the LAN cable up to 50-300 meters with PoE extenders.
Alternative DC Power
The internal DC power socket accepts a wide-range 9~48V DC input for battery packs and AC-DC adapters, allowing power from AC electric outlets, vehicle power, solar power battery, and more.
Be the first to review “Outdoor Router CAT16 Cellular Modem WiFi 6 CPE”
You must be logged in to post a review.
EZR35-LTE Online Manual
outdoor.router.works/ezr35-lte
Live Demo
Contact us to acquire an online live demo
CAT16 Cellular Modem M.2 Key-B
| LTE Category: | Category 16 (3GPP E-UTRA Release 14) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66 |
| 4G TDD Bands: | B38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x 3x 4x 5x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 1.0 Gbps / UL 150 Mbps 3G HSDPA: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 3xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / Anatel / IFETEL / KC / JATE / TELEC / RCM / ICASA Europe: Vodafone / British Telekom / Swisscom | America: Vz / ATT / TMO | Australia: Telstra |
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x Mobile Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~48 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48V 0.5A.
