Outdoor 4G WiFi Router UK Modem
Broadband mobile internet on the 4G CAT16 SIM card modem, max speed 1Gbps
External antennas, PoE Ethernet, and long-range outdoor Wi-Fi 6 coverage
NEW
CAT16
CAT16
UK Outdoor 4G WiFi 6 Router CAT16 SIM Modem
US$395
Designed to deliver cost-effective mobile internet to your home/office, the outdoor 4G WiFi router uses a CAT16 LTE modem and external antennas to access 4G mobile networks across the UK, even in harsh industrial sites.
The unlocked 4G WiFi outdoor CPE router offers flexible options for choosing your preferred mobile carrier and data plan.
- CAT16 4G LTE mobile modem with a max download speed of 1Gbps.
- Long-range 3000 Mbps outdoor Wi-Fi 6 hotspots reach 100-300 meters.
- Rugged IP67 waterproof router works stably in harsh environments.
UK 4G SIM Modem
CAT16 mobile modem with dual SIM card slots. Access 4G mobile networks across UK carriers.
Outdoor WiFi 3000 Mbps
Long-range outdoor Wi-Fi 6 coverage up to 100-300 meters on external antennas for 200+ terminals.
IP67 Waterproof Router
IP67-rated aluminium enclosure with surge protection for harsh outdoor environments.
Ethernet on PoE Injector
Powered by a 52V PoE injector with a Gigabit LAN Ethernet port. Supports optional DC power input.
Broadband UK 4G Internet Gateway
The outdoor 4G router operates as a standalone broadband mobile internet gateway with WiFi coverage and wired Ethernet connectivity. It aims to deliver cost-effective mobile internet in rural areas, challenging outdoor settings, and at temporary events.
Outdoor 4G Modem with Dual SIM Slots
Integrate an unlocked CAT16 LTE modem with global 3G/4G band support, which provides seamless access across UK mobile networks, including BT, EE, O2, Three, and Vodafone. Grand your rights to choose mobile carriers and data plans.
Go Outdoor – Better Signals & Coverage
Indoor 4G signals are often weak due to interference and obstructions. The 4G router placed outdoors captures optimal signals via external antennas, enabling long-range outdoor WiFi.
Rugged 4G WiFi Router for Challenging Conditions
Featuring IP67 waterproof protection, industrial-grade durability, and lighting protection, the rugged outdoor 4G WiFi router delivers stable mobile internet even in challenging conditions, including rain, snow, extreme heat, and storms. Designed for reliable long-term outdoor deployment, it is an ideal solution for broadband access, backup connectivity, remote monitoring, and mission-critical industrial applications.
Harsh Environments
Deploy reliable 4G WiFi internet for industrial sites, IoT fields, outdoor cameras, etc.
Outdoor Events
Set up temporary internet over mobile networks for RVs, boats, campsites, and outdoor events.
Remote & Rural Area
External antennas capture stronger outdoor 4G signals. No landlines needed.
Unlocked, you can choose preferred mobile carriers and data plans flexibly.
Nano SIM card is not included. Get a free trial data SIM card.
How Does Outdoor 4G SIM Router Work?
After inserting a SIM card, the outdoor router connects to one or more nearby 3G 4G mobile towers via its external mobile antennas. The alternative SIM card slot provides failover and backup redundancy.
Then, it shares the internet connection on its WiFi hotspots and Ethernet for smartphones, tablets, switches, computers, and home appliances.
The indoor PoE injector provides wired Ethernet and supports reverse WAN input. It offers seamless integration with existing routers and local networks for backup mobile internet and expansion.
Router Firmware Features & Technical Services
Built on OpenWrt’s secure architecture, the outdoor router firmware features our dedicated modem integration and mobile internet optimization for a seamless plug-and-play experience. Check more on EV5X firmware releases.
Integrated advanced mobile modem protocols and command sets. Control two SIM cards, band lock, and 4G IP passthrough.
Supports OpenVPN, Wireguard, and Tailscale VPN tunnels. Access your router anywhere on our free cloud management platform.
Need help to configure your router? Our experts are ready for remote assistance! Custom firmware available for bulk orders.
Rugged Outdoor Waterproof Protections
Designed for harsh outdoor uses, the IP67-certified outdoor waterproof enclosure is made of lightweight aluminum with anti-corrosion coating and high-efficiency backside heat sink.
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
Patented Enclosure
Exclusive outdoor waterproof enclosure
What's In the Package
OutdoorRouter aims to deliver reliable hardware along with an outstanding customer experience. The package contents below are backed by a 15-day money-back guarantee and a 1-year quality assurance. Contact us now for remote assistance with setting up, optimization, and troubleshooting.

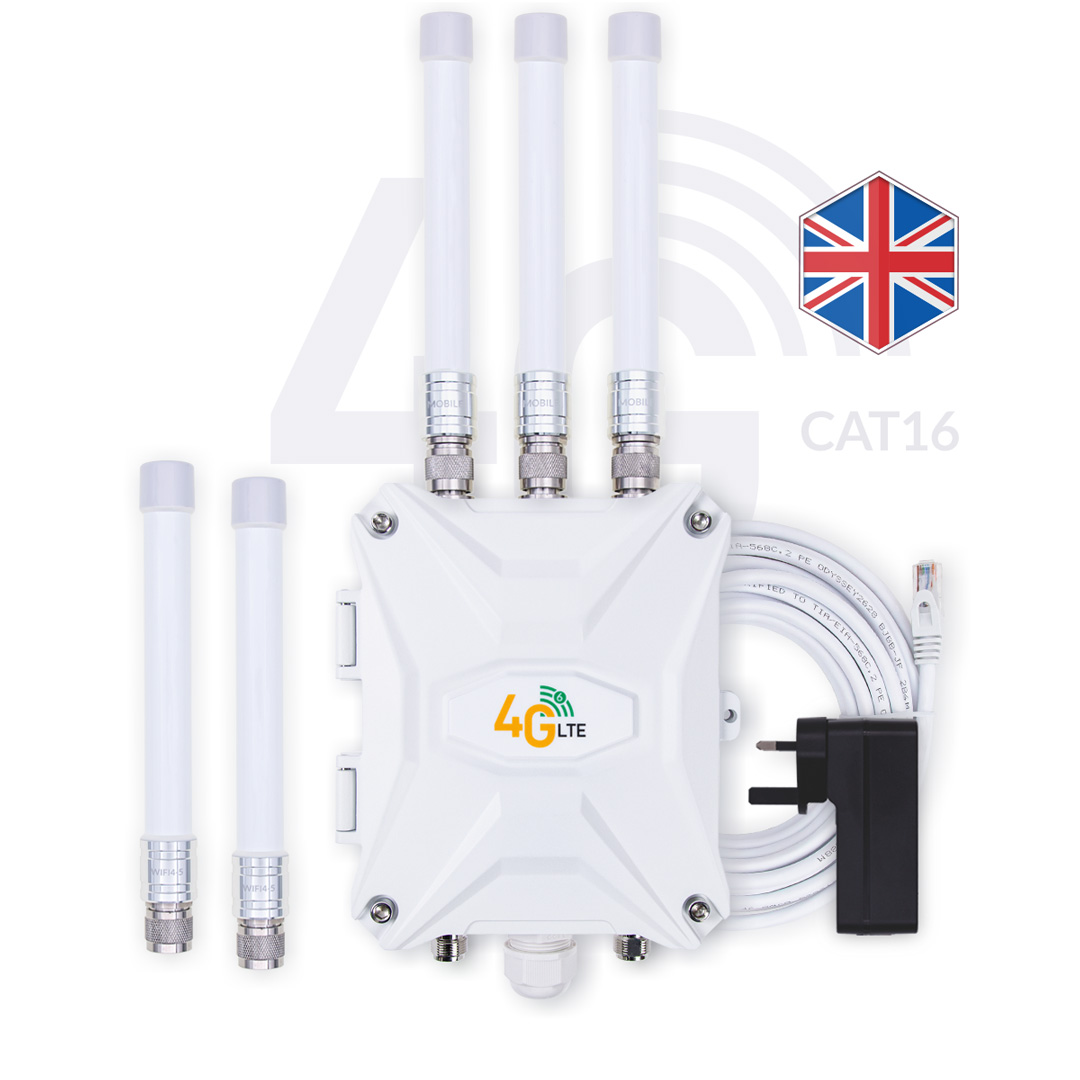

Package Contents
1 x Outdoor 4G WiFi Router
3 x FRP Mobile Antenna
2 x FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x PoE Injector UK Plug
1 x Mounting Set & Tool
MIMO Antenna Array
The detachable MIMO antenna array consists of 3× mobile antennas and 2× WiFi antennas, connected to five low-loss N-K sockets. The default package includes five rugged outdoor omnidirectional FRP antennas.
Upgradable External Antennas
You can enhance mobile signal reception or WiFi coverage by replacing the default omni antennas with higher-gain mobile or WiFi antennas on the N-K female socket. Check more of the outdoor external antennas.
Flexible Power Sources
Standard PoE Extension
The outdoor 4G router includes a 52V PoE injector and a 10-meter LAN cable. You can power the router with 802.3af/at standard PoE switches and extend the LAN cable up to 50-300 meters with PoE extenders.
Alternative DC Power
The internal DC power socket accepts a wide-range 9~48V DC input for battery packs and AC-DC adapters, allowing power from AC electric outlets, vehicle power, solar power battery, and more.
Be the first to review “UK Outdoor 4G WiFi 6 Router CAT16 SIM Modem”
You must be logged in to post a review.
EZR35-LTE Online Manual
outdoor.router.works/ezr35-lte
Live Demo
Contact us to acquire an online live demo
CAT16 Cellular Modem M.2 Key-B
| LTE Category: | Category 16 (3GPP E-UTRA Release 14) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66 |
| 4G TDD Bands: | B38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x 3x 4x 5x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 1.0 Gbps / UL 150 Mbps 3G HSDPA: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 3xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / Anatel / IFETEL / KC / JATE / TELEC / RCM / ICASA Europe: Vodafone / British Telekom / Swisscom | America: Vz / ATT / TMO | Australia: Telstra |
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x Mobile Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~48 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48V 0.5A.
