4G Outdoor WiFi Router European
2018 latest industrial-grade 4G Outdoor WiFi Router. IP67 waterproof! Receive 3G/4G mobile signals and provide high-speed Wi-Fi & Ethernet for rural areas, vehicle, vessel, etc.
• Industrial-grade 3G/4G broadband modem supports all mobile operators in Europe
• Powerful Wi-Fi booster covers 650~1600 Feet (200~500 meters) in radius
• Transmission speed up to 150Mbps, serve max 10 Wi-Fi users
• External high-gain 5/6dBi all-directional antennas
• PoE powered — easy installation and Ethernet connection
The 4G Outdoor WiFi Router provide flexible wireless internet service on various outdoor occasions and harsh environments for European customers.

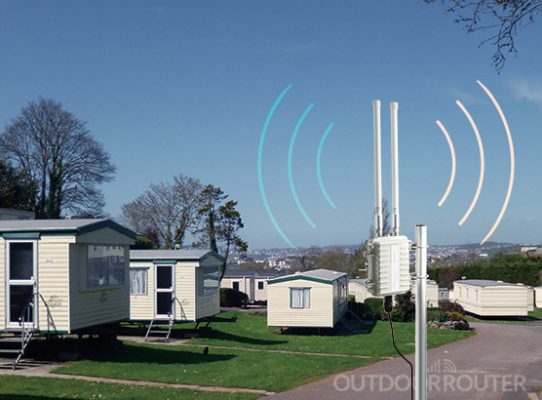

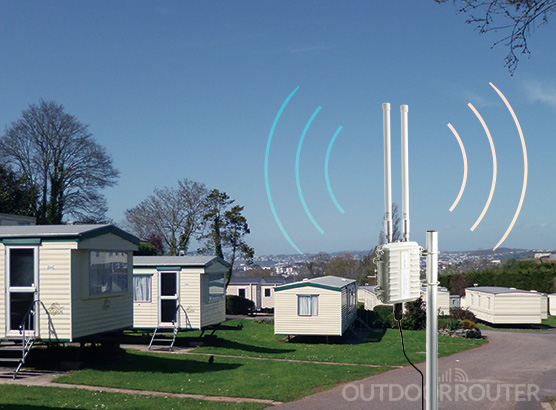

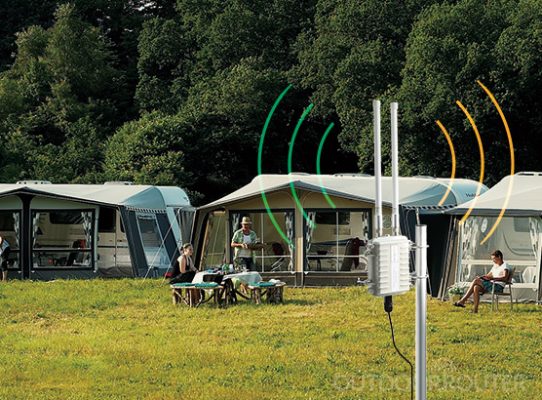

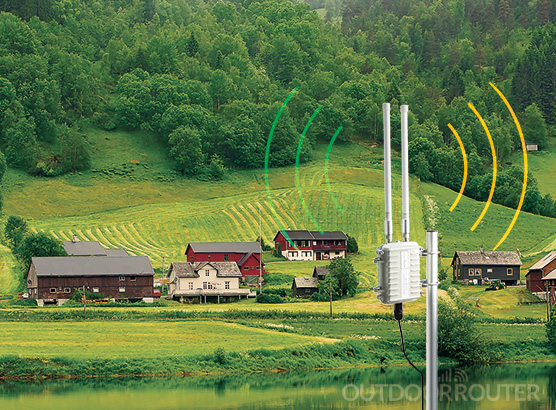

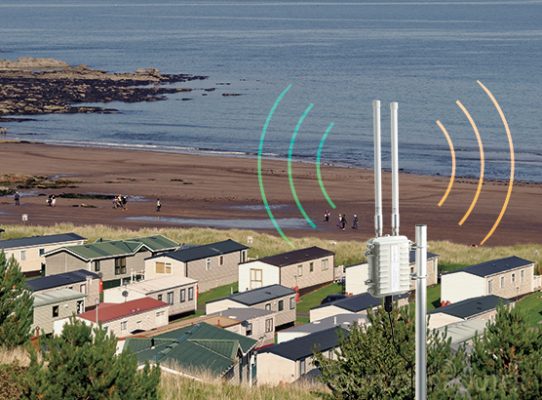

Remote Area: Park, Coast, Yacht, Caravan, Camping Site, Construction Site；

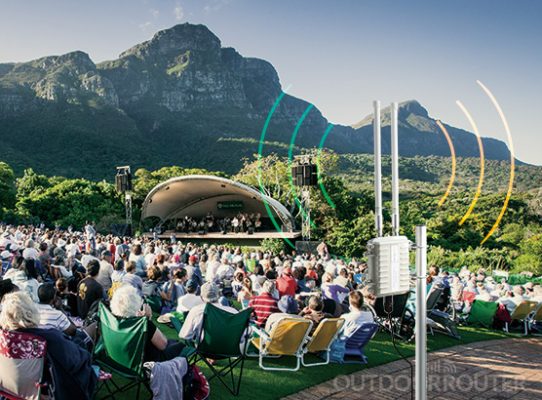

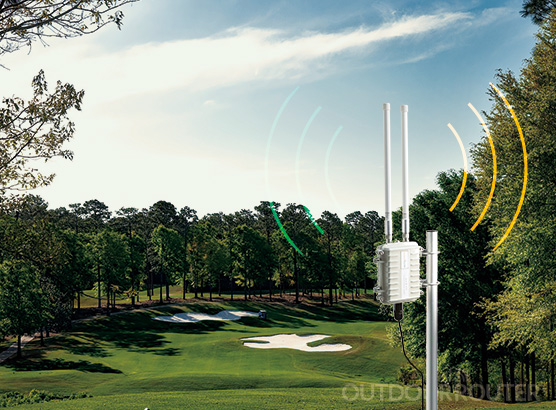

Outdoor Events: Golf Course, Outdoor Concert, Flea Market, Business Summit.

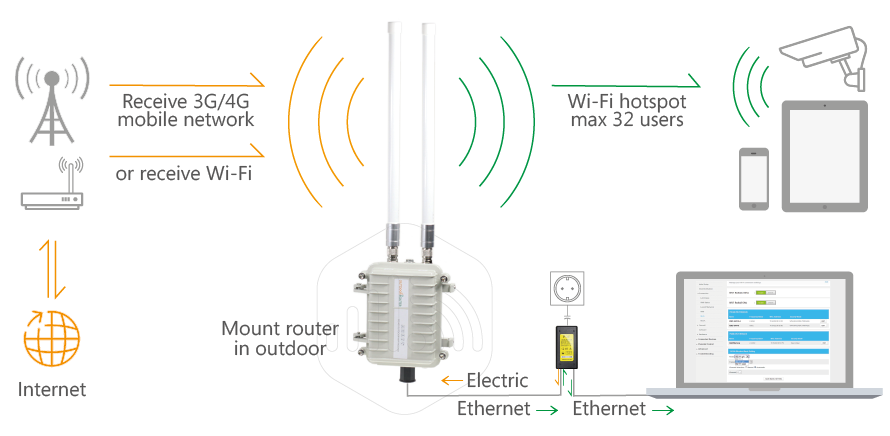

Build-in optimized 3G/4G modem for European mobile operators, the Outdoor WiFi Router brings high-performance cellular connectivity. Complying with the IEEE 802.11b/g/n standard, the Outdoor WiFi Router provides high-speed 150Mbps wireless and Ethernet connections.
With the powerful Wi-Fi extender chip, the Outdoor WiFi Router can boost wireless Wi-Fi signals and extend Wi-Fi cover up to 200~500 meters in radius.
Supports Ethernet connection, you can set up a local area network to connect more devices to the internet.
4G Outdoor WiFi Router Features
European Cellular Chipset
Mobile transmission rate up to 150mbps
Supported frequency bands:
∙ 4G FDD-LTE: B1/B2/B3/B8
∙ 4G TDD-LTE: B38/B39/B40/B41
∙ 3G WCDMA: 2100/900MHz
∙ 3G TD-SCDMA: B34/B39
Powerful Wi-Fi Booster
Wi-Fi transmission rate up to 150Mbps
Comply Wi-Fi standards 802.11b/g/n
Adjustable Wi-Fi output power 10/20/30dBm
Adjustable connections from 1~10 users
13 Wi-Fi channels
Encryption WPA/WPA2-PSK/WPA2 AES-PSK

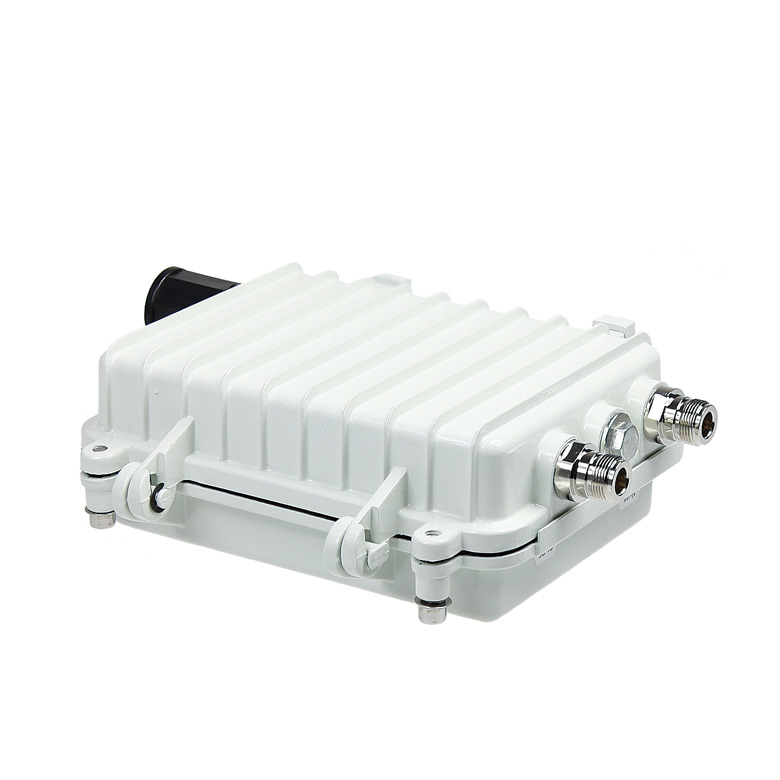

High Gain FRP Aerials
Dual fiber reinforced polymer (FRP) antennas
Vertical polarized high gain up to 5/6dBi
Wideband adaptive 698~2700MHz
PoE Power Source
24Volt Passive Power over Ethernet (PoE)
Ethernet connection via PoE injector
Outdoor 10-meter LAN cable
Designed for rugged deployments
IP67 hardened aluminum alloy case

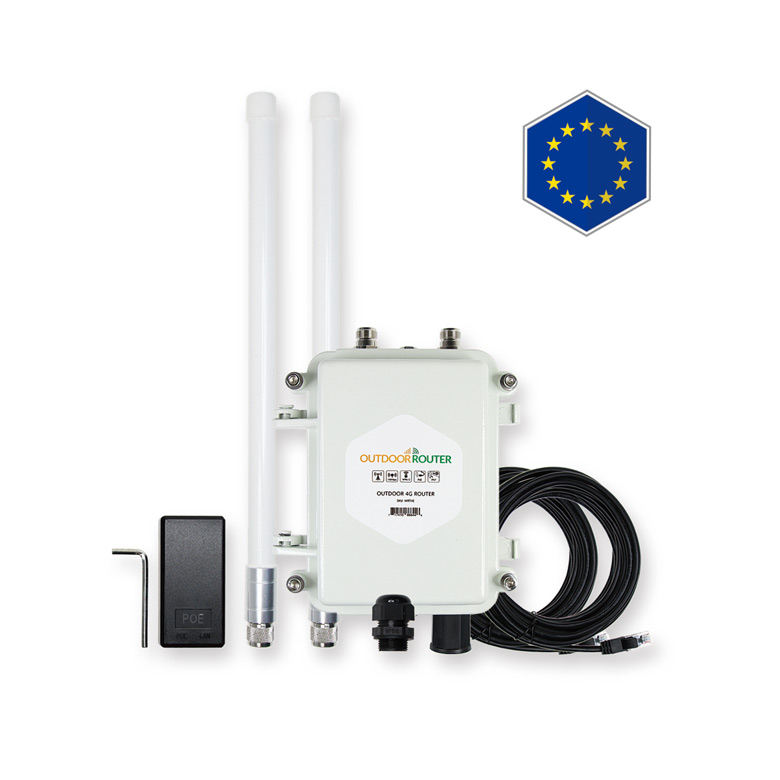

Package Contents - What Will You Get
1 x Outdoor WiFi Router European
2 x FRP Antenna
1 x 10-Meter LAN Cable
1 x 3-Meter LAN Cable
1 x 15V-1A PoE Injector
1 x Mounting Set & Tool
How to Use Outdoor Wi-Fi Router
Before installing the outdoor router, firstly using your mobile phone, walk around and look for a location that gets a good signal.

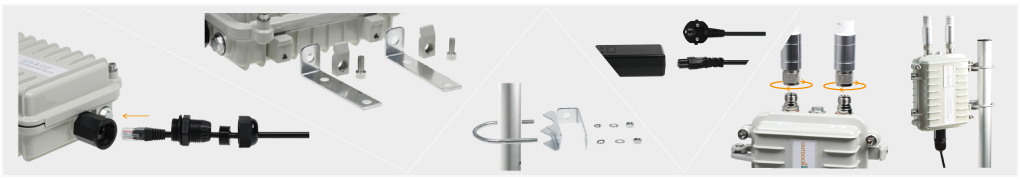

After that, insert SIM card, screw on antennas, connect to included LAN cable to PoE injector, and finally install Outdoor Wi-Fi router on the pole in outside area.
After connected to the electrical outlet, a Wi-Fi hotspot will be created within 20 seconds. Join the Wi-Fi network with the default password.
Open a web browser and type http://192.168.100.1 in the address bar, and use default admin password to log in. You will see a control panel which allows you to control a lot of settings including internet connection, Wi-Fi hotspot, VPN, data management, etc.
