Get known of the technical specification, electrical parameter, working frequency, upload speed, download speed, wireless network speed, advanced chipset, powerful Wi-Fi booster, external antenna, and even more of the 4G LTE Modem UK version.

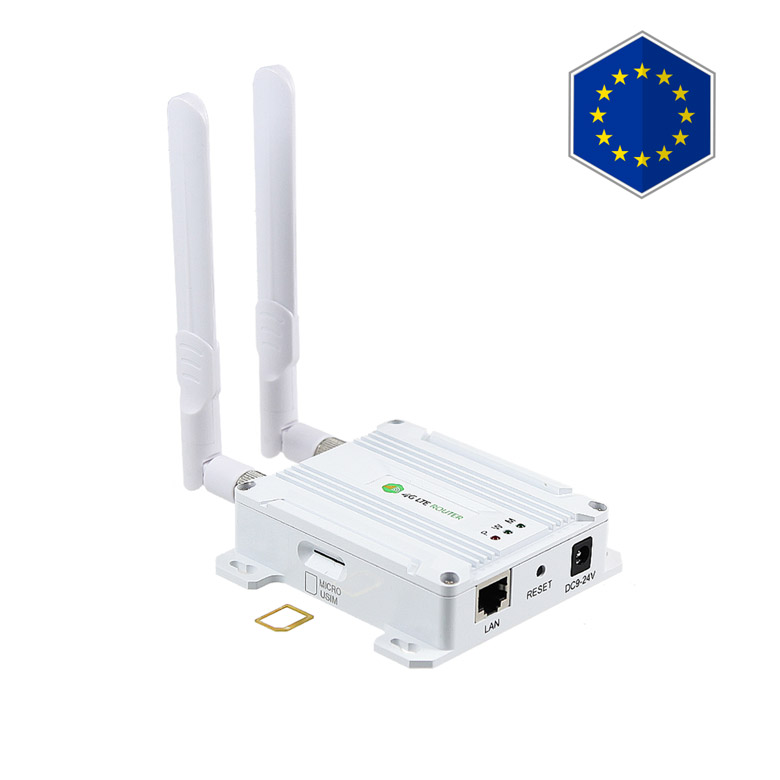

Mobile Broadband 4G Modem European
€168 – €181
European standard mobile broadband 4G modem integrated with 1x Ethernet port and 2x external omnidirectional antennas. Provide fast speed WiFi and Ethernet base on 3G/4G mobile networks. Indoor use non-waterproof.
◦ Industrial-grade 3G/4G broadband modem, supports European 3G/4G networks
◦ Powerful Wi-Fi booster covers 100~200 meters in radius
◦ Transmission speed up to 150Mbps, serve 10 Wi-Fi users
◦ External removable quant 3/4dBi antennas SMA connector
◦ DC 9~24Volt wide-range power supply input voltage
◦ Free Ship from Europe 3-Day Delivery.

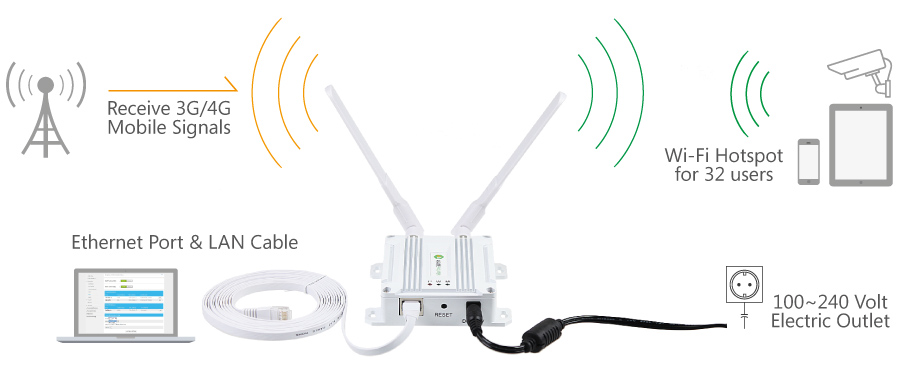

The European standard Broadband 4G Modem uses a prepaid SIM card to access the 3G/4G wireless cellular networks. The broadband 4G modem support all of the 3G/4G mobile operators in Europe. The industrial-grade broadband mobile modem brings you the fast-speed internet connections base on 3G/4G cellular networks on various occasions including home, office, rural area, vehicle, RV, boat and so on.
The Broadband 4G Modem provides high-speed 150Mbps WiFi and stable Ethernet connections. APN, VPN, and firewall functions are integrated in the firmware.
Featured by internal 30dBm (1Watt) Wi-Fi booster, the broadband 4G LTE modem is capable to serve 10 users in 100~200 meters radius. You can reduce the Wi-Fi output power to 20/27dBm or even turn off the Wi-Fi on the modem admin panel.
The broadband 4G modem has built-in an Ethernet port which allows you to set up a local area network (LAN) to connect more devices to the internet. The Ethernet port also allows to input internet signal to the 4G modem.
UK 4G Modem Features
Broadband Cellular Modem
Mobile transmission rate up to 150mbps
Support 2G/3G and 4G LTE mobile networks
Support all of the European mobile operators
∙ 4G FDD-LTE: B1/B3/B7/B8/B20
∙ 3G WCDMA: 2100/900MHz
∙ 2G GSM/GPRS/EDGE 900/1800MHz
DC9~24Volt Input Power
Default Power Supply AC100~240V
3-Meter Cat6 LAN Cable
Powerful Wi-Fi Booster
Wi-Fi transmission rate up to 150Mbps
Comply Wi-Fi standards 802.11b/g/n
Adjustable Wi-Fi output power 20/27/30dBm
Adjustable connections from 1~10 users
13 Wi-Fi channels
Encryption WPA/WPA2-PSK/WPA2 AES-PSK
Omnidirectional Quant Antennas
Removable SMA Connector
3dBi Gain – 1.8 V.S.W.R

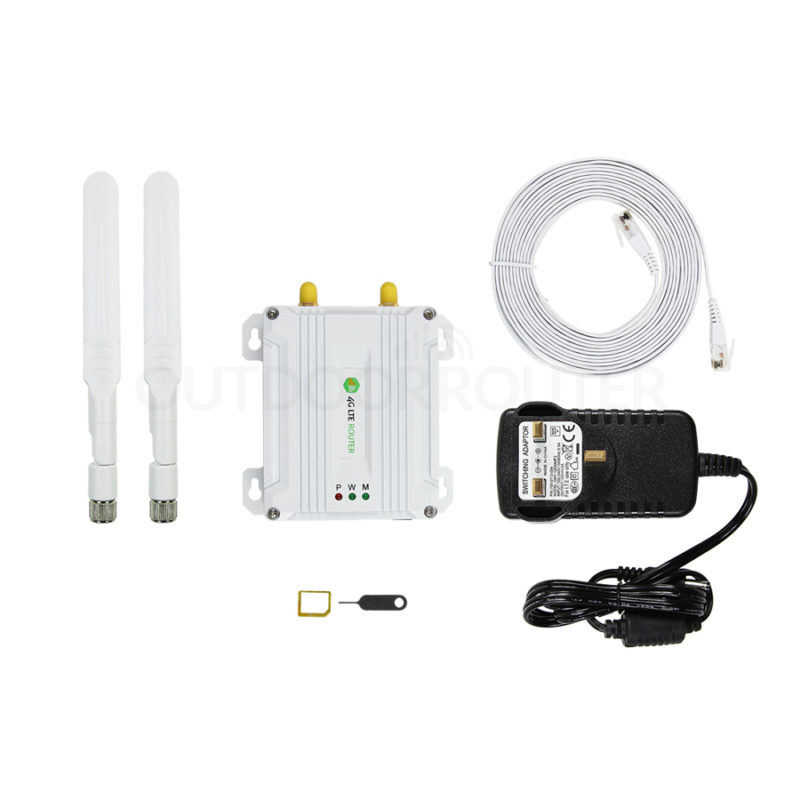

Package Contents - What Will You Get
1 x EU Broadband 4G Modem
2 x Quant Antenna
1 x 3-Meter LAN Cable
1 x 12V-2A Power Supply
1 x SIM Card Adapter
How to Use Broadband 4G Modem

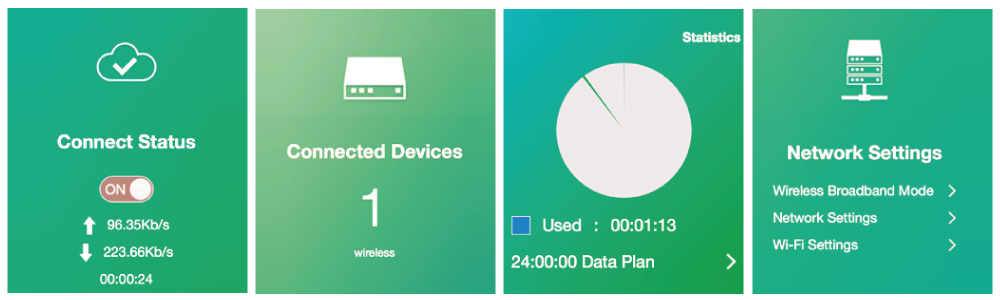

Open a web browser and type http://192.168.100.1 in the address bar, and use default admin password to log in. You will see a control panel which allows you to control a lot of settings including internet connection, Wi-Fi hotspot, VPN, data management, etc.Download User's Manual

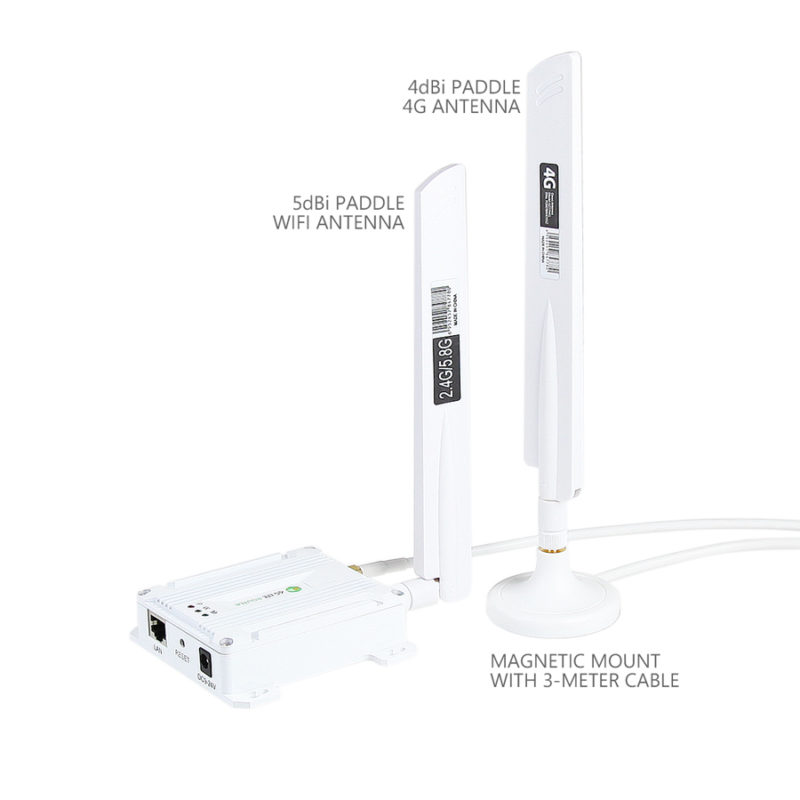

Upgrade 4G & Wi-Fi Antennas
The upgradable 4G & Wi-Fi Antenna kit comes with
1 x 4G paddle antenna
1 x Wi-Fi paddle antenna
1 x Magnetic mount with 3-meter coaxial cable.
Weak 4G Mobile Signals at Home?
If you have a weak 4G signal reception at home, please upgrade the default 3dBi 4G quant antenna to higher-gain 4dBi paddle antenna. The upgrade kit comes with a magnetic mount with 3-meter coaxial cable. With the magnetic mount, you can extend the 4G antenna to another location with better 4G signal receptions, such as window, balcony, attic, etc.
Enhance Wi-Fi Coverage?
The upgraded 5dBi Wi-Fi paddle antenna using ceramic PCB inside. Featured by 5dBi higher-gain and <1.8 V.S.W.R, the upgraded Wi-Fi paddle antenna provides stronger Wi-Fi signals and larger Wi-Fi coverage.
Broadband 4G Modem
The 4G Modem supports a variety of mobile networks, including 2G 3G and 4G. With years research and developing experiences, our 4G modem supports all of the 4G LTE cellular networks in the UK. You can use the SIM card from any mobile operators available in the UK on the 4G modem.
EU Standard – Mobile Frequencies
4G FDD-LTE Band 1: 2100MHz
4G FDD-LTE Band 3: 1800MHz
4G FDD-LTE Band 7: 2600MHz
4G FDD-LTE Band 8: 900MHz
4G FDD-LTE Band 20: 800MHz
4G TDD-LTE Band 40: 2300MHz
3G WCDMA: 2100/900MHz
3G TD-SCDMA: B34/B39
2G GSM/GPRS/EDGE: 900/1800MHz
Cellular Transmission Rate
4G FDD-LTE: UL 50Mbps DL 150Mbps
4G TDD-LTE: UL 50Mbps DL 150Mbps
3G HSPA+: UL 5.76Mbps DL 21Mbps
3G TD-SCDMA: UL 2.2Mbps DL 2.8Mbps
Wi-Fi standards: 802.11b/g/n
Wi-Fi channel: 13
Wi-Fi encrytion: Open/WPA-PSK/WPA2-PSK
Simultaneous connections: 1~32 Users
Wi-Fi transmission rate: 150Mbps
Output power: Adjustable 20/27/30dBm
Data management: By data or by time
Power consomption: < 2.5 Watt
Supports Wi-Fi hotspot relay function
Hide SSID available
Antenna: 3/4dBi quant antennas
USIM/SIM: Micro SIM card 12x15mm
Ports: 1 x 10/100 RJ45 ports
Power Supply: AC100~240V to 12V-1A
Working temperature: -10 to 70°C
Working humidity: 10%-90% RH
Storage temperature: -10 to 70°C
Support system: Built-in Firmware
Data modulation: OFDM
Windows XP Vista 7 8/8.1 MAC OS X 10.7+
1 x UK 4G Modem
2 x Omni Antenna
1 x 3-Meter LAN Cable
1 x 12-1A Power Supply
1 x SIM Card Adapter
