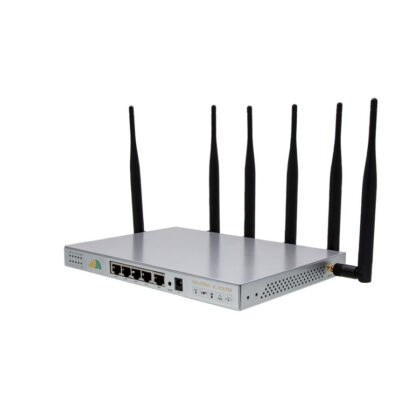

Commercial 4G MIMO Router AC 1200Mbps AT&T
USD $219
AT&T and T-Mobile approved cellular modem inside. Connect to AT&T or T-Mobile cellular 3G/4G networks with max 150Mbps download speed. Support 4G LTE Band 12. Powered by dual-core CPU and integrated with MIMO WiFi 2.4G and 5.8G. 1200Mbps WiFi speed and 4x 1Gbps LAN ports.
Commercial grade ezenos firmware inside.
◦ Operator approved Cat. 4 Quectel cellular modem
◦ Support AT&T T-Mobile LTE networks Band12/4/2
◦ Multiple connections 4G, WAN, PPPoE, and WiFi relay
◦ Powered by 880MHz dual-core MT7621A CPU
◦ 1200Mbps MIMO Wi-Fi on both of 2.4G and 5.8G
◦ Support 120 Wi-Fi users or 200 LAN connections
Commercial 4G LTE Router for your Business
4G modem enabled wireless router — serve massive concurrent users and always stay online.
AT&T T-Mobile Approved 4G Modem
Approved by AT&T and T-Mobile, connect to 4G LTE cellular network immediately. Also support 3G networks.
Work under 4G LTE band 2/4 and band 12 (700MHz).
Cat 4 cellular modem powered 4G router.
150Mbps download speed and 50Mbps upload speed.
Support 1000Mbps Landline and Wi-Fi Relay
Easily switch the connection priority.
Stay online – Multiple backup connections.
Support Massive Concurrent Users
120 users on Wi-Fi or 200 users over LAN Ethernet
1200Mbps Wi-Fi Networks
IEEE 802.11 a/b/n/g/ac standard 2.4G & 5.8G WiFi networks. Built-in Wi-Fi authorization system for guests.
4x1000Mbps LAN Ports
Integrated 1Gbps LAN Ethernet ports.
Support LAN switch and secondary router.
Commercial Grade ezenos Firmware Inside
ezenos – 4G Router Firmware Overview
A robust firmware update monthly!
Maintaining by 10+ professional programmers.
Optimized for 4G Cellular Internet
Real-time 4G status bar – Including:
Network / Carrier / Signal Strength / SIM Card
Using the latest 4G protocol – WWAN connection
30~50% faster speed than traditional 4G PPPoE
Flexible APN settings
Adjustable Internet connection priority
Select up to TWO backup internet connections
Take Full Control on Your Router
Config 4G WAN LAN / DNSDHCP / Dynamic DNS
Wi-Fi Settings
Wi-Fi mode, bandwidth, channel, output power
Wi-Fi SSID, Guest SSID, Wi-Fi adversting system
Wi-Fi relay and support 50ms Wi-Fi roaming
Network Security
Firewall: ARP binding, MAC filter, anti DDOS
VPN: PPTP L2TP and IPSec
Advanced Router Settings
Smart QoS control
Customize quality of service rules
1-click deny P2P, gaming, shopping, or video
Faster Internet for You
Multiple-dail over PPPoE landline
Remote Control the Router
NAT network penetration
Free cloud server
TURBO FAST SPEED
BROUGHT YOU BY ROCK SOLID HARDWARE
i. Dual-core MT7621A 800MHz CPU platform
ii. 512MB DDR3 memory
iii. 16MB SPI flash memory
iv. 3x Cooling fins inside
Package Contents - What Will You Get
Package Contents
1 x Commercial 4G LTE router AT&T version
6 x Removable whip antenna
1 x 1-Meter LAN cable
1 x 12V-1A power supply
1 x SIM card adapter
4G Router - Commercial Applications
Office / Home / Village
Enable 4G connection with a fast speed
Support massive concurrent connections
Shop / Hotel / Restaurant
Wi-Fi network for guests
Free Wi-Fi advertising system
Warehouse / Factory / School
Internet behavior control
Block gaming shopping video stream etc
Internet Cafe / Gaming App
1200Mbps Wi-Fi and 1Gbps LAN
Remote control external PoE and AC
SMA TYPE BASE CONNECTOR
Removable whip antennas
Upgrade 4G or Wi-Fi antennas freely
1~2 BARS ONLY?
Upgrade 4G antenna when you got a weak signal!
6/8dBi directional panel antenna
Dual-polarized MIMO antenna
Cat.4 Cellular Modem
| LTE Category: | CAT 4 |
| LTE Version: | 3GPP E-UTRA Release 10 |
| 4G Bands: | FDD LTE - B2/B4/B12 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | TD-SCDMA Download max 4.2Mbps / Upload max 2.2Mbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | North America (USA and Canada) |
| Certification: | FCC / PTCRB / IC / AT&T / T-Mobile |
Hardware
| CPU: | MediaTek MT7621A |
| Frequency: | Dual-core MIPS 1004Kc @880MHz |
| Memory: | DDR3 RAM 512MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Standard SIM card (25x15mm) |
| RJ45 port: | 1x 10/100/1000Mbps WAN 4x 10/100/1000Mbps LAN * Support VLAN and Auto MDI/MDIX |
| Indicator: | Power / system / 2.4G / 5.8G / 4G / WAN / LAN |
| Consumption: | < 12 Watt |
| Temperature: | Working: 0 to 40°C Storage: -40 to 70°C |
| Humidity: | 10%~90% RH |
| Power source: | DC 12Volt 2Amps (Φ55/21mm) |
| Measurement: | 235x165x23mm / 800gram |
Whip Antenna
| 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2.4G Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| 5.8G Wi-Fi antenna: | Frequency: 5750~5850MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ13×195mm |
| Connector: | SMA Male (2.4G RP-SMA) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R multiple-input multiple-output |
| Transmission rate: | 2.4GHz - 300Mbps 5.8GHz - 867Mbps |
| Frequency: | MT7603EN 2.4GHz - 2412~2484 MHz MT7612EN 5.8GHz - 5150~5725 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11a: 14±2dBm 802.11b: 18±2dBm 802.11g: 15±2dBm 802.11n: 15±2dBm 802.11ac: 14±2dBm |
| Sensitivity: | 802.11b ≦-76dBm 802.11g ≦-65dBm 802.11n ≦-61dBm 802.11a ≦-64dBm 802.11ac ≦-59dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 120 users on Wi-Fi or 200 users over LAN ethernet |
Software
| Firmware: | ezenos - License included |
| Log in: | IP address: 192.168.44.1 User name: admin Password: admin |
| WAN type: | 4G LTE, PPPoE, Dynamic IP, Static IP |
DOWNLOAD
