Unlocked 4G Mobile Router for UK
Supports UK mobile operators: BT EE O2 Three Vodafone etc

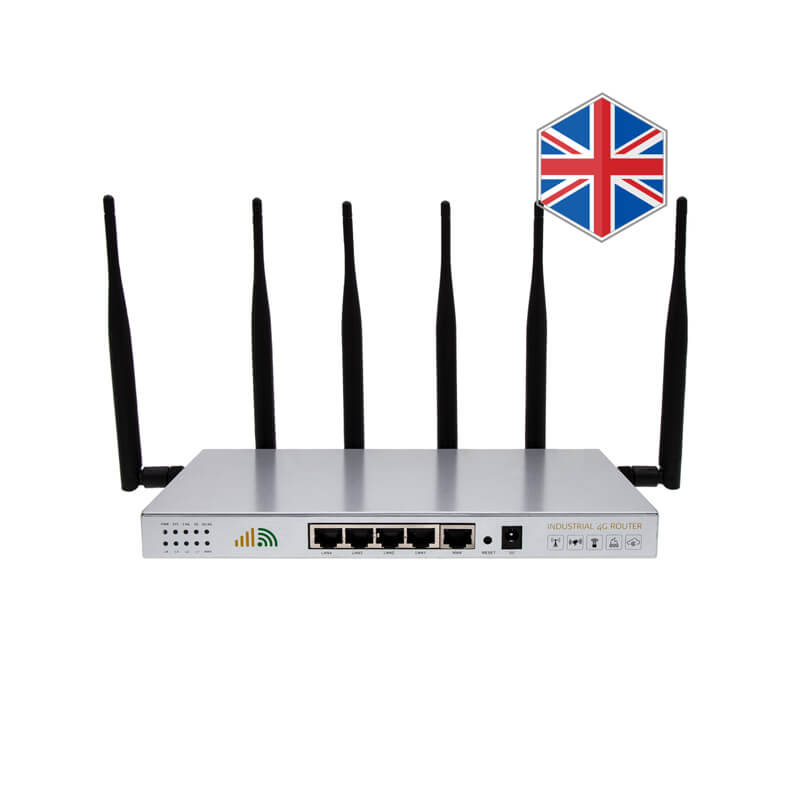

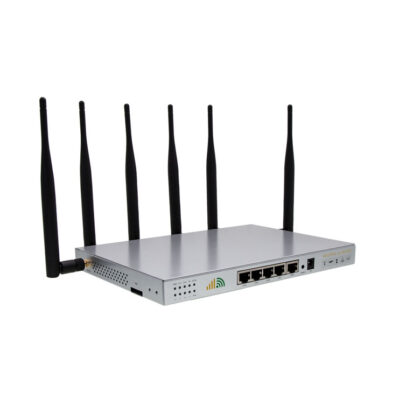

UK Mobile LTE Broadband 4G Router Cat 4
US$208
Built-in unlocked mobile 4G modem, the broadband 4G router supports most UK mobile operators.
It provides you fast speed 4G broadband internet and stable connection. Support landline as well and allows to set up multiple backup internet connections.
Easy to use, set up in a few seconds and get connected instantly.
◦ Fast speed modem download max 150Mbps
◦ Support all of UK mobile operators
◦ Dual-band MIMO Wi-Fi 2.4G and 5.8G
◦ 1200Mbps Wi-Fi and 4x 1Gbps LAN Ethernet
Out of stock
UK Broadband 4G LTE Router – Unlocked
Support all of UK Operators — Connect Massive concurrent users 120+
Unlocked 4G Broadband Modem
LTE category-4 modem inside, delivers 150Mbps downlink and 50Mbps uplink data rates.
Support 2G 3G and 4G LTE mobile networks. Work with all of UK mobile operators.
1Gbps Landline and Wi-Fi Relay
Switch the internet connection priority easily.
Stay online – Multiple backup connections.
Massive Concurrent Users
120 users on Wi-Fi or 200 users over LAN Ethernet
1200Mbps Wi-Fi Networks
Dual-band Wi-Fi networks on 2.4G and 5.8G.
4x 1Gbps LAN Ethernet
Integrated 1Gbps LAN Ethernet ports.
Support LAN switch and secondary router.
Well-designed ezenos Firmware
ezenos – 4G Router Firmware Overview
A robust firmware update monthly!
Maintaining by 10+ professional programmers.
Optimized for 4G Cellular Internet
Real-time 4G status bar – Including:
Network / Carrier / Signal Strength / SIM Card
Using the latest 4G protocol – WWAN connection
30~50% faster speed than traditional 4G PPPoE
Flexible APN settings
Adjustable Internet connection priority
Select up to TWO backup internet connections
Take Full Control on Your Router
Config 4G WAN LAN / DNSDHCP / Dynamic DNS
Wi-Fi Settings
Wi-Fi mode, bandwidth, channel, output power
Wi-Fi SSID, Guest SSID, Wi-Fi adversting system
Wi-Fi relay and support 50ms Wi-Fi roaming
Network Security
Firewall: ARP binding, MAC filter, anti DDOS
VPN: PPTP L2TP and IPSec
Advanced Router Settings
Smart QoS control
Customize quality of service rules
1-click deny P2P, gaming, shopping, or video
Faster Internet for You
Multiple-dail over PPPoE landline
Remote Control the Router
NAT network penetration
Free cloud server
TURBO FAST SPEED
BROUGHT YOU BY ROCK SOLID HARDWARE
i. Dual-core MT7621A 800MHz CPU platform
ii. 512MB DDR3 memory
iii. 16MB SPI flash memory
iv. 3x Cooling fins inside
Package Contents - What Will You Get
Package Contents
1 x UK broadband 4G router
6 x Removable whip antenna
1 x 1-Meter LAN cable
1 x 12V-1A power supply
1 x SIM card adapter
4G Router - Commercial Applications
Office / Home / Village
Enable 4G connection with a fast speed
Support massive concurrent connections
Shop / Hotel / Restaurant
Wi-Fi network for guests
Free Wi-Fi advertising system
Warehouse / Factory / School
Internet behavior control
Block gaming shopping video stream etc
Internet Cafe / Gaming App
1200Mbps Wi-Fi and 1Gbps LAN
Remote control external PoE and AC
SMA TYPE BASE CONNECTOR
Removable whip antennas
Upgrade 4G or Wi-Fi antennas freely
1~2 BARS ONLY?
Upgrade 4G antenna when you got a weak signal!
6/8dBi directional panel antenna
Dual-polarized MIMO antenna
Be the first to review “UK Mobile LTE Broadband 4G Router Cat 4”
You must be logged in to post a review.
Y4E & Y4U - Cat.4 Mobile Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20 Download max 150Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 130Mbps / Upload max 30Mbps |
| 3G Bands: | B1/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| 2G Bands: | GSM/EDGE: B3/B8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | Europe, Africa, Middle East, Korea, Thailand, India |
| Certification: | RCM/CE/Deutsche Telekom/ICASA/ FAC/GCF |
UK & European Standard Modem
Hardware
| CPU: | MediaTek MT7621A |
| Frequency: | Dual-core MIPS 1004Kc @880MHz |
| Memory: | DDR3 RAM 512MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Standard SIM card (25x15mm) |
| RJ45 port: | 1x 10/100/1000Mbps WAN 4x 10/100/1000Mbps LAN * Support VLAN and Auto MDI/MDIX |
| Indicator: | Power / system / 2.4G / 5.8G / 4G / WAN / LAN |
| Consumption: | < 12 Watt |
| Temperature: | Working: 0 to 40°C Storage: -40 to 70°C |
| Humidity: | 10%~90% RH |
| Power source: | DC 12Volt 2Amps (Φ55/21mm) |
| Measurement: | 235x165x23mm / 800gram |
Whip Antenna
| 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2.4G Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| 5.8G Wi-Fi antenna: | Frequency: 5750~5850MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ13×195mm |
| Connector: | SMA Male (2.4G RP-SMA) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R multiple-input multiple-output |
| Transmission rate: | 2.4GHz - 300Mbps 5.8GHz - 867Mbps |
| Frequency: | MT7603EN 2.4GHz - 2412~2484 MHz MT7612EN 5.8GHz - 5150~5725 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11a: 14±2dBm 802.11b: 18±2dBm 802.11g: 15±2dBm 802.11n: 15±2dBm 802.11ac: 14±2dBm |
| Sensitivity: | 802.11b ≦-76dBm 802.11g ≦-65dBm 802.11n ≦-61dBm 802.11a ≦-64dBm 802.11ac ≦-59dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 120 users on Wi-Fi or 200 users over LAN ethernet |
Software
| Firmware: | ezenos - License included |
| Log in: | IP address: 192.168.44.1 User name: admin Password: admin |
| WAN type: | 4G LTE, PPPoE, Dynamic IP, Static IP |
