Micro Nano SIM Card for Outdoor 4G Router

Outdoor 4G Router with SIM Card Slot

The 4G Router has built-in SIM card slot. You need to buy a new SIM card or use current SIM card on the 4G router. It support all of the SIM cards using on a smartphone.



Standards — Differences between SIM and USIM Cards

The SIM (Subscriber Identity Module) card is a memory chip used in cellular devices to denote a 2G GSM or CDMA applications.

The USIM (Universal Subscriber Identity Module) card is an upgraded SIM card for 3G and 4G services. USIM card provides enhanced features including higher-level security than SIM card. USIM card has downward compatibility to 2G GSM network.



Measurements — Different Sizes of SIM Cards

There are three different sizes of SIM cards, including Standard SIM, Micro SIM, and Nano SIM.

The Standard SIM card size is 1″ long by 0.6″ wide (25x15mm).
The Micro SIM card is half the size of standard SIM card. Measuring 0.6″ long by 0.5″ wide (15x12mm).
The Nano SIM card is 40% smaller than the micro-SIM card. Measuring 0.5″ long by 0.3″ wide (12.3×8.8mm).

* Both of SIM and USIM standard cards provides 3 different size cards.

Use standard SIM card for EZR30 MIMO router


EZR30 series 4G MIMO outdoor router requires to use the USIM standard SIM card. Measuring 1″ long by 0.6″ wide (25x15mm).

Make sure USIM card pins are facing up, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

Use standard SIM card for EZR20 indoor 4G routers


EZR20 series 4G indoor router requires to use the USIM standard SIM card. Measuring 1″ long by 0.6″ wide (25x15mm).

Make sure USIM card pins are facing up, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

Use standard SIM card for WRT4 series outdoor routers


WRT4 series 4G outdoor router requires to use the USIM standard Nano SIM card. Measuring 0.5″ long by 0.3″ wide (12.3×8.8mm).

When inserting the USIM card, its golden pins should face down, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

Outdoor 4G Router WiFi Booster V3

Free SIM Card Adapter Set

A set of SIM card adapter included in the 4G router with free. You can even modify the SIM card edge on the supplied sand paper.

Free SIM Card Adapter Kit

Fix the Router SIM Card Size

If you use the standard size or Micro size USIM card, need to modify the measurement with a SIM card cutter before using it in the outdoor router.

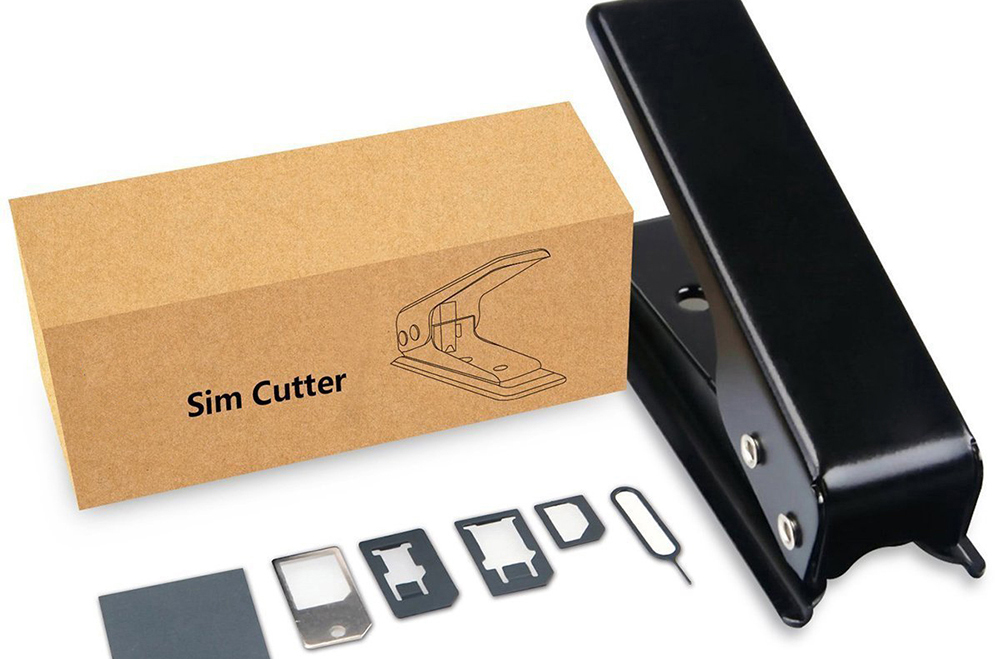

SIM Card Cutter and SIM Card Adapter
