Outdoor 4G Router SIM LTE Modem
CAT16 Mobile Modem LTE-Advanced Max 1Gbps – with Dual SIM Card Slots
IP67 Waterproof WiFi 6 Outdoor CPE Router with External Antennas
NEW
CAT16
CAT16
Outdoor 4G Router WiFi6 LTE-A Modem CAT16
US$395
Outdoor 4G router features dual SIM card slots and MIMO external antennas. Integrated mobile LTE modem and Wi-Fi 6 hotspots, it delivers stable mobile internet with up to 1 Gbps download speeds.
Helping you to deploy LTE internet with long-range WiFi for demanding applications and providing backup internet access to existing network.
Global 3G 4G Spectrums
LTE-Advanced CAT16 mobile modem inside with max 1Gbps speed. Global 3G 4G connectivity.
Outside WiFi CPE 3000M
100-300 meters long-distance wireless coverage. Dual-band 3000 Mbps speed for 200 clients.
Rugged Waterproof Protection
IP67 enclosure keeps out dust, water, and surge. Ensures reliable operation even in tough conditions.
Safety PoE Power w/ Ethernet
Standard 52V PoE injector with Gigabit Ethernet. Supports alternative 9~48Volt DC input.
Outdoor LTE WiFi Internet Gateway
The EZR35-LTE outdoor router works standalone and delivers cost-effective mobile internet with long-range wireless coverage for challenging outdoor settings and temporary occasions.
LTE-A Modem & External Antennas
Integrated CAT16 LTE-Advanced mobile modem with global 3G and 4G spectrum support, the outdoor router delivers a max 1Gbps download speed. The external 3×3 MIMO antennas avoid indoor interferences and capture the best outside mobile signals in your area.
Long-range Outdoor WiFi Coverage
The high-power WiFi 6 chipset provides 100 to 300 meters outdoor coverage in open area through MIMO antennas with 3000Mbps speed on both 2.4 GHz and 5.8 GHz bands.
Ethernet and Multi-WAN Router
Bridge LAN Ethernet to indoor PoE injector and supports reverse WAN input.
Rugged 4G LTE Router for Demanding Applications
With IP67 waterproof protection, industrial-grade durability, and built-in lightning protection, this outdoor 4G LTE router delivers stable worldwide mobile broadband connectivity in demanding environments exposed to rain, snow, extreme heat, and storms. Designed for reliable long-term outdoor deployment, it is an ideal solution for broadband access, backup connectivity, remote monitoring, and mission-critical industrial applications.
Harsh Environments
Deliver reliable LTE internet for industrial uses, construction sites, and tough outdoor settings.
Remote & Rural Area
Receive stronger outdoor LTE signals and extend internet access to remote and rural locations.
Outdoor Events
Use a SIM card to quickly deploy temporary internet for events, RVs, and short-term needs.
Note: SIM card is not included.
You can choose preferred mobile carriers and data plans flexibly.
Get a free trial data SIM card.
How Does Outdoor 4G Router Work?
After inserting a SIM card, the outdoor 4G router connects to 3G 4G mobile networks and accesses broadband mobile internet. The dual SIM card design provides failover and backup redundancy.
Then, it shares the internet connection on its WiFi hotspots and Ethernet for smartphones, tablets, switches, computers, and home appliances.
The indoor PoE injector provides wired Ethernet and supports reverse WAN input. It offers seamless integration with existing routers and local networks for backup mobile internet and expansion.
Firmware Features & Technical Services
Built on OpenWrt’s secure architecture, the outdoor router firmware features our dedicated modem integration and mobile internet optimization for a seamless plug-and-play experience. Check more on EV5X firmware releases.
Integrated advanced mobile modem protocols and command sets. Control two SIM cards, band lock, and 4G IP passthrough.
Supports OpenVPN, Wireguard, and Tailscale VPN tunnels. Access your router anywhere on our free cloud management platform.
Custom firmware available for your unique needs. Need help to configure your router? Our experts are ready for remote assistance!
Rugged Outdoor Waterproof Protections
Designed for harsh outdoor uses, the IP67-certified outdoor waterproof enclosure is made of lightweight aluminum with anti-corrosion coating and high-efficiency backside heat sink.
Patented Enclosure
Exclusive outdoor waterproof enclosure
IP67 Waterproof
Anti dust and water immersion
Outdoor Surge Protection
Common 6KV – Differential 1.5KV
Shipment Package Contents
OutdoorRouter aims to deliver reliable hardware along with an outstanding customer experience. The package contents below are backed by a 15-day money-back guarantee and a 1-year quality assurance. Contact us now for remote assistance with setting up, optimization, and troubleshooting.

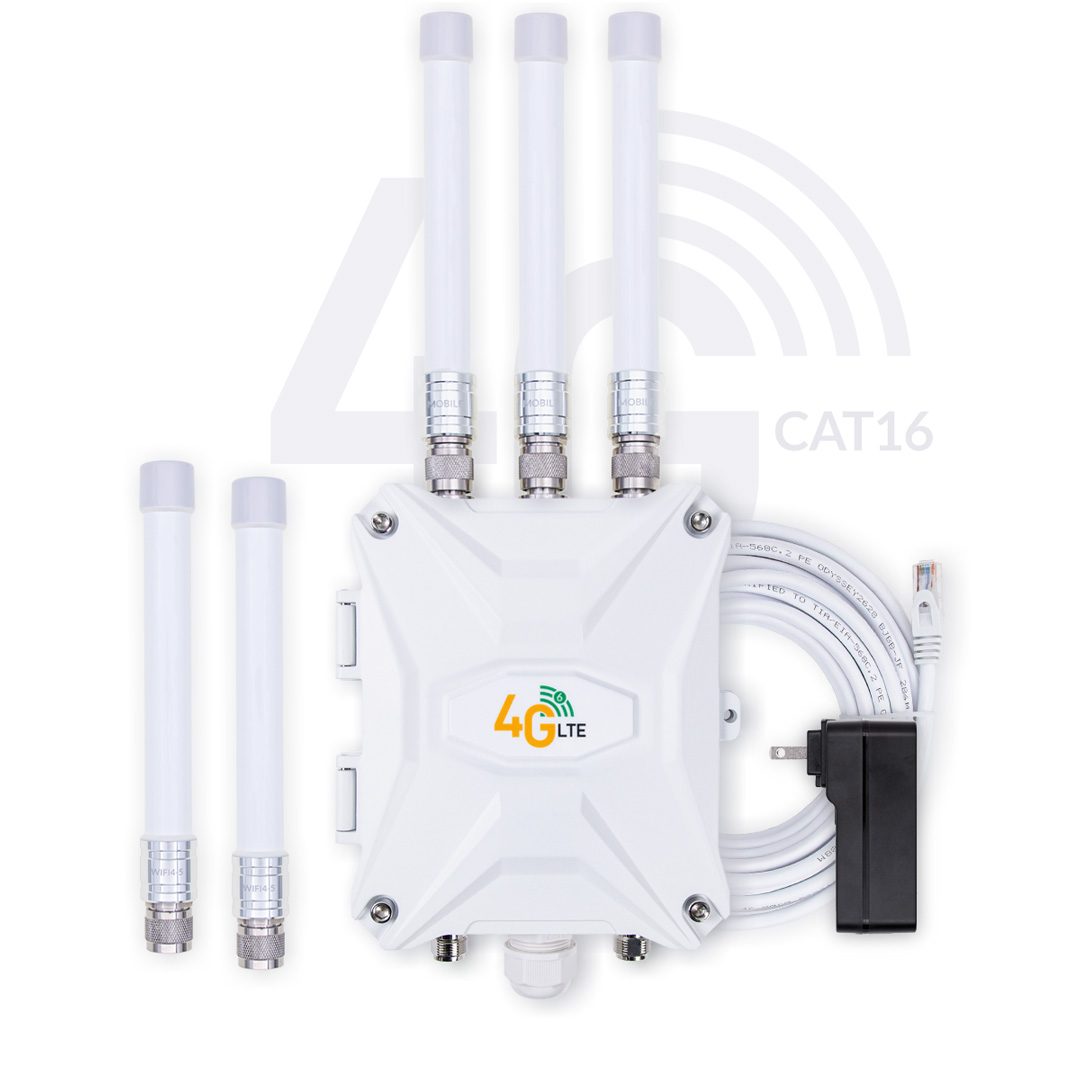

Package Contents
1 x Outdoor 4G Router CAT16
3 x FRP Mobile Antenna
2 x FRP WiFi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector
1 x Mounting Set & Tool
MIMO Antenna Array
The detachable antenna array consist of 3×3 MIMO mobile antennas and 2×2 MIMO WiFi antennas, connected to five low-loss N-K sockets. The default package includes five rugged outdoor omnidirectional FRP antennas.
Upgradable External Antennas
You can enhance mobile signal reception or WiFi coverage by replacing the default omni antennas with higher-gain mobile or WiFi antennas on the N-K female socket. Check more of the outdoor external antennas.
Flexible Power Sources
Standard PoE Extension
The outdoor 4G router includes a 52V PoE injector and a 10-meter LAN cable. You can power the router with 802.3af/at standard PoE switches and extend the LAN cable up to 50-300 meters with PoE extenders.
Alternative DC Power
The internal DC power socket accepts a wide-range 9~48V DC input for battery packs and AC-DC adapters, allowing power from AC electric outlets, vehicle power, solar power battery, and more.
Be the first to review “Outdoor 4G Router WiFi6 LTE-A Modem CAT16”
You must be logged in to post a review.
EZR35-LTE Online Manual
outdoor.router.works/ezr35-lte
Live Demo
Contact us to acquire an online live demo
CAT16 Cellular Modem M.2 Key-B
| LTE Category: | Category 16 (3GPP E-UTRA Release 14) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66 |
| 4G TDD Bands: | B38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x 3x 4x 5x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 1.0 Gbps / UL 150 Mbps 3G HSDPA: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 3xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / Anatel / IFETEL / KC / JATE / TELEC / RCM / ICASA Europe: Vodafone / British Telekom / Swisscom | America: Vz / ATT / TMO | Australia: Telstra |
Powered by EZEN5X Motherboard
| Chipset: | SoC – Qualcomm IPQ5018 RF – Qualcomm QCN6102 FEM |
| Clock Speed: | Quad-core 1.80GHz |
| Memory: | DDR3 512 MB |
| Flash: | NAND 128MB |
| RJ45 Port: | 1x 1000 Mbps |
| Modem Socket: | M.2 Key-B |
| SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
| Indicator: | System, Power, Mobile, WiFi |
| Buttons: | Reset |
| Temperature: | Working -40 to +80 °C Storage -45 to +105 °C |
| Humidity: | 5% – 95% RH |
Wi-Fi 6 Hotspots AX3000
| Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
| Speed Rate: | 574 Mbps | 2402 Mbps |
| Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
| Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
| Output Power: | 26 ± 2 dBm | 24 ± 2 dBm |
| Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
| Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
| Modulation: | Max 1024-QAM | |
| MIMO: | 2x MIMO 2T2R | |
| Wi-Fi Efficiency: | SU/MU-MIMO, OFDMA, MU-OFDMA | |
Omni RF Antennas
| 3 x Mobile Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N-Male with center pin |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector with Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52V ⎓ 0.5A |
| LAN Cable: | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~48 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. AC to DC power adapter is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48V 0.5A.
