APN Settings for Outdoor 4G Router

APN, short of Access Point Name, is the gateway to access the mobile network. The latest firmware could automatically adapt to the mobile network. Some carriers or some data plans require to use specific APN addresses. Please follow the below steps to set up APN parameters.

Firstly open the web browser and log in to the router admin at 192.168.30.1. Then go to “Network > Interfaces”.

On the interface overview page, click the “Edit” button on the row of Mobile (wwan).

4G Mobile Router - Network - Interface Overview

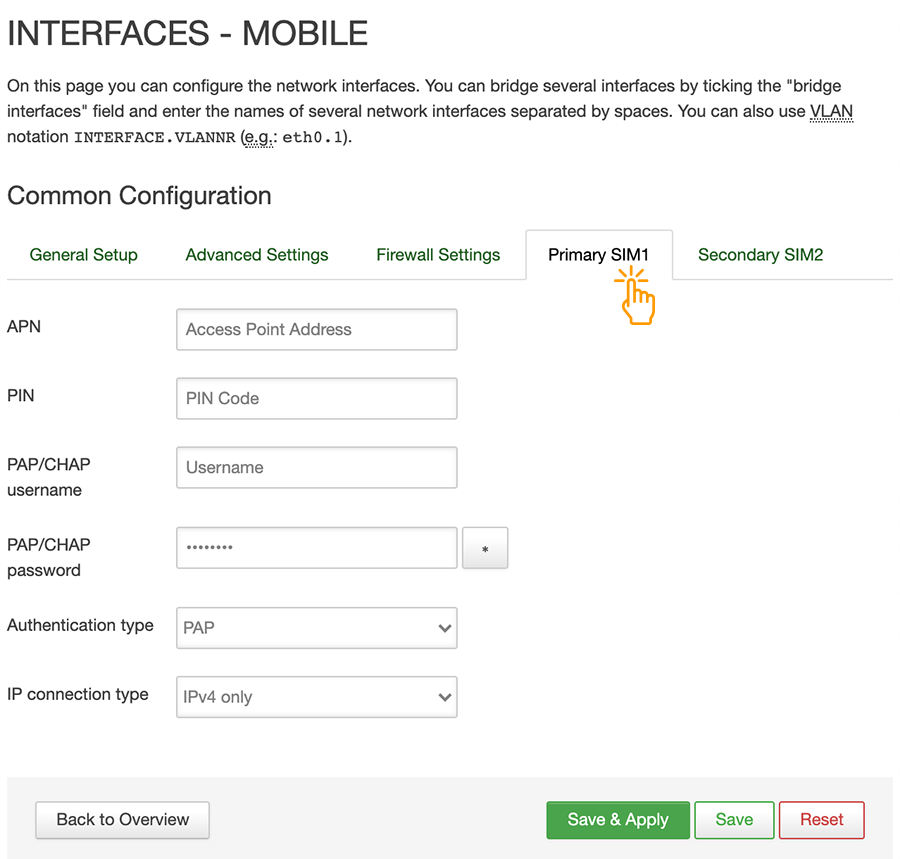

The 3X series routers have dual-SIM slots. We need to set up APNs for each SIM card separately. Click the tab of “Primary SIM1” to set APN for the SIM card in the 1st slot.

APN: The APN gateway address
PIN:
PIN code of SIM card
*Usually non-required
Username: Username
Password: Password
Authentication type: Usually use PAP
IP connection type: Usually use IPv4 only

Click “Save & Apply” button on the bottom right corner to apply the new settings. It will jump back to the interface overview page.

The router takes a few seconds reconnect. We suggest to reboot the router after changed the APN parameters.

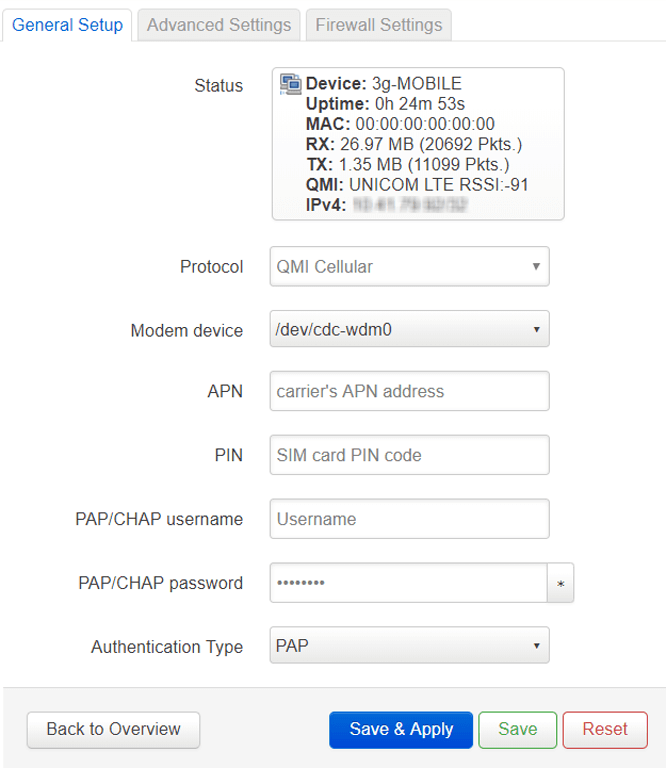

Set APN Address PIN for 4G Router SIM1

Log in the router at 192.168.30.1.
Go to Network > Interface.
On the row of Mobile, click the Edit button.

Input APN under the tab of “General Setup”.

APN: the APN gateway address
PIN: PIN code of SIM card *Usually non-required
PAP/CHAP username: Username
PAP/CHAP password: Password
Dial number: For 4G-PPP protocol only

Click “Save & Apply” to apply the new APN parameters. Then back to Network / Interface to check the updated status of the mobile interface. It usually takes a few seconds to re-setup the mobile internet connection.



APN Settings for Different Mobile Carriers

You can use the below default APN parameters on the mobile interface.
The mobile carrier might use different APN addresses depend on the data plan.

If the below APN does not work, please contact your mobile carrier to verify the latest APN parameters.

Here are the internet APN settings for some of the UK mobile phone operators.

GiffGaff APN settings

APN: giffgaff.com
Authentication type: PAP
Username:  giffgaff
Password:  password

O2 APN settings

APN: mobile.o2.co.uk
Authentication type: PAP
Username:  o2web
Password:  password

Tesco Mobile APN settings

APN: prepay.tesco-mobile.com
Authentication type: PAP
Username:  tescowap
Password:  password

Three APN settings

APN: three.co.uk
Authentication type: PAP
Username:  <Leave it blank>
Password:  <Leave it blank>

Virgin Mobile APN settings

APN: mob.asm.net
Authentication type: PAP
Username:  <Leave it blank>
Password:  <Leave it blank>

Virgin Mobile APN settings

APN: goto.virginmobile.uk
Authentication type: PAP
Username:  user
Password:  <Not Set>

EE and Vodafone can only use the PPP protocol in some rural areas. Please refer to the protocol guidance to switch protocol for the mobile interface.

EE APN settings

APN: everywhere
Authentication type: PAP
Username:  eesecure
Password:  secure

Vodafone APN settings

APN: internet (or) wap.vodafone.co.uk
Authentication type: PAP
Username:  wap
Password:  wap

Here are the internet APN settings for some of the Austrian mobile phone operators.

T-Mobile Austria APN settings

For private users
APN: internet.t-mobile.at
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

For business class data plans
APN: business.gprsinternet
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

Please switch to the PPP protocol if the default QMI protocol does not work.

Here are the internet APN settings for some of the Italian mobile phone operators.

Vodafone Italy APN settings

APN: web.omnitel.it
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

Please switch to the PPP protocol if the default QMI protocol does not work.

Windtre Italy APN settings

APN: Internet.it
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

Here are the internet APN settings for some of the USA mobile phone operators.

AT&T APN settings

APN: broadband
Authentication type: PAP
Username:  <leave in blank>
Password:  <leave in blank>

T-Mobile APN settings

APN: fast.t-mobile.com
Authentication type: PAP
Username: <leave in blank>
Password: <leave in blank>

Sprint APN settings

APN: cinet.spcs
Authentication type: PAP
Username: <leave in blank>
Password: <leave in blank>

Verizon APN settings

APN: vzwinternet
Authentication type: PAP
Username:  <leave in blank>
Password:  <leave in blank>

Visible APN settings

APN: vsbinternet
Authentication type: <leave in blank>
Username:  <leave in blank>
Password:  <leave in blank>

Twilio APN settings

APN: wireless.twilio.com
Authentication type: PAP
Username:  <leave in blank>
Password:  <leave in blank>

Ting X3 APN settings

APN: wireless.dish.com (or tethering.dish.com)
Authentication type: PAP
Username:  <leave in blank>
Password:  <leave in blank>

Ting X1 APN settings

APN: wholesale
Authentication type: PAP
Username:  <leave in blank>
Password:  <leave in blank>

Here are the internet APN settings for some of the mobile phone operators in Canada.

Telus APN settings

APN:  isp.telus.com
Authentication:
Username:
Password:

Bell Mobile APN settings

APN:  pda.bell.ca
Authentication:
Username:
Password:

Rogers APN settings

APN:  internet.com
Authentication:
Username:  wapuser1
Password:  wap

Fido Mobile APN settings

APN:  internet.fido.ca
Authentication:
Username:  fido
Password:  fido

Eastlink APN settings

APN: wisp.mobi.eastlink.sa
Authentication:
Username:
Password:

Freedom Mobile APN settings

APN:  internet.freedommobie.ca
Authentication:
Username:  wapuser1
Password:  wap

Chatr Mobile APN settings

APN: chatrweb.apn
Authentication:
Username:  wapuser1
Password:  wap

SaskTel Mobile APN settings

APN:  inet.stm.sk.ca
Authentication:
Username:
Password:

Koodo Mobile APN settings

APN:  sp.koodo.com
Authentication:
Username:
Password:

Virgin Mobile APN settings

APN:  inet.bell.ca
Authentication:
Username:
Password:

MTS APN settings

APN:  sp.mts
Authentication:
Username:
Password:

VideoTron APN settings

APN: media.videotron
Authentication:
Username:
Password:

Here are the internet APN settings for some of the Australian mobile phone operators.

Telstra APN settings

APN: telstra.iph
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

Vodafone APN settings

APN: live.vodafone.com
Authentication type: PAP
Username: <Leave in Blank>
Password: <Leave in Blank>

Optus APN settings

Please use the Optus SIM card with the Broadband plan. Optus prevents a mobile plan SIM card from using on a router.

APN: connect
Authentication type: PAP
Username:  <Leave in Blank>
Password:  <Leave in Blank>
